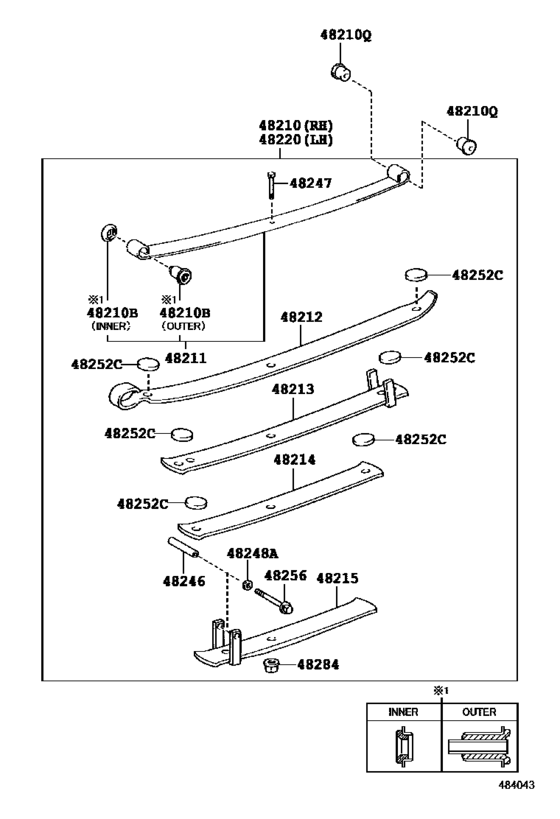

Rear Spring & Shock Absorber ([01.2007 - 07.2009] 5-LEAF (0701-0907)FZJ71,HZJ71) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60B20
Spring Assy, Rear Rh
[07.2009 - 08.2016] HZJ71..RHD MAIN 4+HELPER 1-LEAF |
48210-60B20 |
— | ||
|
48210
|
48210
48210-6A010
Spring Assy, Rear Rh
[01.2007 - 07.2009] FZJ71,HZJ71..RHD 5-LEAF |
48210-6A010 |
— | ||
|
48210B
|
48210B
90389-14056 Bush(For Rear Spring Pin)[01.2007 - 07.2009] FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
90389-14056 |
US $16.13 |
||
|
48210B
|
48210B
90389-22003 Bush(For Rear Spring Pin)[01.2007 - 07.2009] FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
90389-22003 |
US $6.45 |
||
|
48210Q
|
48210Q
90385-18021 Bush(For Rear Spring Shackle)[01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78 LOWER; FZJ79,HZJ79 SUSPENSION-COIL & LEAF HEAVY DUTY,LOWER; FZJ79,HZJ79 SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH,LOWER |
90385-18021 |
US $10.21 |
||
|
48210Q
|
48210Q
90385-18022 Bush(For Rear Spring Shackle)[01.2007 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
90385-18022 |
US $6.63 |
||
|
48211
|
48211
48031-60070 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [01.2007 - 07.2009] FZJ71,HZJ71..RHD LH; FZJ71,HZJ71..LHD |
48031-60070 |
US $144.14 |
||
|
48211
|
48211
48201-6A010 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [01.2007 - 07.2009] FZJ71,HZJ71..RHD RH |
48201-6A010 |
US $144.14 |
||
|
48211
|
48211
48211-60B20
Leaf, Rear Spring, No.1
[07.2009 - 08.2016] HZJ71..RHD |
48211-60B20 |
— | ||
|
48212
|
48212
48212-6A010 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [01.2007 - 07.2009] FZJ71,HZJ71..RHD RH |
48212-6A010 |
US $107.74 |
||
|
48212
|
48212
48276-60070 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [01.2007 - 07.2009] FZJ71,HZJ71..RHD LH; FZJ71,HZJ71..LHD |
48276-60070 |
US $144.14 |
||
|
48213
|
48213
48032-60070 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [01.2007 - 07.2009] FZJ71,HZJ71..RHD LH; FZJ71,HZJ71..LHD |
48032-60070 |
US $120.85 |
||
|
48213
|
48213
48202-6A010 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [01.2007 - 07.2009] FZJ71,HZJ71..RHD RH |
48202-6A010 |
US $90.27 |
||
|
48214
|
48214
48214-6A010 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [01.2007 - 07.2009] FZJ71,HZJ71..RHD RH |
48214-6A010 |
US $48.78 |
||
|
48214
|
48214
48278-60070 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [01.2007 - 07.2009] FZJ71,HZJ71..RHD LH; FZJ71,HZJ71..LHD |
48278-60070 |
US $64.50 |
||
|
48215
|
48215
48207-6A010 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [01.2007 - 07.2009] FZJ71,HZJ71..RHD RH |
48207-6A010 |
US $125.22 |
||
|
48215
|
48215
48209-60070 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [01.2007 - 07.2009] FZJ71,HZJ71..RHD LH; FZJ71,HZJ71..LHD |
48209-60070 |
US $119.39 |
||
|
48220
|
48220
48210-60B20
Spring Assy, Rear Rh
[07.2009 - 08.2016] HZJ71;GRJ71..LHD MAIN 4+HELPER 1-LEAF |
48210-60B20 |
— | ||
|
48220
|
48220
48220-60070
Spring Assy, Rear Lh
[01.2007 - 07.2009] FZJ71,HZJ71 5-LEAF |
48220-60070 |
— | ||
|
48246
|
48246
48146-60742 Case, Rear Spring Clip Bolt[01.2007 - 08.2016] HZJ76;GRJ71,76..LHD;HZJ71,VDJ76..RHD |
48146-60742 |
US $1.25 |
||
|
48247
|
48247
48289-60010 Bolt, Front Spring, Center[01.2007 - 07.2009] FZJ71,HZJ71..RHD |
48289-60010 |
US $14.34 |
||
|
48248A
|
48248A
48148-37010 Washer(For Rear Spring Clip Bolt)[01.2007 - 08.2016] HZJ76;HZJ71..RHD;GRJ71,76..LHD |
48148-37010 |
US $2.15 |
||
|
48252C
|
48252C
48154-60230 Silencer, Front Spring, No.2[01.2007 - 07.2009] FZJ71,HZJ71..RHD |
48154-60230 |
US $3.23 |
||
|
48256
|
48256
48156-60742 Bolt, Hexagon(For Rear Spring Clip Set)[01.2007 - 08.2016] HZJ76;HZJ71..RHD;GRJ71,76..LHD |
48156-60742 |
US $3.58 |
||
|
48284
|
48284
48284-60062 Nut, Front Spring Center Bolt[01.2007 - 08.2016] HZJ76;GRJ71,76..LHD;HZJ71,VDJ76..RHD; GRJ79,HZJ79 SUSPENSION-COIL & LEAF HEAVY DUTY; GRJ79,HZJ79 SUSPENSION-COIL & LEAF(HEAVY DUTY),WINCH |
48284-60062 |
US $3.94 |
