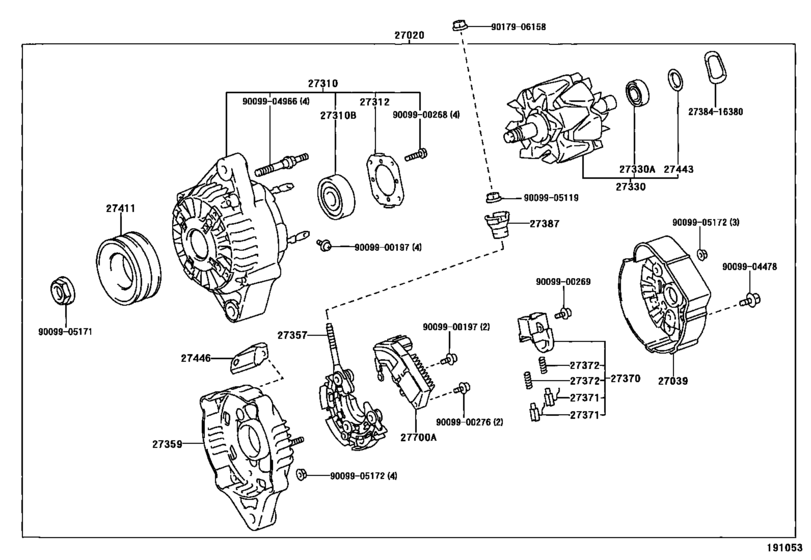

Alternator ([08.1999 - ] 12V 70A (9908- )1HZ..HZJ71,74,76) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2004
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 4NO
- Emission Regulation
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-17210 Alternator Assy[08.1999 - 08.2004] 1HZ..HZJ71,74,76 １２Ｖ ７０Ａ |
27060-17210 |
US $1,548.02 |
||
|
27039
|
27039
27039-67100
Cover, Alternator Rear End
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27039-67100 |
— | ||
|
27310
|
27310
27310-55090
Frame Assy, Drive End, Alternator
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27310-55090 |
— | ||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
90099-10199 |
from US $19.39 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27312-72100 |
— | ||
|
27330
|
27330
27330-67100
Rotor Assy, Alternator
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27330-67100 |
— | ||
|
27330A
|
27330A
90099-10216 Bearing(For Alternator Rotor)[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
90099-10216 |
from US $7.34 |
||
|
27357
|
27357
27357-67100 Holder, Alternator, W/rectifier[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27357-67100 |
US $74.08 |
||
|
27359
|
27359
27359-75160
Frame, Alternator Rectifier End
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27359-75160 |
— | ||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27370-58320 |
from US $14.86 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[05.1991 -] 1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,76,LJ7#,PZJ7# |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[01.1990 - 12.2000] 1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,76,LJ7#,PZJ7# |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[01.1990 - 12.2000] 1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,76,LJ7#,PZJ7# |
27372-87501 |
— | ||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27372-87501 |
— | ||
|
27387
|
27387
27387-70171
Insulator, Terminal
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
27387-70171 |
— | ||
|
27411
|
27411
27411-17010 Pulley, Alternator[01.1990 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,PZJ7# |
27411-17010 |
US $52.59 |
||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[01.1990 -] 1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,75,76,79,LJ7#,PZJ7# |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-62012
Clip, Alternator Cord
[08.1999 - 08.2004] 1HZ..HZJ7# |
27446-62012 |
— | ||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[08.1999 - 08.2004] 1HZ..HZJ7# |
27700-50030 |
from US $126.07 |
||
|
2738416380
|
2738416380
27384-16380
Washer
|
27384-16380 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009900269
|
9009900269
90099-00269
New Genuine Part
|
90099-00269 |
— | ||
|
9009900276
|
9009900276
90099-00276 New Genuine Part |
90099-00276 |
US $0.87 |
||
|
9009904478
|
9009904478
90099-04478
New Genuine Part
|
90099-04478 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
