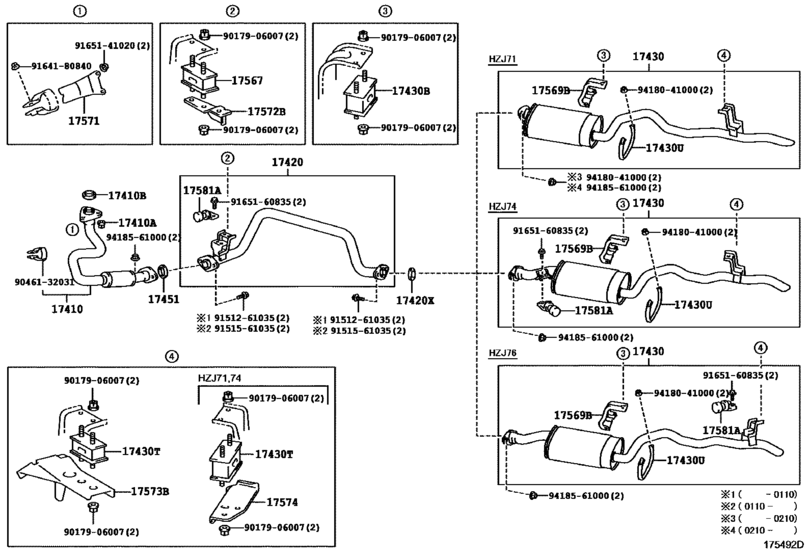

Exhaust Pipe ([08.2001 - ] (0108- )1HZ..HZJ71,74,76) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2004
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 4NO
- Emission Regulation
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-17180 Pipe Assy, Exhaust, Front[08.1999 - 08.2001] 1HZ..HZJ71,74,76 |
17401-17180 |
US $313.56 |
||
|
17410
|
17410
17401-17210 Pipe Assy, Exhaust, Front[08.2001 - 08.2004] 1HZ..HZJ71,74,76 |
17401-17210 |
US $404.04 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1993 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,79,PZJ7# |
90179-10070 |
US $2.15 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1993 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,79,PZJ7# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[04.1993 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,79,PZJ7# |
90917-06059 |
from US $6.27 |
||
|
17420
|
17420
17403-17050 Pipe Assy, Exhaust, Center[01.1990 - 08.2001] 1HZ,1PZ..HZJ71,PZJ70 |
17403-17050 |
US $145.96 |
||
|
17420
|
17420
17403-17230 Pipe Assy, Exhaust, Center[08.2001 - 08.2004] 1HZ..HZJ71 |
17403-17230 |
US $382.93 |
||
|
17420X
|
17420X
90917-06076 Gasket, Exhaust Pipe, Center[02.1993 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,PZJ7# |
90917-06076 |
from US $6.27 |
||
|
17430
|
17430
17405-17041 Pipe Assy, Exhaust, Tail[08.1999 - 08.2001] 1HZ..HZJ71 |
17405-17041 |
US $424.57 |
||
|
17430
|
17430
17405-17250 Pipe Assy, Exhaust, Tail[08.2001 - 08.2004] 1HZ..HZJ71 |
17405-17250 |
US $624.62 |
||
|
17430B
|
17430B
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
17567-17020 |
US $11.65 |
||
|
17430T
|
17430T
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 08.2004] 1HZ..HZJ7# |
17567-17020 |
US $11.65 |
||
|
17430U
|
17430U
17504-17010 Clamp No.1, Exhaust Tail Pipe (For Rear)[01.1990 -] 1HZ..HZJ70,71,73,74,76,77 |
17504-17010 |
US $26.38 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[02.1993 -] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,PZJ7# |
90917-06076 |
from US $6.27 |
||
|
17567
|
17567
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 08.2004] 1HZ..HZJ7# |
17567-17020 |
US $11.65 |
||
|
17569B
|
17569B
17569-17010 Stay, Exhaust Pipe Support, No.2[01.1990 -] 1HZ..HZJ70,71,73,74,76,77 |
17569-17010 |
US $37.80 |
||
|
17571
|
17571
17571-17030 Bracket, Exhaust Pipe Support, No.1[01.1990 -] 1HZ..HZJ73,77..ZX;1HZ..HZJ71,74,75,76,79 |
17571-17030 |
US $15.77 |
||
|
17572B
|
17572B
17572-60070 Bracket, Exhaust Pipe Support, No.2[08.1992 -] 1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,75,76,79,LJ7#,PZJ7# |
17572-60070 |
US $18.31 |
||
|
17574
|
17574
17574-60030
Bracket, Exhaust Pipe Support, No.4
[01.1990 -] 1HZ..HZJ73..ZX;1HZ,2LTE,1PZ..HZJ71,74,LJ71,PZJ70 |
17574-60030 |
— | ||
|
17581A
|
17581A
17581-17010 Damper, Exhaust Pipe[01.1990 - 08.2001] 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ71,74,76,PZJ7# センタ パイプ |
17581-17010 |
US $23.76 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
US $1.43 |
||
|
9046132031
|
9046132031
90461-32031 CLAMP |
90461-32031 |
US $8.04 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
US $1.97 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
US $2.15 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
US $1.79 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
US $1.61 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
US $1.61 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.79 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
US $1.97 |
||
