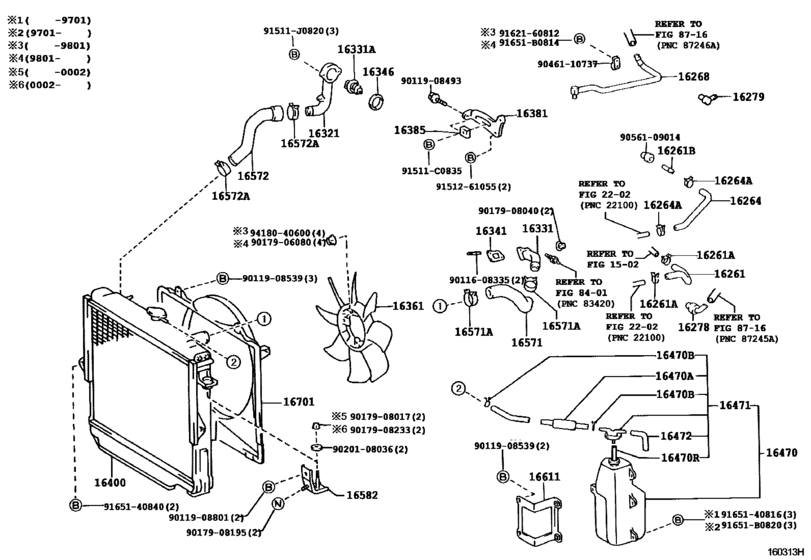

Radiator & Water Outlet ([08.1996 - ] (9608- )1HZ..HZJ70,71,73,74,76,77) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2004
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 4NO
- Emission Regulation
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-17010 Hose, Water By-Pass[08.1999 - 08.2004] 1HZ..HZJ7# |
16261-17010 |
from US $7.60 |
||
|
16261A
|
16261A
90467-15022 Clip Or Clamp(For Ventilation Hose)[08.1999 - 08.2004] 1HZ..HZJ7# |
90467-15022 |
from US $1.05 |
||
|
16261B
|
16261B
90406-10014 Union(For Water By-Pass Hose)[08.1999 - 08.2004] 1HZ..HZJ7# |
90406-10014 |
from US $3.76 |
||
|
16264
|
16264
16264-17011 Hose, Water By-Pass, No.2[08.1999 - 08.2004] 1HZ..HZJ7# |
16264-17011 |
from US $6.31 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[08.1999 - 08.2004] 1HZ..HZJ7# |
90467-15022 |
from US $1.05 |
||
|
16268
|
16268
16268-17010 Pipe, Water By-Pass, No.1[08.1999 - 08.2004] 1HZ..HZJ7# |
16268-17010 |
from US $40.76 |
||
|
16278
|
16278
16278-17010 Pipe, Water By-Pass, No.2[08.1999 - 08.2004] 1HZ..HZJ7# |
16278-17010 |
from US $14.40 |
||
|
16279
|
16279
16279-17010 Pipe, Water By-Pass, No.3[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
16279-17010 |
US $22.71 |
||
|
16321
|
16321
16321-17010 Inlet, Water[08.1999 - 08.2004] 1HZ..HZJ7# |
16321-17010 |
from US $74.56 |
||
|
16331
|
16331
16331-17010 Outlet, Water[08.1999 - 08.2004] 1HZ..HZJ7#..MTM |
16331-17010 |
from US $45.66 |
||
|
16331A
|
16331A
90916-03089 Thermostat[08.1999 - 08.2004] 1HZ..HZJ7# ＊ＷＡＸ ７６−９０ |
90916-03089 |
from US $19.74 |
||
|
16341
|
16341
16341-17010 Gasket, Water Outlet[08.1999 - 08.2004] 1HZ..HZJ7# |
16341-17010 |
from US $2.53 |
||
|
16346
|
16346
16346-66020 Gasket, Thermostat[08.1999 - 08.2004] 1HZ..HZJ7# |
16346-66020 |
from US $3.15 |
||
|
16361
|
16361
16361-17030 Fan[08.1999 - 08.2004] 1HZ..HZJ7# |
16361-17030 |
from US $95.12 |
||
|
16381
|
16381
16381-17010 Bar, Fan Belt Adjusting[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
16381-17010 |
from US $6.97 |
||
|
16385
|
16385
16385-17010 Slider, Fan Belt Adjusting[08.1999 - 08.2004] 1HZ..HZJ7# |
16385-17010 |
from US $5.23 |
||
|
16400
|
16400
16400-17300 Radiator Assy[08.1999 - 08.2004] 1HZ..HZJ71,74,76..MTM |
16400-17300 |
from US $753.48 |
||
|
16470
|
16470
16470-17010
Tank Assy, Radiator Reserve
[08.1999 - 08.2004] 1HZ..HZJ7# |
16470-17010 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-17011 Tank Assy, Radiator Reserve[08.1999 - 08.2004] 1HZ..HZJ7# |
16470-17011 |
from US $46.70 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1999 - 08.2004] 1HZ..HZJ7# 長さ＝３１５ |
90445-12078 |
from US $6.57 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1999 - 08.2004] 1HZ..HZJ7# |
90467-11085 |
from US $0.70 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[08.1999 - 08.2004] 1HZ..HZJ7# ＊Ｈ，Ｌ＝２８０ |
90445-12078 |
from US $6.57 |
||
|
16471
|
16471
16405-17010 Cap Sub-Assy, Reserve Tank[08.1999 - 08.2004] 1HZ..HZJ7# |
16405-17010 |
from US $21.17 |
||
|
16472
|
16472
85338-74040
Hose(For Radiator Drain Cock)
[08.1999 - 08.2004] 1HZ..HZJ7# |
85338-74040 |
— | ||
|
16571
|
16571
16571-17020 Hose, Radiator, Inlet[08.1999 - 08.2004] 1HZ..HZJ7# |
16571-17020 |
from US $13.76 |
||
|
16571A
|
16571A
90467-41002
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1999 - 08.2004] 1HZ..HZJ7# |
90467-41002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[08.1999 - 08.2004] 1HZ..HZJ7# |
90466-41008 |
from US $4.07 |
||
|
16572
|
16572
16572-17020 Hose, Radiator, Outlet[08.1999 - 08.2004] 1HZ..HZJ71,74,76 |
16572-17020 |
from US $20.44 |
||
|
16572A
|
16572A
90467-41002
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1999 - 08.2004] 1HZ..HZJ71,74,76 ラジェータ側 |
90467-41002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[08.1999 - 08.2004] 1HZ..HZJ71,74,76 ラジェータ側 |
90466-41008 |
from US $4.07 |
||
|
16572A
|
16572A
90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)[08.1999 - 08.2004] 1HZ..HZJ71,74,76 エンジン側 |
90467-43002 |
from US $3.84 |
||
|
16582
|
16582
16582-68010 Bracket, Radiator, No.1[08.1999 - 08.2004] 1HZ..HZJ7# |
16582-68010 |
from US $45.53 |
||
|
16611
|
16611
16611-17011 Bracket, Radiator Reserve Tank[08.1999 - 08.2004] 1HZ..HZJ7# |
16611-17011 |
from US $8.65 |
||
|
16701
|
16701
16711-17140 Shroud Sub-Assy, Fan[08.1999 - 08.2004] 1HZ..HZJ7# |
16711-17140 |
from US $103.63 |
||
|
91511C0835
|
91511C0835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.82 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011608335
|
9011608335
90116-08335 New Genuine Part |
90116-08335 |
US $1.79 |
||
|
9011908493
|
9011908493
90119-08493 BOLT |
90119-08493 |
from US $1.52 |
||
|
9011908539
|
9011908539
90119-08539 BOLT |
90119-08539 |
US $1.61 |
||
|
9011908801
|
9011908801
90119-08801
New Genuine Part
|
90119-08801 |
— | ||
| replacement | |||||
|
9011908801
|
9011908801
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017908195
|
9017908195
90179-08195 NUT |
90179-08195 |
US $3.40 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9020108036
|
9020108036
90201-08036 WASHER |
90201-08036 |
from US $2.87 |
||
|
9046110737
|
9046110737
90461-10737
CLAMP
|
90461-10737 |
— | ||
|
9056109014
|
9056109014
90561-09014 SPACER |
90561-09014 |
from US $4.30 |
||
|
9151261055
|
9151261055
91512-61055 BOLT, FLANGE |
91512-61055 |
from US $1.31 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140840
|
9165140840
91651-40840 BOLT |
91651-40840 |
US $3.05 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
