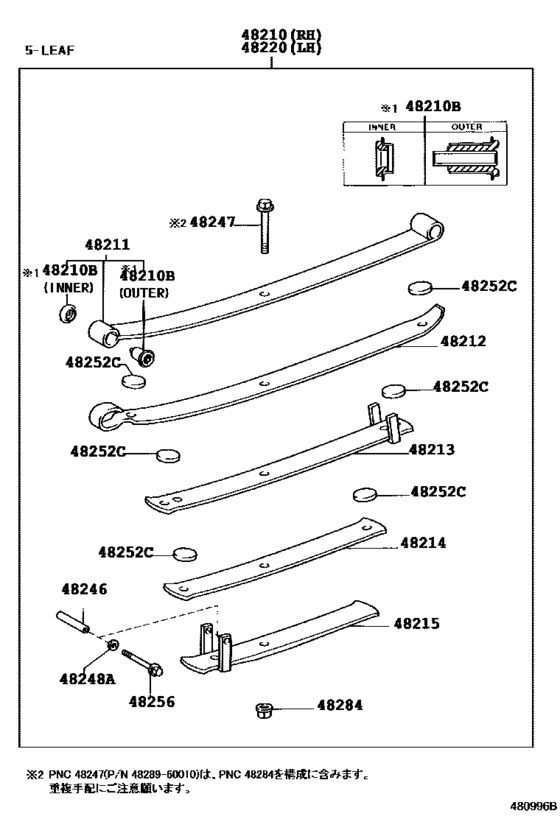

Rear Spring & Shock Absorber ([08.1999 - ] (9908- )HZJ71,74) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2004
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 4NO
- Emission Regulation
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-6A050 Spring Assy, Rear Rh[08.1999 - 08.2004] HZJ71,74 ５枚リーフ |
48210-6A050 |
US $781.87 |
||
|
48210B
|
48210B
90389-14056 Bush(For Rear Spring Pin)[08.1999 - 08.2004] HZJ7# 外側 |
90389-14056 |
US $16.13 |
||
|
48210B
|
48210B
90389-22003 Bush(For Rear Spring Pin)[08.1999 - 08.2004] HZJ7# 内側 |
90389-22003 |
US $6.45 |
||
|
48211
|
48211
48031-60110 Leaf, Rear Spring, No.1[08.1999 - 08.2004] HZJ71,74 左側 |
48031-60110 |
US $174.72 |
||
|
48211
|
48211
48201-6A050 Leaf, Rear Spring, No.1[08.1999 - 08.2004] HZJ71,74 右側 |
48201-6A050 |
US $174.72 |
||
|
48212
|
48212
48212-6A050 Leaf, Rear Spring, No.2[08.1999 - 08.2004] HZJ71,74 右側 |
48212-6A050 |
US $147.06 |
||
|
48212
|
48212
48276-60110 Leaf, Rear Spring, No.2[08.1999 - 08.2004] HZJ71,74 左側 |
48276-60110 |
US $147.06 |
||
|
48213
|
48213
48032-60110 Leaf, Rear Spring, No.3[08.1999 - 08.2004] HZJ71,74 左側 |
48032-60110 |
US $155.79 |
||
|
48213
|
48213
48202-6A050 Leaf, Rear Spring, No.3[08.1999 - 08.2004] HZJ71,74 右側 |
48202-6A050 |
US $155.79 |
||
|
48214
|
48214
48214-6A050 Leaf, Rear Spring, No.4[08.1999 - 08.2004] HZJ71,74 右側 |
48214-6A050 |
US $99.01 |
||
|
48214
|
48214
48278-60110 Leaf, Rear Spring, No.4[08.1999 - 08.2004] HZJ71,74 左側 |
48278-60110 |
US $99.01 |
||
|
48215
|
48215
48207-6A050 Leaf, Rear Spring, No.5[08.1999 - 08.2004] HZJ71,74 右側 |
48207-6A050 |
US $221.31 |
||
|
48215
|
48215
48209-60110 Leaf, Rear Spring, No.5[08.1999 - 08.2004] HZJ71,74 左側 |
48209-60110 |
US $221.31 |
||
|
48220
|
48220
48220-60110 Spring Assy, Rear Lh[08.1999 - 08.2004] HZJ71,74 ５枚リーフ |
48220-60110 |
US $781.87 |
||
|
48246
|
48246
48146-60742 Case, Rear Spring Clip Bolt[08.1999 - 08.2004] HZJ71,74,76 |
48146-60742 |
US $1.25 |
||
|
48247
|
48247
48289-60010 Bolt, Front Spring, Center[08.1999 - 08.2004] HZJ71,74 |
48289-60010 |
US $14.34 |
||
|
48248A
|
48248A
48148-37010 Washer(For Rear Spring Clip Bolt)[04.1990 -] HZJ71,74,76,PZJ77 |
48148-37010 |
US $2.15 |
||
|
48252C
|
48252C
48154-60230 Silencer, Front Spring, No.2[08.1992 -] HZJ73..ZX;HZJ71,74,76,PZJ70 |
48154-60230 |
US $3.23 |
||
|
48256
|
48256
48156-60742 Bolt, Hexagon(For Rear Spring Clip Set)[08.1999 - 08.2004] HZJ71,74,76 |
48156-60742 |
US $3.58 |
||
|
48284
|
48284
48284-60062 Nut, Front Spring Center Bolt[01.1990 - 08.2001] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
48284-60062 |
US $3.94 |
