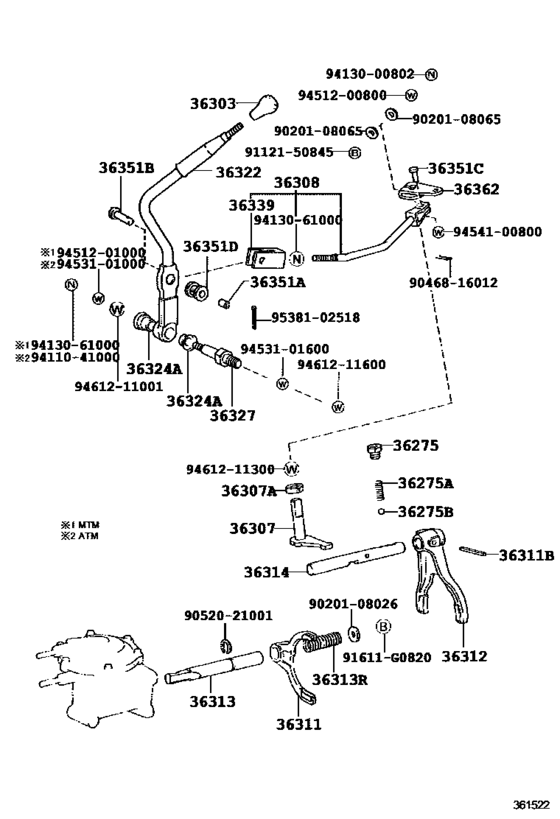

Transfer Lever & Shift Rod ([08.1999 - ] (9908- )HZJ71,74,76) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2004
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 4NO
- Emission Regulation
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36275
|
36275
90341-15001 Plug, Shift Detent Ball Spring[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
90341-15001 |
from US $6.04 |
||
|
36275A
|
36275A
90501-16115 Spring, Compression (For Shift Detent Ball)[01.1990 -] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 長さ＝１７．７ |
90501-16115 |
from US $1.61 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# 外径＝９．５２，スチール |
90360-10003 |
from US $1.16 |
||
|
36303
|
36303
36303-60211-B1
Knob Sub-Assy, Shift Lever
[08.1999 - 08.2004] HZJ71,74,76 SHADOW GRAY,TRIM1# |
36303-60211-B1 |
— | ||
| replacement | |||||
|
36303
|
36303
36303-60211-C0 Knob Sub-Assy, Shift Lever (Black Plastic)[08.1999 - 08.2004] HZJ71,74,76 SHADOW GRAY,TRIM1# |
36303-60211-C0 |
from US $28.54 |
||
|
36307
|
36307
36307-60040 Lever Sub-Assy, High & Low Shift Inner[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36307-60040 |
US $14.50 |
||
|
36307A
|
36307A
90313-13001 Seal, Oil(For Shift Lever Shaft)[01.1990 -] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
90313-13001 |
from US $2.87 |
||
|
36308
|
36308
36308-60260 Rod Sub-Assy, High & Low Shift[08.1999 - 08.2004] HZJ71,74,76..MTM |
36308-60260 |
US $36.34 |
||
|
36311
|
36311
36311-60041 Fork, Transfer Gear Shift, No.1[01.1990 -] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
36311-60041 |
from US $45.37 |
||
|
36311B
|
36311B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1990 -] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 長さ＝２５．５ |
90254-05016 |
from US $1.90 |
||
|
36312
|
36312
36312-60040 Fork, Transfer Gear Shift, No.2[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36312-60040 |
US $54.51 |
||
|
36313
|
36313
36313-60070 Shaft, Transfer Front Drive Shift[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36313-60070 |
US $59.40 |
||
|
36313R
|
36313R
90501-29003 Spring, Compression (For C-3 Accumulator Piston)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
90501-29003 |
US $4.66 |
||
|
36314
|
36314
36314-60040 Shaft, Transfer High And Low Shift Fork[01.1990 -] HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
36314-60040 |
US $33.55 |
||
|
36322
|
36322
36360-60670 Lever, Transfer High & Low Shift[08.1999 - 08.2004] HZJ71,74,76..MTM |
36360-60670 |
US $155.50 |
||
|
36324A
|
36324A
36324-60050 Bush (For Front Drive Shift Link Lever)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36324-60050 |
from US $1.37 |
||
|
36327
|
36327
36327-60031 Shaft, Transfer Shift Lever[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36327-60031 |
US $16.42 |
||
|
36339
|
36339
36338-60030 Clevis, Transfer Shift Rod[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
36338-60030 |
US $29.70 |
||
|
36351A
|
36351A
90560-10406 Spacer (For High & Low Shift Rod)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
90560-10406 |
US $2.62 |
||
|
36351B
|
36351B
90240-10157 Pin (For High & Low Shift Rod)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
90240-10157 |
US $1.97 |
||
|
36351C
|
36351C
90240-08128 Pin (For High & Low Shift Rod)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7# |
90240-08128 |
US $1.14 |
||
|
36351D
|
36351D
90480-17401 Grommet (For High & Low Shift Rod)[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
90480-17401 |
US $2.87 |
||
|
36362
|
36362
36362-60020 Lever, Transfer High And Low Shift Outer[01.1990 -] HZJ73,77..ZX;HZJ71,74,76,LJ7# |
36362-60020 |
US $6.29 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9020108026
|
9020108026
90201-08026 New Genuine Part |
90201-08026 |
US $1.31 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.87 |
||
|
9052021001
|
9052021001
90520-21001 New Genuine Part |
90520-21001 |
US $4.37 |
||
|
9112150845
|
9112150845
91121-50845 Bolt (For Floor Shift Control Lever) |
91121-50845 |
US $1.05 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9453101600
|
9453101600
94531-01600 WASHER |
94531-01600 |
US $0.61 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.79 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.68 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
US $1.97 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
