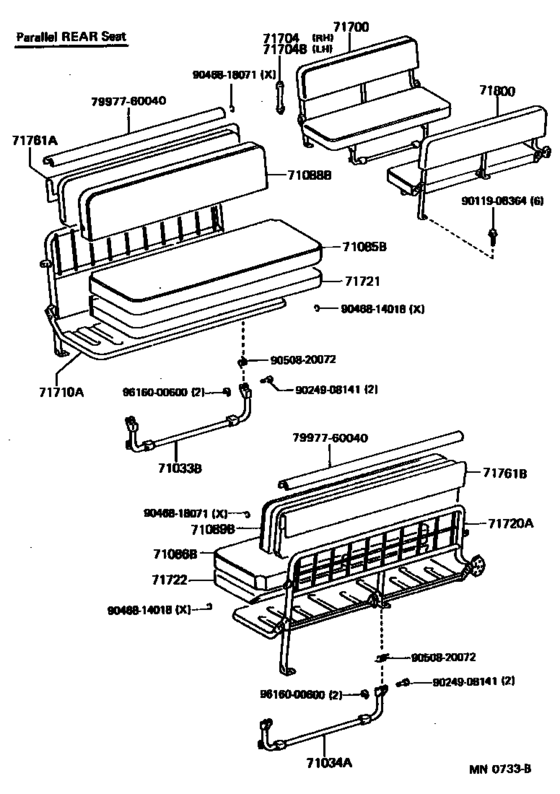

Seat & Seat Track ([01.1990 - ] (9001- )HZJ71,74,RJ7# ; (9608-9702)HZJ70,73) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- HZJ74
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2001
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71033B
|
71033B
71033-60210 Leg Sub-Assy, Rear Side Seat Cushion, No.1 RhREAR SIDE SEAT CUSHION, NO.1 RH [08.1999 - 08.2001] HZJ74 |
71033-60210 |
US $78.62 |
||
|
71034A
|
71034A
71034-60120 Leg Sub-Assy, Rear Side Seat Cushion, No.1 LhREAR SIDE SEAT CUSHION, NO.1 LH [08.1999 - 08.2001] HZJ74 |
71034-60120 |
US $71.93 |
||
|
71085B
|
71085B
71085-60171-B0
Cover Sub-Assy, Rear Side Seat Cushion, Rh
[08.1999 - 08.2001] HZJ74 SLATE GRAY,TRIM1# |
71085-60171-B0 |
— | ||
|
71085B
|
71085B
71085-60171-E1
Cover Sub-Assy, Rear Side Seat Cushion, Rh
[08.1999 - 08.2001] HZJ74 MD.OAK,TRIM4# |
71085-60171-E1 |
— | ||
|
71086B
|
71086B
71086-60161-B0
Cover Sub-Assy, Rear Side Seat Cushion, Lh
[08.1999 - 08.2001] HZJ74 SLATE GRAY,TRIM1# |
71086-60161-B0 |
— | ||
|
71086B
|
71086B
71086-60161-E1
Cover Sub-Assy, Rear Side Seat Cushion, Lh
[08.1999 - 08.2001] HZJ74 MD.OAK,TRIM4# |
71086-60161-E1 |
— | ||
|
71088B
|
71088B
71088-60221-B0
Cover Sub-Assy, Rear Side Seat Back, Rh
[08.1999 - 08.2001] HZJ74 SLATE GRAY,TRIM1# |
71088-60221-B0 |
— | ||
|
71088B
|
71088B
71088-60221-E1
Cover Sub-Assy, Rear Side Seat Back, Rh
[08.1999 - 08.2001] HZJ74 MD.OAK,TRIM4# |
71088-60221-E1 |
— | ||
|
71089B
|
71089B
71089-60201-B0
Cover Sub-Assy, Rear Side Seat Back, Lh
[08.1999 - 08.2001] HZJ74 SLATE GRAY,TRIM1# |
71089-60201-B0 |
— | ||
|
71089B
|
71089B
71089-60201-E1
Cover Sub-Assy, Rear Side Seat Back, Lh
[08.1999 - 08.2001] HZJ74 MD.OAK,TRIM4# |
71089-60201-E1 |
— | ||
|
71700
|
71700
71700-60461-B1 Seat Assy, Rear Side, RhREAR SIDE, RH [08.1999 - 08.2001] HZJ74 BLUISH GRAY,TRIM1# |
71700-60461-B1 |
US $1,308.94 |
||
|
71700
|
71700
71700-60461-E2 Seat Assy, Rear Side, RhREAR SIDE, RH [08.1999 - 08.2001] HZJ74 OAK,TRIM4# |
71700-60461-E2 |
US $1,308.94 |
||
|
71704
|
71704
71704-90K03-B0
Band Sub-Assy, Rear Side Seat
[08.1999 - 08.2001] HZJ74 BLUISH GRAY,TRIM1# |
71704-90K03-B0 |
— | ||
|
71704
|
71704
71704-90K03-E0 Band Sub-Assy, Rear Side SeatREAR SIDE SEAT [08.1999 - 08.2001] HZJ74 OAK,TRIM4# |
71704-90K03-E0 |
US $31.74 |
||
|
71704B
|
71704B
71704-90K03-B0
Band Sub-Assy, Rear Side Seat
[08.1999 - 08.2001] HZJ74 BLUISH GRAY,TRIM1# |
71704-90K03-B0 |
— | ||
|
71704B
|
71704B
71704-90K03-E0 Band Sub-Assy, Rear Side SeatREAR SIDE SEAT [08.1999 - 08.2001] HZJ74 OAK,TRIM4# |
71704-90K03-E0 |
US $31.74 |
||
|
71710A
|
71710A
71710-60050 Frame Assy, Rear Side Seat, RhREAR SIDE SEAT, RH [08.1999 - 08.2001] HZJ74 |
71710-60050 |
US $384.38 |
||
|
71720A
|
71720A
71720-60050 Frame Assy, Rear Side Seat, LhREAR SIDE SEAT, LH [08.1999 - 08.2001] HZJ74 |
71720-60050 |
US $384.38 |
||
|
71721
|
71721
71721-90K02 Pad, Rear Side Seat Cushion, RhREAR SIDE SEAT CUSHION, RH [05.1990 - 08.2001] HZJ71,74,75,78,PZJ75,RJ7#..HT..(DSL,EFI) |
71721-90K02 |
US $187.06 |
||
|
71722
|
71722
71721-90K02 Pad, Rear Side Seat Cushion, RhREAR SIDE SEAT CUSHION, RH [05.1990 - 08.2001] HZJ71,74,75,78,PZJ75,RJ7#..HT..(DSL,EFI) |
71721-90K02 |
US $187.06 |
||
|
71761A
|
71761A
71761-90K02 Pad, Rear Side Seat Back, RhREAR SIDE SEAT BACK, RH [05.1990 - 08.2001] HZJ71,74,RJ7#..DSL,EFI |
71761-90K02 |
US $96.10 |
||
|
71761B
|
71761B
71761-90K02 Pad, Rear Side Seat Back, RhREAR SIDE SEAT BACK, RH [05.1990 - 08.2001] HZJ71,74,RJ7#..DSL,EFI |
71761-90K02 |
US $96.10 |
||
|
71800
|
71800
71800-60401-B1 Seat Assy, Rear Side, LhREAR SIDE, LH [08.1999 - 08.2001] HZJ74 BLUISH GRAY,TRIM1# |
71800-60401-B1 |
US $1,308.94 |
||
|
71800
|
71800
71800-60401-E2 Seat Assy, Rear Side, LhREAR SIDE, LH [08.1999 - 08.2001] HZJ74 OAK,TRIM4# |
71800-60401-E2 |
US $1,308.94 |
||
|
7997760040
|
7997760040
79977-60040 Felt, Seat Back |
79977-60040 |
US $8.04 |
||
|
9011908364
|
9011908364
90119-08364 Bolt |
90119-08364 |
US $2.48 |
||
|
9024908141
|
9024908141
90249-08141
Pin, Rear Seat Cushion Leg, Rear
|
90249-08141 |
— | ||
| replacement | |||||
|
9024908141
|
9024908141
71434-95701 Pin, Rear Seat Cushion Leg, Rear |
71434-95701 |
US $4.37 |
||
|
9046814018
|
9046814018
90468-14018 New Genuine Part |
90468-14018 |
US $0.96 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.84 |
||
|
9050820072
|
9050820072
90508-20072
New Genuine Part
|
90508-20072 |
— | ||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
