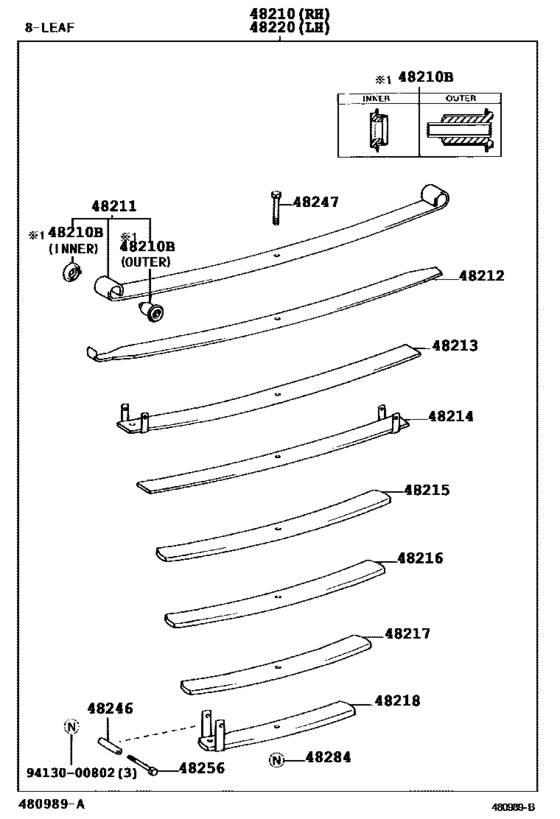

Rear Spring & Shock Absorber ([08.1999 - ] (9908- )HZJ78) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- HZJ78
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2001
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-6A020 Spring Assy, Rear RhREAR RH [08.1999 - 04.2001] HZJ78 8-LEAF |
48210-6A020 |
from US $1,342.43 |
||
|
48210
|
48210
48210-6A080 Spring Assy, Rear RhREAR RH [04.2001 - 08.2001] HZJ78 8-LEAF |
48210-6A080 |
US $1,342.43 |
||
|
48210B
|
48210B
90389-14056 Bush(For Rear Spring Pin)[08.1999 - 08.2001] HZJ7# OUTER |
90389-14056 |
from US $16.13 |
||
|
48210B
|
48210B
90389-22003 Bush(For Rear Spring Pin)[08.1999 - 08.2001] HZJ7# INNER |
90389-22003 |
from US $6.45 |
||
|
48211
|
48211
48201-6A020 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1999 - 04.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48201-6A020 |
US $227.14 |
||
|
48211
|
48211
48201-6A080 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48201-6A080 |
US $227.14 |
||
|
48211
|
48211
48205-6A020 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1999 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48205-6A020 |
US $221.52 |
||
|
48212
|
48212
48212-6A020 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [04.2001 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48212-6A020 |
US $188.46 |
||
|
48212
|
48212
48212-6A080 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48212-6A080 |
US $192.19 |
||
|
48213
|
48213
48202-6A020
Leaf, Rear Spring, No.3
[08.1999 - 08.2001] HZJ78 LH |
48202-6A020 |
— | ||
|
48213
|
48213
48202-6A080 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48202-6A080 |
US $187.82 |
||
|
48214
|
48214
48203-6A020 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1999 - 08.2001] HZJ78 LH |
48203-6A020 |
US $157.85 |
||
|
48214
|
48214
48203-6A080 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48203-6A080 |
US $171.81 |
||
|
48215
|
48215
48215-6A020 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [04.2001 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48215-6A020 |
US $109.52 |
||
|
48215
|
48215
48215-6A080 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48215-6A080 |
US $113.57 |
||
|
48216
|
48216
48216-6A020 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [04.2001 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48216-6A020 |
US $95.44 |
||
|
48216
|
48216
48216-6A080 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48216-6A080 |
US $100.46 |
||
|
48217
|
48217
48217-6A020 Leaf, Rear Spring, No.7REAR SPRING, NO.7 [04.2001 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48217-6A020 |
US $186.37 |
||
|
48217
|
48217
48217-6A080 Leaf, Rear Spring, No.7REAR SPRING, NO.7 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48217-6A080 |
US $186.37 |
||
|
48218
|
48218
48204-6A020
Leaf, Rear Spring, No.8
[04.2001 - 08.2001] HZJ78 DRIVER SIDE; HZJ78 LH |
48204-6A020 |
— | ||
|
48218
|
48218
48204-6A080 Leaf, Rear Spring, No.8REAR SPRING, NO.8 [04.2001 - 08.2001] HZJ78 PASSENGER SIDE; HZJ78 RH |
48204-6A080 |
US $173.26 |
||
|
48220
|
48220
48220-60080 Spring Assy, Rear LhREAR LH [08.1999 - 08.2001] HZJ78 8-LEAF |
48220-60080 |
from US $1,239.64 |
||
|
48246
|
48246
48246-36052 Case, Rear Spring Clip Bolt[08.1992 - 08.2001] HZJ75,78,79 |
48246-36052 |
US $3.94 |
||
|
48247
|
48247
48247-36200 Bolt, Rear Spring, Center[08.1999 - 08.2001] HZJ78 |
48247-36200 |
US $4.54 |
||
|
48256
|
48256
48256-25050 Bolt, Hexagon(For Rear Spring Clip)[01.1990 - 08.2001] HZJ75,78,79,PZJ75 |
48256-25050 |
from US $3.33 |
||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[08.1999 - 08.2001] HZJ78,79 |
48284-37130 |
from US $1.08 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
