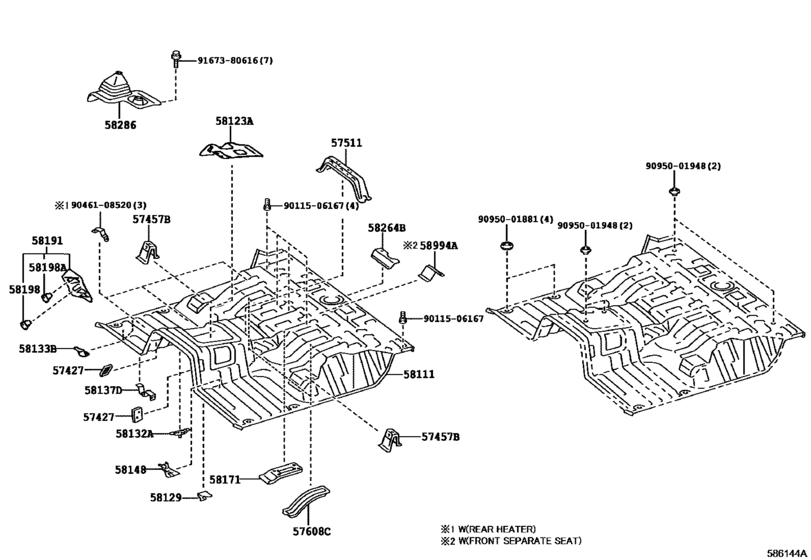

Front Floor Panel & Front Floor Member ([08.2016 - ] FRONT FLOOR PANEL (1608- )HZJ78..RHD) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ78
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57427
|
57427
57427-90K00 Reinforcement, Front Floor To Brace[01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# |
57427-90K00 |
US $9.32 |
||
|
57457B
|
57457B
57457-60020
Bracket, Front Seat, Front
[01.2007 - 08.2016] GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
57457-60020 |
— | ||
|
57511
|
57511
57509-60070 Reinforcement, Front Floor, CenterFRONT FLOOR, CENTER [08.2010 - 08.2012] HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE RE AR SEAT; HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-W/O |
57509-60070 |
US $36.55 |
||
|
57511
|
57511
57511-90K00 Reinforcement, Front Floor, Center[01.2007 - 08.2016] VDJ79..DCB;GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ76 |
57511-90K00 |
US $51.72 |
||
|
57608C
|
57608C
57608-60060 Bracket Sub-Assy, Fuel Tank Mounting[01.2007 - 08.2016] GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
57608-60060 |
from US $23.59 |
||
|
58111
|
58111
58111-60C60
Pan, Front Floor
[07.2009 - 06.2014] HZJ78,VDJ78..RHD..STD |
58111-60C60 |
— | ||
|
58111
|
58111
58111-60D50
Pan, Front Floor
[08.2010 - 08.2012] HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE RE AR SEAT; HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-W/O |
58111-60D50 |
— | ||
|
58111
|
58111
58111-60E80
Pan, Front Floor
[06.2014 - 08.2016] HZJ78..RHD |
58111-60E80 |
— | ||
|
58111
|
58111
58111-60F10
Pan, Front Floor
[06.2014 - 08.2014] HZJ78..RHD SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT; HZJ78..RHD SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-W/O |
58111-60F10 |
— | ||
|
58111
|
58111
58111-6A231
Pan, Front Floor
[01.2007 - 07.2009] FZJ78,HZJ78,VDJ78..RHD..STD |
58111-6A231 |
— | ||
| replacements | |||||
|
58111
|
58111
58111-60C60
Pan, Front Floor
[01.2007 - 07.2009] FZJ78,HZJ78,VDJ78..RHD..STD |
58111-60C60 |
— | ||
|
58111
|
58111
90950-01954 PLUG HOLE[01.2007 - 07.2009] FZJ78,HZJ78,VDJ78..RHD..STD |
90950-01954 |
from US $1.79 |
||
|
58123A
|
58123A
58013-60020 Support, Shift & Select Lever[01.2007 - 04.2009] HZJ7# |
58013-60020 |
US $68.58 |
||
| replacements | |||||
|
58123A
|
58123A
58013-60100 Panel Sub-Assy, Floor Panel Side, Lh[01.2007 - 04.2009] HZJ7# |
58013-60100 |
US $57.08 |
||
|
58123A
|
58123A
90950-01948 PLUG HOLE[01.2007 - 04.2009] HZJ7# |
90950-01948 |
US $1.79 |
||
|
58123A
|
58123A
58013-60021 Support, Shift & Select Lever[04.2009 - 07.2009] HZJ76..LHD;HZJ71,78,79; HZJ76..RHD HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT; HZJ76..RHD FRONT SEAT-SEPARATE SEAT |
58013-60021 |
US $68.58 |
||
| replacements | |||||
|
58123A
|
58123A
58013-60100 Panel Sub-Assy, Floor Panel Side, Lh[04.2009 - 07.2009] HZJ76..LHD;HZJ71,78,79; HZJ76..RHD HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT; HZJ76..RHD FRONT SEAT-SEPARATE SEAT |
58013-60100 |
US $57.08 |
||
|
58123A
|
58123A
90950-01948 PLUG HOLE[04.2009 - 07.2009] HZJ76..LHD;HZJ71,78,79; HZJ76..RHD HEATER-W(FRONT & REAR)&FRONT SEAT-SEPARATE SEAT; HZJ76..RHD FRONT SEAT-SEPARATE SEAT |
90950-01948 |
US $1.79 |
||
|
58123A
|
58123A
58013-60050
Support, Shift & Select Lever
[07.2009 - 08.2012] HZJ7# |
58013-60050 |
— | ||
| replacements | |||||
|
58123A
|
58123A
58013-60120
Panel Sub-Assy, Floor Panel Side, Lh
[07.2009 - 08.2012] HZJ7# |
58013-60120 |
— | ||
|
58123A
|
58123A
90950-01948 PLUG HOLE[07.2009 - 08.2012] HZJ7# |
90950-01948 |
US $1.79 |
||
|
58123A
|
58123A
58013-60080
Support, Shift & Select Lever
[08.2012 - 06.2016] HZJ7# |
58013-60080 |
— | ||
| replacements | |||||
|
58123A
|
58123A
58013-60081
Support, Shift & Select Lever
[08.2012 - 06.2016] HZJ7# |
58013-60081 |
— | ||
|
58123A
|
58123A
90950-01948 PLUG HOLE[08.2012 - 06.2016] HZJ7# |
90950-01948 |
US $1.79 |
||
|
58123A
|
58123A
58013-60081
Support, Shift & Select Lever
[06.2016 - 08.2016] HZJ7# |
58013-60081 |
— | ||
|
58129
|
58129
58129-60010
Plate, Front Floor, No.2
[01.2007 - 08.2016] HZJ7# |
58129-60010 |
— | ||
|
58132A
|
58132A
58132-60030 Bracket, Front Floor Heat Insulator, No.2FRONT FLOOR HEAT INSULATOR, NO.2 [01.2007 - 08.2016] HZJ7#,VDJ7# |
58132-60030 |
US $3.79 |
||
|
58133B
|
58133B
58133-90A01 Bracket, Front Floor Heat Insulator, No.3[01.2007 - 08.2016] HZJ79;GRJ78..LHD;GRJ79,HZJ71,76,78..HT,PIC,SOT |
58133-90A01 |
US $3.79 |
||
|
58137D
|
58137D
58137-60020
Bracket, Front Floor Housing, Front Rh
[01.2007 - 10.2011] VDJ78..LX;HZJ7#,VDJ76,79 |
58137-60020 |
— | ||
|
58137D
|
58137D
58137-60030
Bracket, Front Floor Housing, Front Rh
[10.2011 - 08.2016] VDJ78..LX;VDJ79..PIC..IV;HZJ7#,VDJ76..HT,PIC,SOT |
58137-60030 |
— | ||
|
58148
|
58148
58148-60020 Bracket, Front Floor Housing, Rear LhFRONT FLOOR HOUSING, REAR LH [01.2007 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
58148-60020 |
US $6.84 |
||
|
58171
|
58171
58171-90K01 Reinforcement, Parking Brake Base[01.2007 - 08.2016] GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
58171-90K01 |
US $29.41 |
||
|
58191
|
58191
58190-60060 Footrest, Front Floor[01.2007 - 08.2016] GRJ79,HZJ7#,VDJ7#..RHD |
58190-60060 |
US $38.09 |
||
|
58198
|
58198
58198-60060 Clip, Footrest[01.2007 - 08.2016] FZJ7#,GRJ7#,HZJ7#,VDJ7# |
58198-60060 |
from US $2.73 |
||
|
58198
|
58198
58198-60080
Clip, Footrest
[12.2016 -] VDJ79..CBU;VDJ79..DCB..IV;HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ76,78 |
58198-60080 |
— | ||
|
58198A
|
58198A
58198-60060 Clip, Footrest[01.2007 - 08.2016] FZJ71,78,79,GRJ71,78,79,HZJ7#,VDJ7#..RHD |
58198-60060 |
from US $2.73 |
||
|
58264B
|
58264B
58264-60020 Bracket, Parking Brake Cable Guide[01.2007 - 08.2016] GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
58264-60020 |
US $6.84 |
||
|
58286
|
58286
58280-60160 Boot, Shift & Select Lever, No.1[01.2007 - 08.2016] HZJ7#..RHD |
58280-60160 |
from US $72.16 |
||
|
58994A
|
58994A
58997-60060 Bracket, Console Box Mounting, No.4CONSOLE BOX MOUNTING, NO.4 [08.2010 - 08.2012] HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE RE AR SEAT; HZJ78..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&FRONT SEAT-SEPARATE SEAT&REAR SEAT-W/O |
58997-60060 |
US $11.50 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.25 |
||
|
9046108520
|
9046108520
90461-08520 New Genuine Part |
90461-08520 |
US $2.62 |
||
|
9095001881
|
9095001881
90950-01881 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01881 |
US $1.97 |
||
|
9095001948
|
9095001948
90950-01948 PLUG HOLE |
90950-01948 |
US $1.79 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
