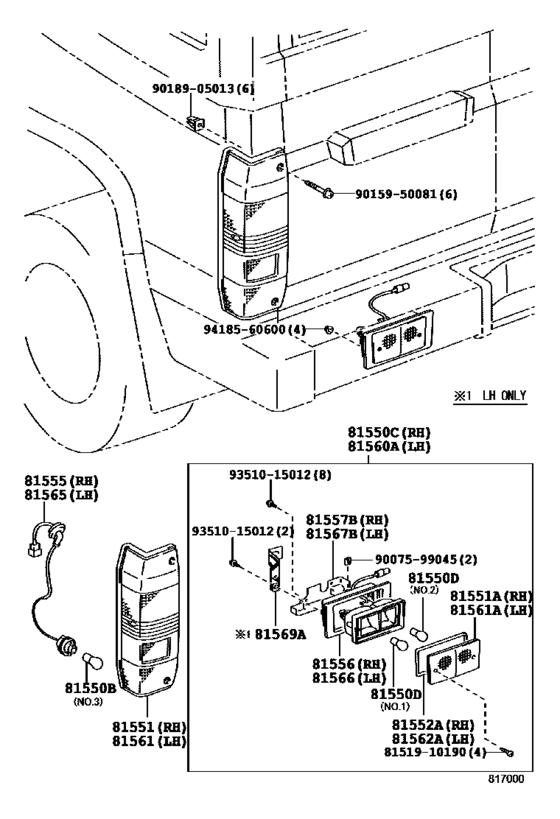

Rear Combination Lamp ([08.2010 - ] SOUTH AFRICA SPEC (1008- )HZJ78..RHD) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ78
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[08.2010 - 08.2016] HZJ78..RHD 12V 21W,SOUTH AFRICA SPEC,NO.2 |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[01.2007 - 08.2016] HZJ71,76,78;GRJ71,76,78..LHD 12V 21/5W,NO.1; GRJ79,HZJ79,VDJ7# 12V 21/5W,NO.2 |
99132-21210 |
from US $2.81 |
||
|
81550C
|
81550C
81550-60353 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81550-60353 |
from US $75.94 |
||
|
81550D
|
81550D
99132-11210 Bulb (12V 21W)[08.2010 - 08.2016] HZJ78..RHD 12V 21W,SOUTH AFRICA SPEC,NO.1 |
99132-11210 |
from US $2.81 |
||
|
81550D
|
81550D
99132-21210 Bulb, Cornering Lamp[08.2010 - 08.2016] HZJ78..RHD 12V 21/5W,SOUTH AFRICA SPEC,NO.2 |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-60A21 Lens, Rear Combination Lamp, Rh[08.2016 -] GRJ71..SOT;GRJ78,HZJ71,78..LHD..GEN ALGERIA; HZJ78..RHD SOUTH AFRICA |
81551-60A21 |
from US $44.19 |
||
|
81551
|
81551
81551-90K09 Lens, Rear Combination Lamp, Rh[01.2007 - 08.2016] HZJ71,78;GRJ71,78..LHD |
81551-90K09 |
from US $82.31 |
||
|
81551
|
81551
81551-90K14
Lens, Rear Combination Lamp, Rh
[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81551-90K14 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-60A21 Lens, Rear Combination Lamp, Rh[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81551-60A21 |
from US $44.19 |
||
|
81551A
|
81551A
81551-60363 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81551-60363 |
from US $18.04 |
||
|
81552A
|
81552A
81552-90K15 Gasket, Rear Combination Lamp, Rh[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81552-90K15 |
US $8.78 |
||
|
81555
|
81555
81555-60410 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[01.2007 - 08.2016] HZJ71,78;GRJ71,78..LHD |
81555-60410 |
from US $23.15 |
||
|
81555
|
81555
81555-60A20
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81555-60A20 |
— | ||
|
81556
|
81556
81556-60350 Rim, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81556-60350 |
US $26.71 |
||
|
81557B
|
81557B
81557-60363 Protector, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81557-60363 |
US $3.93 |
||
|
81560A
|
81560A
81560-60810 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81560-60810 |
from US $75.94 |
||
|
81561
|
81561
81561-60350 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81561-60350 |
US $51.54 |
||
| replacement | |||||
|
81561
|
81561
81561-60A31
Lens, Rear Combination Lamp, Lh
[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81561-60A31 |
— | ||
|
81561
|
81561
81561-60A31
Lens, Rear Combination Lamp, Lh
[08.2016 -] HZJ78..RHD SOUTH AFRICA |
81561-60A31 |
— | ||
|
81561
|
81561
81561-90K09 Lens, Rear Combination Lamp, Lh[01.2007 - 08.2016] HZJ71,78;GRJ71,78..LHD |
81561-90K09 |
from US $83.73 |
||
|
81561A
|
81561A
81561-60283 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81561-60283 |
from US $17.02 |
||
|
81562A
|
81562A
81552-90K15 Gasket, Rear Combination Lamp, Rh[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81552-90K15 |
US $8.78 |
||
|
81565
|
81565
81555-60410 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[01.2007 - 08.2016] HZJ71,78;GRJ71,78..LHD |
81555-60410 |
from US $23.15 |
||
|
81565
|
81565
81555-60A20
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81555-60A20 |
— | ||
|
81566
|
81566
81566-60270 Rim, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81566-60270 |
US $26.71 |
||
|
81567B
|
81567B
81567-60270 Protector, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81567-60270 |
US $4.19 |
||
|
81569A
|
81569A
81568-60810 Bracket, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.2010 - 08.2016] HZJ78..RHD SOUTH AFRICA SPEC |
81568-60810 |
US $3.79 |
||
|
8151910190
|
8151910190
81519-10190 Bracket, Front Turn Signal Lamp, Rh |
81519-10190 |
US $2.15 |
||
|
9007599045
|
9007599045
90075-99045
New Genuine Part
|
90075-99045 |
— | ||
|
9015950081
|
9015950081
90159-50081 SCREW |
90159-50081 |
from US $1.19 |
||
|
9018905013
|
9018905013
90189-05013 Grommet |
90189-05013 |
from US $1.05 |
||
|
9351015012
|
9351015012
93510-15012 New Genuine Part |
93510-15012 |
US $3.23 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
||
