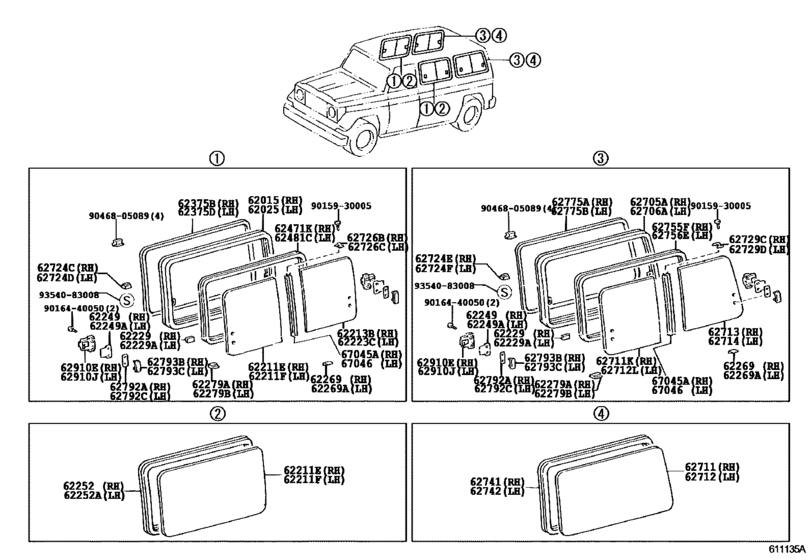

Side Window ([01.2007 - ] (0701- )FZJ78,GRJ78,HZJ78,VDJ78) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ78
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62015
|
62015
62015-60010 Frame Sub-Assy, Side Window, Rh[06.2014 - 08.2016] VDJ78..LX; GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62015-60010 |
from US $186.37 |
||
|
62025
|
62025
62025-60010 Frame Sub-Assy, Side Window, LhSIDE WINDOW, LH [01.2007 - 06.2014] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE |
62025-60010 |
from US $187.82 |
||
|
62211E
|
62211E
62211-60080
Glass, Side Window, Rear Rh
[01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=3.5,GREEN |
62211-60080 |
— | ||
|
62211E
|
62211E
62211-60090
Glass, Side Window, Rear Rh
[06.2014 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78,HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62211-60090 |
— | ||
|
62211E
|
62211E
62211-60100
Glass, Side Window, Rear Rh
[06.2014 - 08.2016] GRJ78,HZJ78 *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62211-60100 |
— | ||
|
62211F
|
62211F
62211-60080
Glass, Side Window, Rear Rh
[01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=3.5,GREEN |
62211-60080 |
— | ||
|
62211F
|
62211F
62221-60020
Glass, Side Window, Rear Lh
[01.2007 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62221-60020 |
— | ||
|
62211F
|
62211F
62221-60030
Glass, Side Window, Rear Lh
[01.2007 - 08.2016] HZJ78;GRJ78..LHD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62221-60030 |
— | ||
|
62213B
|
62213B
62213-60010
Glass, Side Window, Rear Rh
[06.2014 - 08.2016] VDJ78..LX; GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE |
62213-60010 |
— | ||
|
62213B
|
62213B
62213-60020
Glass, Side Window, Rear Rh
[06.2014 - 08.2016] GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62213-60020 |
— | ||
|
62223C
|
62223C
62223-60010
Glass, Side Window, Rear Lh
[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE |
62223-60010 |
— | ||
|
62223C
|
62223C
62223-60020 Glass, Side Window, Rear Lh[01.2007 - 08.2016] HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62223-60020 |
US $49.10 |
||
|
62229
|
62229
62229-95J00 Packing, Side Window[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62229-95J00 |
US $2.15 |
||
|
62229A
|
62229A
62229-95J00 Packing, Side Window[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62229-95J00 |
US $2.15 |
||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62249-95700 |
from US $1.50 |
||
|
62249A
|
62249A
62249-95700 Plate, Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62249-95700 |
from US $1.50 |
||
|
62252
|
62252
62252-90K00 Weatherstrip, Side Window, RhSIDE WINDOW, RH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD |
62252-90K00 |
from US $49.94 |
||
|
62252A
|
62252A
62252-90K00 Weatherstrip, Side Window, RhSIDE WINDOW, RH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD |
62252-90K00 |
from US $49.94 |
||
|
62269
|
62269
62269-90K01 Film, Side Window Frame[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62269-90K01 |
US $2.15 |
||
|
62269A
|
62269A
62269-90K01 Film, Side Window Frame[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62269-90K01 |
US $2.15 |
||
|
62279A
|
62279A
62279-90K00 Spacer, Side Window Frame, Upper[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62279-90K00 |
US $5.56 |
||
|
62279B
|
62279B
62279-90K00 Spacer, Side Window Frame, Upper[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62279-90K00 |
US $5.56 |
||
|
62375B
|
62375B
62375-90K00-B0 Clip, Side Window, No.1SIDE WINDOW, NO.1 [01.2007 - 08.2016] VDJ78..LX LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS,LT.GRAY,TRIM1#,4# |
62375-90K00-B0 |
from US $27.63 |
||
|
62375D
|
62375D
62375-90K00-B0 Clip, Side Window, No.1SIDE WINDOW, NO.1 [01.2007 - 08.2016] VDJ78..LX LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS,LT.GRAY,TRIM1#,4# |
62375-90K00-B0 |
from US $27.63 |
||
|
62471K
|
62471K
62471-60320 Run, Side Window, RhSIDE WINDOW, RH [06.2014 - 08.2016] VDJ78..LX; GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62471-60320 |
from US $49.60 |
||
|
62481C
|
62481C
62481-60010 Run, Side Window, LhSIDE WINDOW, LH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62481-60010 |
from US $49.60 |
||
|
62705A
|
62705A
62705-60050 Frame Sub-Assy, Quarter Window, RhQUARTER WINDOW, RH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62705-60050 |
from US $206.75 |
||
|
62706A
|
62706A
62706-60050 Frame Sub-Assy, Quarter Window, LhQUARTER WINDOW, LH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62706-60050 |
from US $206.75 |
||
|
62711
|
62711
62711-60420 Glass, Quarter Window, RhQUARTER WINDOW, RH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=3.5,GREEN |
62711-60420 |
US $144.61 |
||
|
62711K
|
62711K
62711-60430
Glass, Quarter Window, Front Rh
[01.2007 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62711-60430 |
— | ||
|
62711K
|
62711K
62711-60450
Glass, Quarter Window, Front Rh
[01.2007 - 08.2016] HZJ78;GRJ78..LHD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62711-60450 |
— | ||
|
62712
|
62712
62712-60350 Glass, Quarter Window, LhQUARTER WINDOW, LH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=3.5,GREEN |
62712-60350 |
US $144.67 |
||
|
62712L
|
62712L
62712-60360
Glass, Quarter Window, Front Lh
[01.2007 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62712-60360 |
— | ||
|
62712L
|
62712L
62712-60380
Glass, Quarter Window, Front Lh
[01.2007 - 08.2016] HZJ78;GRJ78..LHD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62712-60380 |
— | ||
|
62713
|
62713
62713-60170
Glass, Quarter Window, Rear Rh
[01.2007 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62713-60170 |
— | ||
|
62713
|
62713
62713-60180
Glass, Quarter Window, Rear Rh
[01.2007 - 08.2016] HZJ78;GRJ78..LHD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62713-60180 |
— | ||
|
62714
|
62714
62714-60160 Glass, Quarter Window, Rear LhQUARTER WINDOW, REAR LH [01.2007 - 08.2016] VDJ78..LX *TEM,T=4.0,GREEN; GRJ78..LHD;HZJ78,VDJ78..STD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE |
62714-60160 |
US $126.67 |
||
|
62714
|
62714
62714-60170
Glass, Quarter Window, Rear Lh
[01.2007 - 08.2016] HZJ78;GRJ78..LHD *TEM,T=4.0,GREEN,REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62714-60170 |
— | ||
|
62724C
|
62724C
62724-95J05 Stop, Side Window Glass[06.2014 - 08.2016] VDJ78..LX; GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62724-95J05 |
US $2.33 |
||
|
62724D
|
62724D
62724-95J05 Stop, Side Window Glass[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62724-95J05 |
US $2.33 |
||
|
62724E
|
62724E
62724-95J05 Stop, Side Window Glass[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62724-95J05 |
US $2.33 |
||
|
62724F
|
62724F
62724-95J05 Stop, Side Window Glass[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62724-95J05 |
US $2.33 |
||
|
62726B
|
62726B
62729-90K01 Pad, Window Center Sash[06.2014 - 08.2016] VDJ78..LX; GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62729-90K01 |
US $3.58 |
||
|
62726C
|
62726C
62729-90K01 Pad, Window Center Sash[01.2007 - 06.2014] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE |
62729-90K01 |
US $3.58 |
||
|
62729C
|
62729C
62729-90K01 Pad, Window Center Sash[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62729-90K01 |
US $3.58 |
||
|
62729D
|
62729D
62729-90K01 Pad, Window Center Sash[01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62729-90K01 |
US $3.58 |
||
|
62741
|
62741
62741-90K03 Weatherstrip, Quarter Window, RhQUARTER WINDOW, RH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD |
62741-90K03 |
from US $49.02 |
||
|
62742
|
62742
62741-90K03 Weatherstrip, Quarter Window, RhQUARTER WINDOW, RH [01.2007 - 08.2016] GRJ78..LHD;HZJ78,VDJ78..STD |
62741-90K03 |
from US $49.02 |
||
|
62755F
|
62755F
62755-60030 Run, Quarter Window, RhQUARTER WINDOW, RH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62755-60030 |
from US $57.29 |
||
|
62756E
|
62756E
62756-60030 Run, Quarter Window, LhQUARTER WINDOW, LH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62756-60030 |
from US $57.29 |
||
|
62775A
|
62775A
62375-90K00-B0 Clip, Side Window, No.1SIDE WINDOW, NO.1 [01.2007 - 08.2016] VDJ78..LX LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS,LT.GRAY,TRIM1#,4# |
62375-90K00-B0 |
from US $27.63 |
||
|
62775B
|
62775B
62375-90K00-B0 Clip, Side Window, No.1SIDE WINDOW, NO.1 [01.2007 - 08.2016] VDJ78..LX LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,LT.GRAY,TRIM1#,4#; FZJ78,GRJ78,HZJ78 REAR QUARTER GLASS-SLIDE & FROSTED GLASS,LT.GRAY,TRIM1#,4# |
62375-90K00-B0 |
from US $27.63 |
||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62792-95A00 |
from US $1.58 |
||
|
62792C
|
62792C
62792-95A00 Packing, Side Rear Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62792-95A00 |
from US $1.58 |
||
|
62793B
|
62793B
62793-95704 Retainer, Side Window Lock, No.1[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62793-95704 |
from US $6.26 |
||
|
62793C
|
62793C
62793-95704 Retainer, Side Window Lock, No.1[01.2007 - 08.2016] GRJ71,VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
62793-95704 |
from US $6.26 |
||
|
62910E
|
62910E
62910-60040 Lock Assy, Quarter Or Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX FRONT; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,FRONT; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS,FRONT |
62910-60040 |
US $11.83 |
||
|
62910E
|
62910E
62920-60010 Lock Assy, Quarter Or Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX REAR; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,REAR; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS,REAR |
62920-60010 |
from US $6.84 |
||
|
62910J
|
62910J
62910-60040 Lock Assy, Quarter Or Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX FRONT; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,FRONT; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS,FRONT |
62910-60040 |
US $11.83 |
||
|
62910J
|
62910J
62920-60010 Lock Assy, Quarter Or Side Window, Rh[01.2007 - 08.2016] GRJ71,VDJ78..LX REAR; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE,REAR; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS,REAR |
62920-60010 |
from US $6.84 |
||
|
67045A
|
67045A
67045-90K02 Frame Sub-Assy, Side Front Window, Center RhSIDE FRONT WINDOW, CENTER RH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
67045-90K02 |
from US $9.83 |
||
|
67046
|
67046
67046-90K02 Frame Sub-Assy, Side Front Window, Center LhSIDE FRONT WINDOW, CENTER LH [01.2007 - 08.2016] VDJ78..LX; GRJ78..LHD;HZJ78,VDJ78..STD REAR QUARTER GLASS-SLIDE; HZJ78;GRJ78..LHD REAR QUARTER GLASS-SLIDE & FROSTED GLASS |
67046-90K02 |
from US $9.83 |
||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
US $1.61 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.80 |
||
|
9046805089
|
9046805089
90468-05089 CLIP |
90468-05089 |
from US $0.92 |
||
|
9354083008
|
9354083008
93540-83008 SCREW, TAPPING |
93540-83008 |
US $1.25 |
