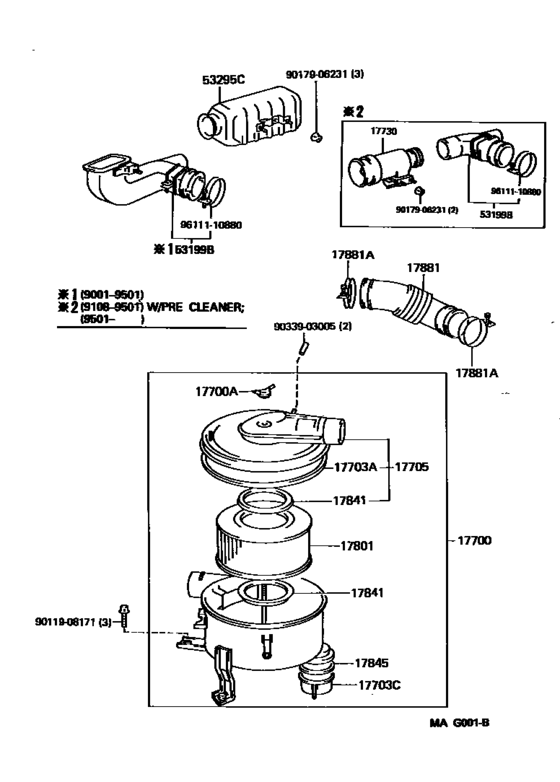

Air Cleaner ([01.1990 - ] (9001- )1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-17020 Cleaner Assy, Air[01.1990 - 08.1993] 1HZ..HZJ80 |
17700-17020 |
US $698.88 |
||
| replacement | |||||
|
17700
|
17700
17700-17022 Cleaner Assy, Air[01.1990 - 08.1993] 1HZ..HZJ80 |
17700-17022 |
US $473.20 |
||
|
17700
|
17700
17700-17021 Cleaner Assy, Air[08.1993 - 01.1995] 1HZ..HZJ80 |
17700-17021 |
US $471.74 |
||
| replacement | |||||
|
17700
|
17700
17700-17022 Cleaner Assy, Air[08.1993 - 01.1995] 1HZ..HZJ80 |
17700-17022 |
US $473.20 |
||
|
17700
|
17700
17700-17022 Cleaner Assy, Air[01.1995 - 01.1998] 1HZ..HZJ80 |
17700-17022 |
US $473.20 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
90175-08008 |
from US $2.45 |
||
|
17703A
|
17703A
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
17845-61011 |
— | ||
|
17703C
|
17703C
17703-68010
Case Sub-Assy, Bottom Air Cleaner Filter
[01.1990 - 01.1995] 1H#..HDJ80,HZJ80 |
17703-68010 |
— | ||
| replacement | |||||
|
17703C
|
17703C
17703-17010 Cap Sub-Assy, Dust[01.1990 - 01.1995] 1H#..HDJ80,HZJ80 |
17703-17010 |
from US $11.51 |
||
|
17705
|
17705
17705-17020
Cap Sub-Assy, Air Cleaner
[01.1990 - 08.1993] 1HZ..HZJ80 |
17705-17020 |
— | ||
|
17705
|
17705
17705-17090
Cap Sub-Assy, Air Cleaner
[08.1993 - 01.1998] 1HZ..HZJ80 |
17705-17090 |
— | ||
|
17730
|
17730
17730-17010 Precleaner Assy, Air W/hoseAIR W/HOSE [08.1991 - 01.1995] 1HZ..HZJ80..SOB |
17730-17010 |
US $147.06 |
||
|
17801
|
17801
17801-68020 Element Sub-Assy, Air Cleaner Filter[01.1990 - 01.1998] 3FE..FJ80; 1HZ..HZJ80 |
17801-68020 |
from US $56.75 |
||
|
17841
|
17841
17841-68010 Gasket, Filter Element[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
17841-68010 |
from US $2.80 |
||
|
17845
|
17845
17845-68030 Gasket(For Bottom Air Cleaner Filter Case)[01.1990 - 01.1995] 1H#..HDJ80,HZJ80 |
17845-68030 |
from US $2.27 |
||
|
17881
|
17881
17881-17020 Hose, Air Cleaner, No.1[01.1990 - 01.1998] 1HZ..HZJ80 |
17881-17020 |
from US $62.49 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1990 - 01.1998] 1HZ..HZJ80 |
96111-10800 |
from US $2.87 |
||
|
53199B
|
53199B
53207-60030
Duct Sub-Assy, Cool Air Intake
[01.1990 - 08.1992] HDJ80,HZJ80 |
53207-60030 |
— | ||
|
53199B
|
53199B
53207-60090
Duct Sub-Assy, Cool Air Intake
[08.1991 - 08.1992] HZJ80..SOB CYCLONE & W(PRE-CLEANER) |
53207-60090 |
— | ||
|
53199B
|
53199B
53207-60101
Duct Sub-Assy, Cool Air Intake
[08.1992 - 01.1995] FZJ80; HDJ80,HZJ80 |
53207-60101 |
— | ||
|
53199B
|
53199B
53207-60121
Duct Sub-Assy, Cool Air Intake
[08.1992 - 01.1995] HZJ80..SOB CYCLONE & W(PRE-CLEANER) |
53207-60121 |
— | ||
|
53295C
|
53295C
53295-60010 Silencer, Cool Air Intake[01.1990 - 01.1998] FZJ80; HZJ80 |
53295-60010 |
US $47.35 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017906231
|
9017906231
90179-06231
Clip(For Front Bumper), No.1
|
90179-06231 |
— | ||
| replacement | |||||
|
9017906231
|
9017906231
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9611110880
|
9611110880
96111-10880 Clamp(For Air Intake Rubber Seal) |
96111-10880 |
from US $8.57 |
||
