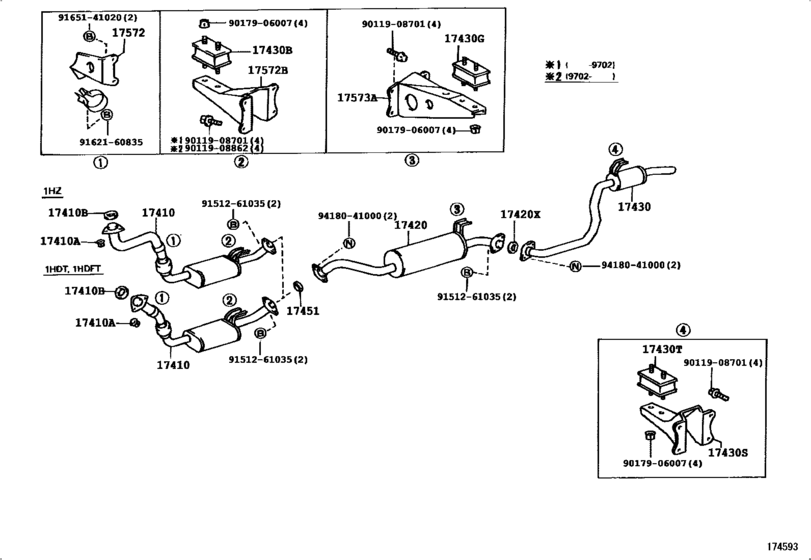

Exhaust Pipe ([01.1990 - ] (9001- )1HD#,1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-17030 Pipe Assy, Exhaust, Front[01.1990 - 04.1991] 1HZ..HZJ80 |
17401-17030 |
US $416.42 |
||
| replacement | |||||
|
17410
|
17410
17401-17031 Pipe Assy, Exhaust, Front[01.1990 - 04.1991] 1HZ..HZJ80 |
17401-17031 |
from US $237.35 |
||
|
17410
|
17410
17401-17031 Pipe Assy, Exhaust, Front[04.1991 - 01.1998] 1HZ..HZJ80 |
17401-17031 |
from US $237.35 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
90179-10070 |
from US $1.33 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[01.1990 - 01.1998] 1HZ..HZJ80 |
90917-06059 |
from US $4.64 |
||
|
17420
|
17420
17403-17020 Pipe Assy, Exhaust, Center[01.1990 - 01.1998] 1HZ..HZJ80 |
17403-17020 |
US $455.73 |
||
|
17420X
|
17420X
90917-06054 Gasket, Exhaust Pipe[01.1990 - 02.1993] 1H#..HDJ80,HZJ80 |
90917-06054 |
from US $3.82 |
||
|
17420X
|
17420X
90917-06076 Gasket, Exhaust Pipe, Center[02.1993 - 01.1998] 1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80 |
90917-06076 |
from US $6.27 |
||
|
17430
|
17430
17405-17020
Pipe Assy, Exhaust, Tail
[01.1990 - 05.1996] 1HD#,1HZ..HDJ80,HZJ80 |
17405-17020 |
— | ||
|
17430B
|
17430B
17567-17010 Cushion, Exhaust Pipe Center, Rear[01.1990 - 01.1998] 1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80 |
17567-17010 |
from US $10.66 |
||
|
17430G
|
17430G
17567-17010 Cushion, Exhaust Pipe Center, Rear[01.1990 - 01.1998] 1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80 |
17567-17010 |
from US $10.66 |
||
|
17430S
|
17430S
17574-61080 Bracket, Exhaust Tail Pipe (For Rear)[01.1990 - 05.1996] 1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80 |
17574-61080 |
from US $20.18 |
||
|
17430T
|
17430T
17567-17010 Cushion, Exhaust Pipe Center, Rear[01.1990 - 01.1998] 1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80 |
17567-17010 |
from US $10.66 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[01.1990 - 02.1993] 1H#..HDJ80,HZJ80 |
90917-06054 |
from US $3.82 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[02.1993 - 01.1995] 1H#..HDJ80,HZJ80 |
90917-06076 |
from US $6.27 |
||
|
17572
|
17572
17571-17010
Bracket, Exhaust Pipe No.1 Support
[01.1990 - 01.1998] 1HZ..HZJ80 |
17571-17010 |
— | ||
|
17572B
|
17572B
17572-17010
Bracket, Exhaust Pipe Support, No.2
[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
17572-17010 |
— | ||
|
17573A
|
17573A
17573-61060 Bracket, Exhaust Pipe Support, No.3[01.1990 - 01.1998] 1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80 |
17573-61060 |
from US $32.76 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9011908862
|
9011908862
90119-08862 BOLT WWASHER |
90119-08862 |
from US $2.01 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9162160835
|
9162160835
91621-60835
BOLT
|
91621-60835 |
— | ||
| replacement | |||||
|
9162160835
|
9162160835
91651-B0835 BOLT |
91651-B0835 |
US $1.79 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
US $1.61 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
