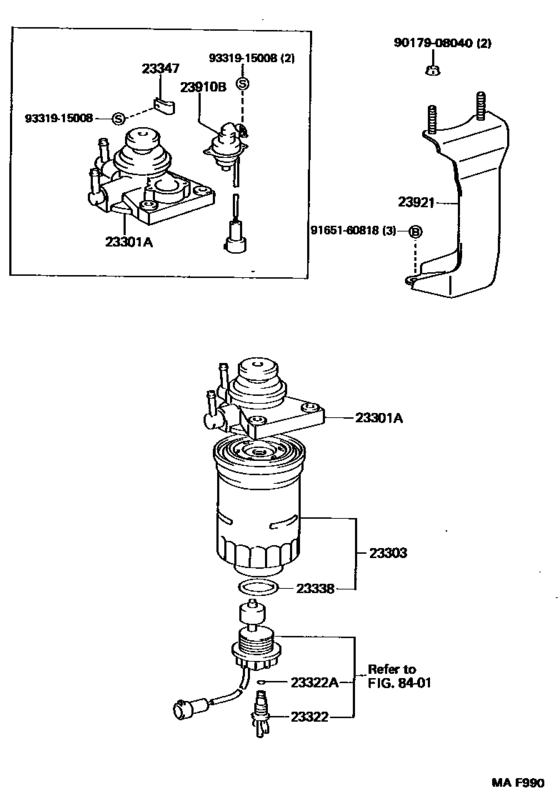

Fuel Filter ([01.1990 - ] (9001- )1HDT,1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23301A
|
23301A
23301-17010 Cap Assy, Fuel Filter[01.1990 - 08.1992] 1HZ..HZJ80 |
23301-17010 |
from US $108 |
||
|
23301A
|
23301A
23301-17020
Cap Assy, Fuel Filter
[01.1990 - 08.1992] 1HZ..HZJ80 W(FUEL HEATER) |
23301-17020 |
— | ||
|
23301A
|
23301A
23301-17150 Cap Assy, Fuel Filter[08.1992 - 01.1995] 1HZ..HZJ80 |
23301-17150 |
US $182 |
||
|
23301A
|
23301A
23301-17160 Cap Assy, Fuel Filter[08.1992 - 03.1993] 1HZ..HZJ80 W(FUEL HEATER) |
23301-17160 |
US $182 |
||
| replacement | |||||
|
23301A
|
23301A
23301-17161
Cap Assy, Fuel Filter
[08.1992 - 03.1993] 1HZ..HZJ80 W(FUEL HEATER) |
23301-17161 |
— | ||
|
23301A
|
23301A
23301-17161
Cap Assy, Fuel Filter
[03.1993 - 01.1995] 1HZ..HZJ80 W(FUEL HEATER) |
23301-17161 |
— | ||
|
23301A
|
23301A
23380-17190
Cap Assy, Fuel Filter
[03.1995 - 01.1998] 1HZ..HZJ80 |
23380-17190 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23303-64010 |
from US $51.47 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23322-64010 |
from US $7.18 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23344-64010 |
from US $1.54 |
||
|
23347
|
23347
23347-54010
Clip, Cord
[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
23347-54010 |
— | ||
|
23910B
|
23910B
23910-17020
Heater Assy, Fuel
[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
23910-17020 |
— | ||
|
23910B
|
23910B
23910-17040
Heater Assy, Fuel
[08.1992 - 02.1993] 1H#..HDJ80,HZJ80 W(FUEL HEATER) |
23910-17040 |
— | ||
|
23921
|
23921
23904-17010
Support, Fuel Filter
[01.1990 - 05.1992] 1H#..HDJ80,HZJ80 |
23904-17010 |
— | ||
| replacement | |||||
|
23921
|
23921
23904-17011
Support, Fuel Filter
[01.1990 - 05.1992] 1H#..HDJ80,HZJ80 |
23904-17011 |
— | ||
|
23921
|
23921
23904-17011
Support, Fuel Filter
[05.1992 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23904-17011 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.08 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
