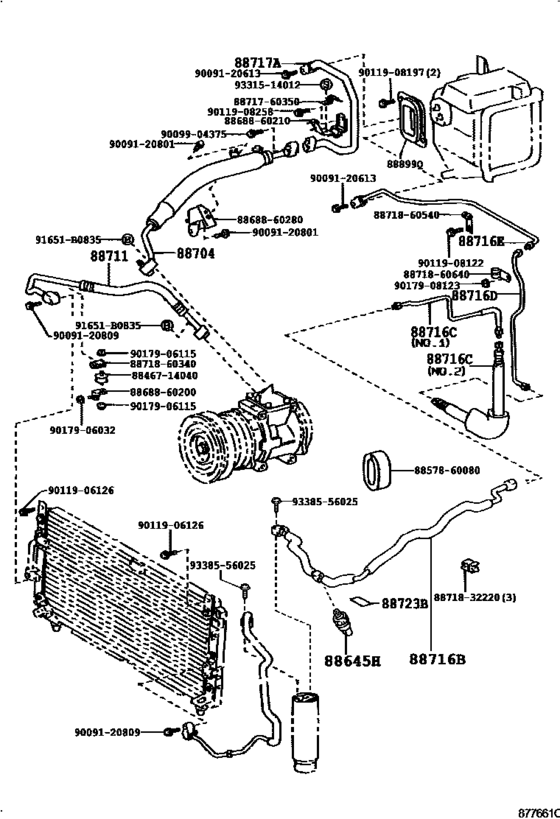

Heating & Air Conditioning - Cooler Piping ([05.1993 - ] (9305- )LHD) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88645H
|
88645H
88645-60010
Switch, Pressure No.1
[01.1990 - 08.1992] HDJ80,HZJ80..LHD SUCTION |
88645-60010 |
— | ||
|
88645H
|
88645H
88645-60020
Switch, Pressure No.1
[01.1990 - 08.1992] HDJ80,HZJ80..LHD LIQUID; FJ80;HDJ80..RHD |
88645-60020 |
— | ||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88645-60030 |
from US $85.26 |
||
|
88704
|
88704
88704-60010
Hose Sub-Assy, Suction
[01.1990 - 08.1992] HDJ80,HZJ80..LHD |
88704-60010 |
— | ||
|
88704
|
88704
88704-60040
Hose Sub-Assy, Suction
[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88704-60040 |
— | ||
|
88711
|
88711
88711-60100
Hose, Cooler Refrigerant Discharge, No.1
[01.1990 - 12.1992] HDJ80,HZJ80..LHD |
88711-60100 |
— | ||
| replacement | |||||
|
88711
|
88711
88711-60110
Hose, Cooler Refrigerant Discharge, No.1
[01.1990 - 12.1992] HDJ80,HZJ80..LHD |
88711-60110 |
— | ||
|
88711
|
88711
88711-60110
Hose, Cooler Refrigerant Discharge, No.1
[12.1992 - 05.1993] HDJ80..RHD; HDJ80,HZJ80..LHD |
88711-60110 |
— | ||
|
88711
|
88711
88711-60350
Hose, Cooler Refrigerant Discharge, No.1
[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88711-60350 |
— | ||
|
88711
|
88711
88711-60400 Hose, Cooler Refrigerant Discharge, No.1[03.1995 - 01.1998] HZJ80 |
88711-60400 |
from US $193.94 |
||
|
88716B
|
88716B
88716-60300
Pipe, Cooler Refrigerant Liquid, B
[01.1990 - 08.1992] HDJ80,HZJ80 |
88716-60300 |
— | ||
|
88716B
|
88716B
88716-6A380
Pipe, Cooler Refrigerant Liquid, B
[05.1993 - 01.1995] HDJ80..ATM;HDJ80,HZJ80..LHD..MTM |
88716-6A380 |
— | ||
| replacement | |||||
|
88716B
|
88716B
88716-6A410
Pipe, Cooler Refrigerant Liquid, B
[05.1993 - 01.1995] HDJ80..ATM;HDJ80,HZJ80..LHD..MTM |
88716-6A410 |
— | ||
|
88716B
|
88716B
88716-6A410
Pipe, Cooler Refrigerant Liquid, B
[03.1995 - 01.1998] FZJ80,HZJ80 |
88716-6A410 |
— | ||
|
88716C
|
88716C
88721-60080 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1992 - 05.1993] FZJ80 NO.2; HDJ80,HZJ80..LHD NO.2 |
88721-60080 |
US $142.69 |
||
|
88716C
|
88716C
88721-60100
Pipe, Cooler Refrigerant Liquid, C
[05.1993 - 01.1995] HDJ80,HZJ80..LHD NO.2 |
88721-60100 |
— | ||
|
88716C
|
88716C
88726-60120 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1992 - 05.1993] FZJ80 NO.1; HDJ80,HZJ80..LHD NO.1 |
88726-60120 |
US $44.99 |
||
|
88716C
|
88716C
88726-60280
Pipe, Cooler Refrigerant Liquid, C
[05.1993 - 01.1995] HDJ80,HZJ80..LHD NO.1 |
88726-60280 |
— | ||
|
88716D
|
88716D
88726-60130 Pipe, Cooler Refrigerant Liquid, DCOOLER REFRIGERANT LIQUID, D [08.1992 - 05.1993] HDJ80,HZJ80..LHD |
88726-60130 |
US $40.91 |
||
|
88716D
|
88716D
88726-60310
Pipe, Cooler Refrigerant Liquid, D
[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88726-60310 |
— | ||
|
88716E
|
88716E
88726-60020
Pipe, Cooler Refrigerant Liquid, E
[01.1990 - 08.1992] FJ80,HDJ80,HZJ80..LHD |
88726-60020 |
— | ||
|
88716E
|
88716E
88726-60110 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [01.1990 - 08.1992] HZJ80..MTM COLD SPEC; HDJ80..GX;FJ80,HZJ80..ATM SINGLE DEALER OPT |
88726-60110 |
US $78.62 |
||
|
88716E
|
88716E
88726-60140
Pipe, Cooler Refrigerant Liquid, E
[08.1992 - 05.1993] FZJ80,HDJ80,HZJ80..LHD |
88726-60140 |
— | ||
|
88716E
|
88716E
88726-60250
Pipe, Cooler Refrigerant Liquid, E
[05.1993 - 01.1995] FZJ80,HDJ80,HZJ80..LHD |
88726-60250 |
— | ||
|
88716E
|
88716E
88726-60300
Pipe, Cooler Refrigerant Liquid, E
[05.1993 - 01.1995] HZJ80 COLD SPEC |
88726-60300 |
— | ||
|
88716E
|
88716E
88726-60411
Pipe, Cooler Refrigerant Liquid, E
[03.1995 - 01.1998] HZJ80 |
88726-60411 |
— | ||
|
88717A
|
88717A
88717-60230
Pipe, Cooler Refrigerant Suction, A
[01.1990 - 05.1993] HDJ80,HZJ80..LHD |
88717-60230 |
— | ||
|
88717A
|
88717A
88717-60690
Pipe, Cooler Refrigerant Suction, A
[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88717-60690 |
— | ||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[05.1993 - 01.1995] HDJ80,HZJ80..LHD |
88723-20040 |
from US $2.37 |
||
|
88723B
|
88723B
88723-30030
Label, Cooler Service Caution
[01.1990 - 08.1992] FJ80,HDJ80,HZJ80 |
88723-30030 |
— | ||
|
88899Q
|
88899Q
88899-60050 Plate, Cover[01.1990 - 08.1992] HZJ80..STD DEALER OPTION |
88899-60050 |
US $8.21 |
||
|
88899Q
|
88899Q
88899-60060
Plate, Cover
[01.1990 - 08.1991] FJ80,HDJ80,HZJ80..LHD W/O(AIR CONDITIONER) |
88899-60060 |
— | ||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.79 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8857860080
|
8857860080
88578-60080 Paking, Cooler Air Duct |
88578-60080 |
US $6.99 |
||
|
8868860200
|
8868860200
88688-60200
Bracket, Cooler Diaphragm
|
88688-60200 |
— | ||
|
8868860210
|
8868860210
88688-60210
Bracket, Cooler Diaphragm
|
88688-60210 |
— | ||
|
8868860280
|
8868860280
88688-60280
Bracket, Cooler Diaphragm
|
88688-60280 |
— | ||
|
8871760350
|
8871760350
88717-60350 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A |
88717-60350 |
US $135.41 |
||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
8871860340
|
8871860340
88718-60340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60340 |
— | ||
|
8871860540
|
8871860540
88718-60540
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60540 |
— | ||
|
8871860640
|
8871860640
88718-60640
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60640 |
— | ||
|
9009120613
|
9009120613
90091-20613
BOLT
|
90091-20613 |
— | ||
|
9009120801
|
9009120801
90091-20801
New Genuine Part
|
90091-20801 |
— | ||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9009904375
|
9009904375
90099-04375
New Genuine Part
|
90099-04375 |
— | ||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9011908122
|
9011908122
90119-08122 New Genuine Part |
90119-08122 |
US $1.75 |
||
| replacement | |||||
|
9011908122
|
9011908122
90119-08C00 New Genuine Part |
90119-08C00 |
US $1.43 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $3.05 |
||
|
9011908258
|
9011908258
90119-08258 New Genuine Part |
90119-08258 |
US $1.09 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
