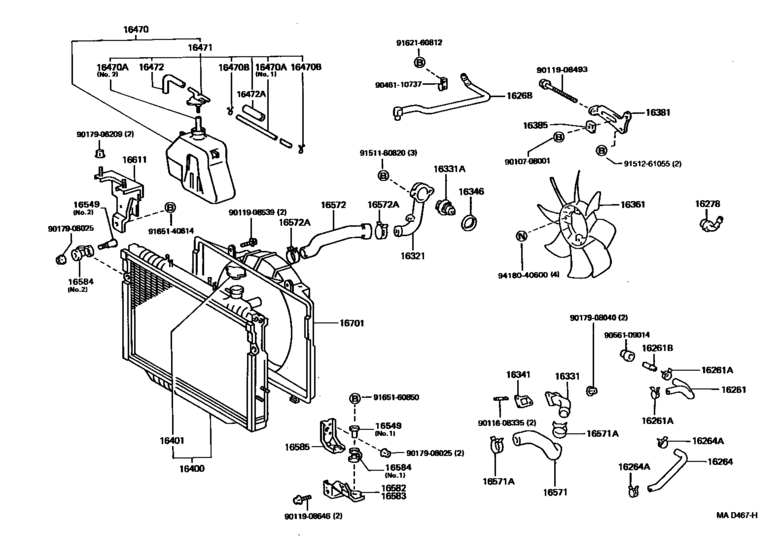

Radiator & Water Outlet ([01.1990 - 08.1996] (9001-9608)1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-17010 Hose, Water By-Pass[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
16261-17010 |
from US $7.60 |
||
|
16261A
|
16261A
90467-15022 Clip Or Clamp(For Ventilation Hose)[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
90467-15022 |
from US $1.05 |
||
|
16261B
|
16261B
90406-10014 Union(For Water By-Pass Hose)[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
90406-10014 |
from US $3.76 |
||
|
16264
|
16264
16264-17010
Hose, Water By-Pass, No.2
[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
16264-17010 |
— | ||
| replacement | |||||
|
16264
|
16264
16264-17011 Hose, Water By-Pass, No.2[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
16264-17011 |
from US $6.31 |
||
|
16264
|
16264
16264-17011 Hose, Water By-Pass, No.2[05.1996 - 01.1998] 1H#..HDJ80,HZJ80 |
16264-17011 |
from US $6.31 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[01.1990 - 01.1995] 1HDT..HDJ80; 1HZ..HZJ80 COLD SPEC |
90467-15022 |
from US $1.05 |
||
|
16268
|
16268
16268-17010 Pipe, Water By-Pass, No.1[01.1990 - 01.1998] 1HZ..HZJ80 |
16268-17010 |
from US $40.76 |
||
|
16278
|
16278
16278-17010 Pipe, Water By-Pass, No.2[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16278-17010 |
from US $14.40 |
||
|
16321
|
16321
16321-17010 Inlet, Water[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16321-17010 |
from US $73.61 |
||
|
16331
|
16331
16331-17010 Outlet, Water[01.1990 - 01.1998] 1HZ..HZJ80 |
16331-17010 |
from US $45.43 |
||
|
16331A
|
16331A
90916-03089 Thermostat[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 *WAX 76-90 |
90916-03089 |
from US $19.74 |
||
|
16341
|
16341
16341-17010 Gasket, Water Outlet[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16341-17010 |
from US $2.53 |
||
|
16346
|
16346
16346-66020 Gasket, Thermostat[01.1990 - 01.1998] 1FZFE..FZJ80; 1HD#,1HZ..HDJ80,HZJ80 |
16346-66020 |
from US $3.15 |
||
|
16361
|
16361
16361-17010 Fan[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16361-17010 |
from US $141.36 |
||
|
16381
|
16381
16381-17010 Bar, Fan Belt Adjusting[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16381-17010 |
from US $7.96 |
||
|
16385
|
16385
16385-17010 Slider, Fan Belt Adjusting[01.1990 - 01.1998] 1FZFE..FZJ80; 1HD#,1HZ..HDJ80,HZJ80 |
16385-17010 |
from US $5.21 |
||
|
16400
|
16400
16400-17020 Radiator Assy[01.1990 - 08.1996] 1HZ..HZJ80..MTM |
16400-17020 |
US $506.69 |
||
|
16400
|
16400
16400-17021 Radiator Assy[08.1996 - 01.1998] 1HZ..HZJ80 |
16400-17021 |
US $525.76 |
||
|
16401
|
16401
16401-54750 Radiator Cap[09.1996 - 01.1998] 1H#..HDJ80,HZJ80 |
16401-54750 |
from US $16.13 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[01.1990 - 09.1996] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[01.1990 - 09.1996] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16401-54750 |
from US $16.13 |
||
|
16470
|
16470
16470-61060
Tank Assy, Radiator Reserve
[01.1990 - 08.1996] 3FE..FJ80; 1HD#,1HZ..HDJ80,HZJ80 |
16470-61060 |
— | ||
|
16470
|
16470
16470-66020 Tank Assy, Radiator Reserve[08.1996 - 01.1998] 1FZFE..FZJ80; 1H#..HDJ80,HZJ80 |
16470-66020 |
from US $82.66 |
||
|
16470A
|
16470A
90099-33466
Hose Or Pipe(For Radiator Reserve Tank)
[01.1990 - 02.1993] 3FE..FJ80 *H,L=210,NO.2; 1H#..HDJ80,HZJ80 *H,L=210,NO.2; 1FZFE..FZJ80 *H,L=210 |
90099-33466 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.1990 - 02.1993] 3FE..FJ80 *H,L=210,NO.2; 1H#..HDJ80,HZJ80 *H,L=210,NO.2; 1FZFE..FZJ80 *H,L=210 |
90445-12078 |
from US $6.57 |
||
|
16470A
|
16470A
90445-12781
Hose Or Pipe(For Radiator Reserve Tank)
[01.1990 - 08.1996] 3FE..FJ80 *H,L=750,NO.1; 1HD#,1HZ..HDJ80,HZJ80 *H,L=750,NO.1 |
90445-12781 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[01.1990 - 08.1996] 3FE..FJ80 *H,L=750,NO.1; 1HD#,1HZ..HDJ80,HZJ80 *H,L=750,NO.1 |
90099-33534 |
US $5.42 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-61040
Cap Sub-Assy, Reserve Tank
[01.1990 - 08.1996] 3FE..FJ80; 1HD#,1HZ..HDJ80,HZJ80 |
16405-61040 |
— | ||
|
16471
|
16471
16405-66020 Cap Sub-Assy, Reserve Tank[08.1996 - 01.1998] 1FZFE..FZJ80; 1H#..HDJ80,HZJ80 |
16405-66020 |
from US $11.97 |
||
|
16472
|
16472
85338-22020 Hose, Breather[01.1990 - 08.1992] 3FE..FJ80; 1H#..HDJ80,HZJ80 |
85338-22020 |
US $2.45 |
||
|
16472
|
16472
85338-70100
Hose, Breather
[03.1993 - 01.1998] 1FZFE..FZJ80; 1HD#,1HZ..HDJ80,HZJ80 |
85338-70100 |
— | ||
|
16472
|
16472
85338-95A01
Hose Or Pipe(For Radiator Reserve Tank)
[08.1992 - 03.1993] 1FZFE..FZJ80; 1H#..HDJ80,HZJ80 |
85338-95A01 |
— | ||
|
16472A
|
16472A
16477-61060
Protector, Hose
[03.1993 - 01.1998] 1FZFE..FZJ80; 1HD#,1HZ..HDJ80,HZJ80 |
16477-61060 |
— | ||
|
16472A
|
16472A
85338-70070
Hose Or Pipe(For Radiator Reserve Tank)
[01.1990 - 03.1993] 1H#..HDJ80,HZJ80; 1FZFE..FZJ80 |
85338-70070 |
— | ||
|
16549
|
16549
16549-61010 Collar, Radiator Support, No.2[01.1990 - 11.1995] 1HD#,1HZ..HDJ80,HZJ80 NO.1; 1FZFE,3FE..FJ80,FZJ80 NO.1 |
16549-61010 |
from US $3.14 |
||
|
16549
|
16549
16549-61020 Collar, Radiator Support, No.2[01.1990 - 08.1996] 1HD#,1HZ..HDJ80,HZJ80 NO.2; 1FZFE,3FE..FJ80,FZJ80 NO.2 |
16549-61020 |
from US $4.58 |
||
|
16571
|
16571
16571-17010 Hose, Radiator, Inlet[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16571-17010 |
from US $15.96 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[01.1990 - 01.1998] 3FE..FJ80; 1HD#,1HZ..HDJ80,HZJ80 |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[01.1990 - 01.1998] 3FE..FJ80; 1HD#,1HZ..HDJ80,HZJ80 |
90466-41008 |
from US $4.07 |
||
|
16572
|
16572
16572-17010 Hose, Radiator, Outlet[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
16572-17010 |
from US $18.30 |
||
|
16572A
|
16572A
96111-10490 Clamp Or Clip, Sub Radiator Hose[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 RADIATOR SIDE |
96111-10490 |
from US $1.97 |
||
|
16572A
|
16572A
96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 ENGINE SIDE |
96111-10530 |
from US $3.55 |
||
|
16582
|
16582
16582-61030 Bracket, Radiator, No.1[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16582-61030 |
US $36.34 |
||
|
16583
|
16583
16583-61030 Bracket, Radiator, No.2[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16583-61030 |
US $36.34 |
||
|
16584
|
16584
16584-61020 Insulator, Radiator Mounting[01.1990 - 11.1995] 1HD#,1HZ..HDJ80,HZJ80 NO.1; 1FZFE,3FE..FJ80,FZJ80 NO.1 |
16584-61020 |
from US $13.97 |
||
|
16584
|
16584
16584-61030
Bush, Radiator Support, No.2
[01.1990 - 08.1996] 1HD#,1HZ..HDJ80,HZJ80 NO.2; 1FZFE,3FE..FJ80,FZJ80 NO.2 |
16584-61030 |
— | ||
| replacement | |||||
|
16584
|
16584
16548-68070 Bush, Radiator Support, No.2[01.1990 - 08.1996] 1HD#,1HZ..HDJ80,HZJ80 NO.2; 1FZFE,3FE..FJ80,FZJ80 NO.2 |
16548-68070 |
from US $3.71 |
||
|
16585
|
16585
16585-61020 Bracket, Radiator, No.3[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16585-61020 |
from US $13.57 |
||
|
16611
|
16611
16611-61040 Bracket, Radiator Reserve Tank[01.1990 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80; 1FZFE,3FE..FJ80,FZJ80 |
16611-61040 |
US $31.62 |
||
|
16701
|
16701
16711-17010 Shroud Sub-Assy, Fan[01.1990 - 08.1996] 1HD#,1HZ..HDJ80,HZJ80 |
16711-17010 |
from US $103.59 |
||
|
16701
|
16701
16711-17011 Shroud Sub-Assy, Fan[08.1996 - 01.1998] 1H#..HDJ80,HZJ80 |
16711-17011 |
from US $117.46 |
||
|
9010708001
|
9010708001
90107-08001
Bolt(for Transaxle Case & Engine Setting)
|
90107-08001 |
— | ||
| replacement | |||||
|
9010708001
|
9010708001
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.82 |
||
|
9011608335
|
9011608335
90116-08335 New Genuine Part |
90116-08335 |
US $1.79 |
||
|
9011908493
|
9011908493
90119-08493 BOLT |
90119-08493 |
from US $1.52 |
||
|
9011908539
|
9011908539
90119-08539 BOLT |
90119-08539 |
US $1.61 |
||
|
9011908646
|
9011908646
90119-08646
New Genuine Part
|
90119-08646 |
— | ||
| replacement | |||||
|
9011908646
|
9011908646
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
9017906209
|
9017906209
90179-06209
New Genuine Part
|
90179-06209 |
— | ||
| replacement | |||||
|
9017906209
|
9017906209
94150-80630 New Genuine Part |
94150-80630 |
US $1.08 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.86 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9046110737
|
9046110737
90461-10737
CLAMP
|
90461-10737 |
— | ||
|
9056109014
|
9056109014
90561-09014 SPACER |
90561-09014 |
from US $4.30 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9151261055
|
9151261055
91512-61055 BOLT, FLANGE |
91512-61055 |
from US $1.31 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165160850
|
9165160850
91651-60850 New Genuine Part |
91651-60850 |
US $2.87 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
