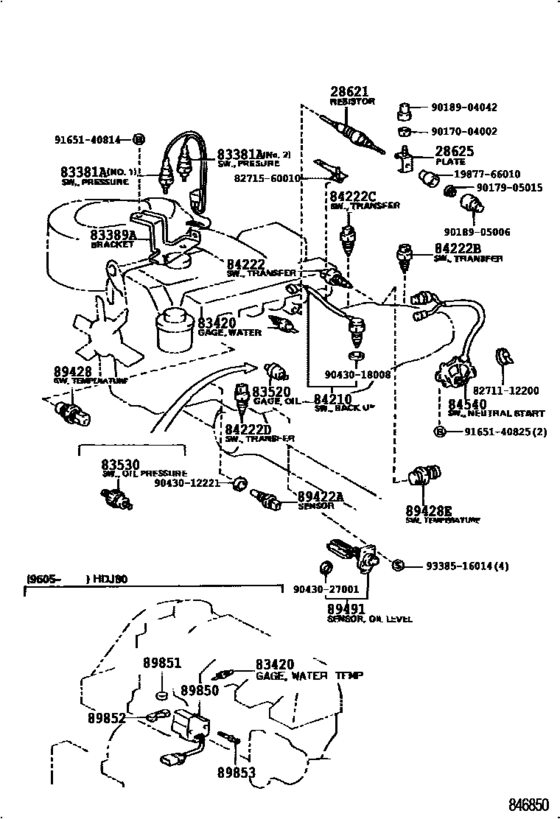

Switch & Relay & Computer ([01.1990 - ] E/G,T/M,T/F & FR DIFF (9001- )HDJ80,HZJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-68010
Resistor, Glow Plug
[01.1990 - 08.1996] 1HDT,1HZ..HDJ80,HZJ80 |
28621-68010 |
— | ||
|
28625
|
28625
28625-68040
Plate, Glow Plug Resistor
[01.1990 - 06.1992] 1H#..HDJ80,HZJ80 |
28625-68040 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 NIPPONDENSO |
83420-16040 |
from US $27.76 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1990 - 08.1992] FJ80,HDJ80,HZJ80 |
83420-20020 |
from US $28.46 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[08.1992 - 06.1995] FZJ80,HDJ80,HZJ80 YAZAKI |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 06.1995] FZJ80,HDJ80,HZJ80 YAZAKI |
83420-16040 |
from US $27.76 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[01.1990 - 01.1998] HZJ80..STD |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[01.1990 - 01.1998] HZJ80..STD |
83530-60030 |
from US $22.91 |
||
|
84210
|
84210
84210-60030 Switch Assy, Back-Up Lamp[01.1990 - 08.1992] HDJ80,HZJ80..MTM |
84210-60030 |
from US $30.07 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 08.1992] FJ80,HDJ80,HZJ80 |
84222-12010 |
from US $54.43 |
||
|
84222C
|
84222C
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 08.1992] FJ80,HDJ80,HZJ80 |
84222-12010 |
from US $54.43 |
||
|
84222D
|
84222D
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 08.1992] FJ80,HDJ80,HZJ80 |
84222-12010 |
from US $54.43 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[01.1990 - 08.1996] HDJ80,HZJ80 |
89422-20010 |
from US $40.66 |
||
|
89491
|
89491
89491-36080 Sensor, Engine Oil Level[08.1992 - 01.1995] HDJ80,HZJ80 |
89491-36080 |
from US $172.43 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271560010
|
8271560010
82715-60010
Bracket,wiring Harness Clamp
|
82715-60010 |
— | ||
|
9017004002
|
9017004002
90170-04002 Nut, Connecting(For Glow Plug) |
90170-04002 |
US $1.25 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.97 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
US $6.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.03 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
