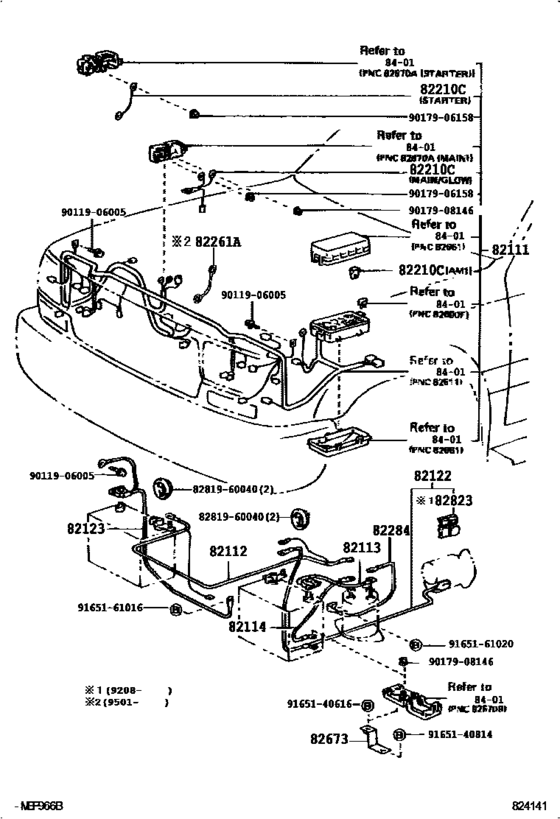

Wiring & Clamp ([01.1990 - ] E/G ROOM WIRE (9001- )HDJ80,HZJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-60180
Wire, Engine Room Main
[01.1990 - 08.1991] HDJ80,HZJ80..LHD |
82111-60180 |
— | ||
|
82111
|
82111
82111-60181
Wire, Engine Room Main
[08.1991 - 08.1992] HDJ80,HZJ80..LHD |
82111-60181 |
— | ||
|
82111
|
82111
82111-60182
Wire, Engine Room Main
[08.1992 - 01.1995] HDJ80,HZJ80..LHD |
82111-60182 |
— | ||
|
82111
|
82111
82111-60380 Wire, Engine Room MainENGINE ROOM MAIN [01.1995 - 03.1995] HZJ80 |
82111-60380 |
US $375.65 |
||
| replacement | |||||
|
82111
|
82111
82111-60381
Wire, Engine Room Main
[01.1995 - 03.1995] HZJ80 |
82111-60381 |
— | ||
|
82111
|
82111
82111-60381
Wire, Engine Room Main
[03.1995 - 01.1998] HZJ80 |
82111-60381 |
— | ||
|
82112
|
82112
82112-60050 Wire, Engine Room, No.2[01.1990 - 05.1996] HDJ80,HZJ80 |
82112-60050 |
US $215.49 |
||
|
82113
|
82113
82113-60010
Wire, Engine Room, No.3
[01.1990 - 05.1996] HDJ80,HZJ80 |
82113-60010 |
— | ||
|
82113
|
82113
82113-60011
Wire, Engine Room, No.3
[08.1996 - 01.1998] HDJ80,HZJ80 |
82113-60011 |
— | ||
|
82114
|
82114
82114-60010 Wire, Engine Room, No.4[01.1990 - 05.1996] HDJ80,HZJ80 |
82114-60010 |
US $31.16 |
||
|
82122
|
82122
82122-60050
Wire, Engine, No.2
[01.1990 - 08.1992] HDJ80,HZJ80 |
82122-60050 |
— | ||
|
82122
|
82122
82122-60051
Wire, Engine, No.2
[08.1992 - 05.1996] HDJ80,HZJ80; HDJ80..TD4;HZJ80..SOB |
82122-60051 |
— | ||
|
82123
|
82123
82123-60040 Wire, Engine, No.3[01.1990 - 01.1995] HDJ80,HZJ80 |
82123-60040 |
US $80.08 |
||
|
82123
|
82123
82123-60041 Wire, Engine, No.3[01.1995 - 05.1996] HDJ80,HZJ80 |
82123-60041 |
US $80.08 |
||
|
82123
|
82123
82123-60042 Wire, Engine, No.3[08.1996 - 01.1998] HDJ80,HZJ80 |
82123-60042 |
US $66.98 |
||
|
82210C
|
82210C
82627-60080
Fusible Link
[01.1995 - 05.1996] HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1; HDJ80..RHD MAIN,GLOW,HEAD,AM1 |
82627-60080 |
— | ||
|
82210C
|
82210C
90982-08190 Fusible Link[08.1992 - 05.1996] FZJ80,HDJ80,HZJ80 60A,TERMINAL:FEMALE; FZJ80,HDJ80..RHD..(EFI,TD4) 60A,TERMINAL:FEMALE |
90982-08190 |
US $13.44 |
||
|
82210C
|
82210C
90982-08206
Fusible Link
[01.1990 - 08.1992] HZJ80..MTM GLOW RESISTER,E/G WIER GLOW; HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW; HDJ80..MTM;HZJ80..ATM GLOW RESISTER |
90982-08206 |
— | ||
|
82210C
|
82210C
90982-08227 Fusible Link[01.1990 - 01.1995] FJ80,FZJ80,HDJ80,HZJ80 50A,TERMINAL:FEMALE,AM1(RELAY BLOCK) |
90982-08227 |
US $7.88 |
||
|
82210C
|
82210C
90982-08265
Fusible Link
[01.1990 - 01.1995] HDJ80,HZJ80 L=110,0.5 GREEN,ST |
90982-08265 |
— | ||
|
82210C
|
82210C
90982-08266
Fusible Link
[01.1990 - 01.1995] HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW |
90982-08266 |
— | ||
|
82261A
|
82261A
82261-60020
Wire, Alternator
[01.1995 - 05.1996] HDJ80,HZJ80; HDJ80..RHD |
82261-60020 |
— | ||
|
82284
|
82284
82284-60010 Wire, Earth[01.1990 - 08.1992] HDJ80,HZJ80 TRANSFER RELAY EARH |
82284-60010 |
US $80.08 |
||
|
82673
|
82673
82673-60010
Bracket, Junction Block
[01.1990 - 08.1992] HDJ80,HZJ80 |
82673-60010 |
— | ||
| replacement | |||||
|
82673
|
82673
82673-60020
Bracket, Junction Block
[01.1990 - 08.1992] HDJ80,HZJ80 |
82673-60020 |
— | ||
|
82673
|
82673
82673-60020
Bracket, Junction Block
[08.1992 - 05.1996] HDJ80,HZJ80; HDJ80..TD4;HZJ80..SOB |
82673-60020 |
— | ||
|
82823
|
82823
82823-30100 Cap, Terminal, No.1[08.1992 - 05.1996] HDJ80,HZJ80; HDJ80..TD4;HZJ80..SOB |
82823-30100 |
US $5.56 |
||
|
8281960040
|
8281960040
82819-60040 Grommet, Wiring Harness |
82819-60040 |
from US $7.60 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
