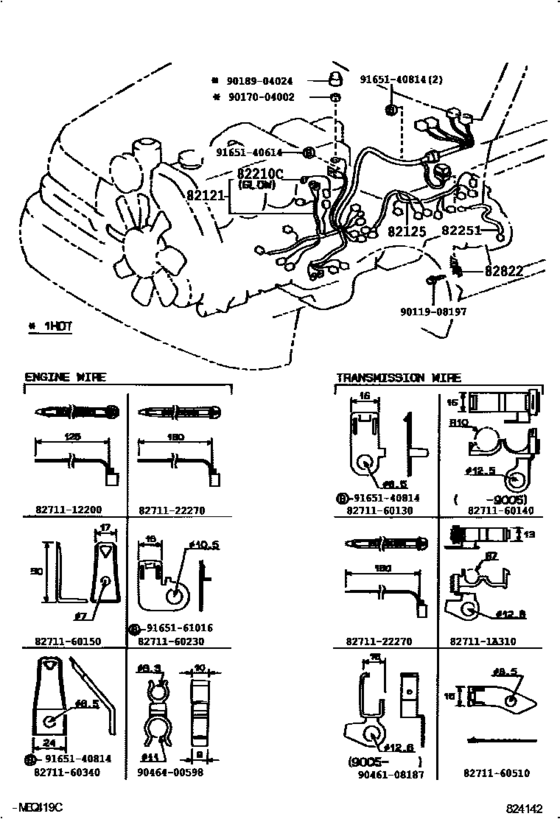

Wiring & Clamp ([01.1990 - 01.1995] E/G WIRE & T/M WIRE (9001-9501)HDJ80,HZJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-60150 Wire, EngineENGINE [01.1990 - 08.1991] HDJ80,HZJ80..LHD..MTM |
82121-60150 |
US $528.53 |
||
|
82121
|
82121
82121-60151 Wire, EngineENGINE [08.1991 - 01.1992] HDJ80,HZJ80..LHD..MTM |
82121-60151 |
US $336.34 |
||
|
82121
|
82121
82121-60152 Wire, EngineENGINE [01.1992 - 08.1992] HDJ80,HZJ80..LHD..MTM |
82121-60152 |
US $336.34 |
||
|
82121
|
82121
82121-60153 Wire, EngineENGINE [08.1992 - 01.1995] HDJ80,HZJ80..LHD..MTM |
82121-60153 |
US $336.34 |
||
|
82121
|
82121
82121-60470 Wire, EngineENGINE [01.1995 - 05.1996] HZJ80 |
82121-60470 |
US $219.86 |
||
|
82121
|
82121
82121-60471 Wire, EngineENGINE [08.1996 - 04.1997] HZJ80 |
82121-60471 |
US $281.01 |
||
| replacement | |||||
|
82121
|
82121
82121-60472 Wire, EngineENGINE [08.1996 - 04.1997] HZJ80 |
82121-60472 |
US $282.46 |
||
|
82121
|
82121
82121-60472 Wire, EngineENGINE [04.1997 - 01.1998] HZJ80 |
82121-60472 |
US $282.46 |
||
|
82125
|
82125
82125-60040
Wire, Transmission
[01.1990 - 08.1991] HDJ80,HZJ80..MTM |
82125-60040 |
— | ||
|
82125
|
82125
82125-60041
Wire, Transmission
[08.1991 - 01.1992] HDJ80,HZJ80..MTM |
82125-60041 |
— | ||
|
82125
|
82125
82125-60042
Wire, Transmission
[01.1992 - 08.1992] HDJ80,HZJ80..MTM |
82125-60042 |
— | ||
|
82125
|
82125
82125-60043
Wire, Transmission
[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80..MTM |
82125-60043 |
— | ||
|
82210C
|
82210C
82627-60080
Fusible Link
[01.1995 - 05.1996] HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1; HDJ80..RHD MAIN,GLOW,HEAD,AM1 |
82627-60080 |
— | ||
|
82210C
|
82210C
90982-08190 Fusible Link[08.1992 - 05.1996] FZJ80,HDJ80,HZJ80 60A,TERMINAL:FEMALE; FZJ80,HDJ80..RHD..(EFI,TD4) 60A,TERMINAL:FEMALE |
90982-08190 |
US $13.44 |
||
|
82210C
|
82210C
90982-08206
Fusible Link
[01.1990 - 08.1992] HZJ80..MTM GLOW RESISTER,E/G WIER GLOW; HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW; HDJ80..MTM;HZJ80..ATM GLOW RESISTER |
90982-08206 |
— | ||
|
82210C
|
82210C
90982-08227 Fusible Link[01.1990 - 01.1995] FJ80,FZJ80,HDJ80,HZJ80 50A,TERMINAL:FEMALE,AM1(RELAY BLOCK) |
90982-08227 |
US $7.88 |
||
|
82210C
|
82210C
90982-08265
Fusible Link
[01.1990 - 01.1995] HDJ80,HZJ80 L=110,0.5 GREEN,ST |
90982-08265 |
— | ||
|
82210C
|
82210C
90982-08266
Fusible Link
[01.1990 - 01.1995] HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW |
90982-08266 |
— | ||
|
82251
|
82251
82251-60040
Wire, Speed Sensor
[08.1992 - 01.1998] FZJ80,HDJ80,HZJ80 |
82251-60040 |
— | ||
|
82822
|
82822
82822-60010 Bracket,connector Block[08.1992 - 01.1995] FZJ80,HDJ80,HZJ80; FZJ80;HZJ80..SOB |
82822-60010 |
US $5.59 |
||
|
827111A310
|
827111A310
82711-1A310
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-1A310 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
8271160130
|
8271160130
82711-60130
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60130 |
— | ||
|
8271160140
|
8271160140
82711-60140
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60140 |
— | ||
|
8271160150
|
8271160150
82711-60150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60150 |
US $4.66 |
||
|
8271160230
|
8271160230
82711-60230
Bracket,wiring Harness Clamp
|
82711-60230 |
— | ||
| replacement | |||||
|
8271160230
|
8271160230
82715-36170 Bracket,wiring Harness Clamp |
82715-36170 |
US $3.35 |
||
|
8271160340
|
8271160340
82711-60340 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60340 |
US $5.68 |
||
|
8271160510
|
8271160510
82711-60510 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60510 |
US $1.92 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $3.05 |
||
|
9017004002
|
9017004002
90170-04002 Nut, Connecting(For Glow Plug) |
90170-04002 |
US $1.25 |
||
|
9018904024
|
9018904024
90189-04024 Grommet, Screw(For Glow Plug) |
90189-04024 |
from US $0.68 |
||
|
9046108187
|
9046108187
90461-08187
New Genuine Part
|
90461-08187 |
— | ||
|
9046400598
|
9046400598
90464-00598 New Genuine Part |
90464-00598 |
US $2.34 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
