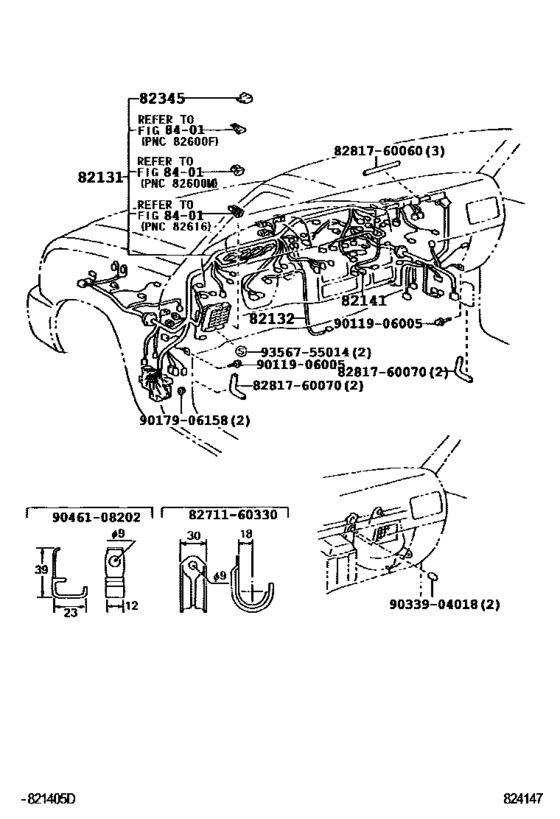

Wiring & Clamp ([01.1995 - ] COWL & INSTRUMENT WIRE (9501- )LHD) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1998
- Sales region
- Europe
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1998
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82131
|
82131
82131-60330 Wire, CowlCOWL [01.1990 - 08.1991] HDJ80,HZJ80..GX,STD |
82131-60330 |
US $2,067.52 |
||
|
82131
|
82131
82131-60331 Wire, CowlCOWL [08.1991 - 08.1992] HDJ80,HZJ80..GX,STD |
82131-60331 |
US $2,023.84 |
||
|
82131
|
82131
82131-60332 Wire, CowlCOWL [08.1992 - 08.1993] HDJ80,HZJ80..GX,STD |
82131-60332 |
US $2,577.12 |
||
|
82131
|
82131
82131-60333 Wire, CowlCOWL [08.1993 - 01.1995] HDJ80,HZJ80..GX,STD |
82131-60333 |
US $2,577.12 |
||
|
82131
|
82131
82135-60180 Wire, CowlCOWL [01.1995 - 03.1995] HZJ80 |
82135-60180 |
US $2,358.72 |
||
| replacement | |||||
|
82131
|
82131
82135-60181 Wire, CowlCOWL [01.1995 - 03.1995] HZJ80 |
82135-60181 |
US $2,358.72 |
||
|
82131
|
82131
82135-60181 Wire, CowlCOWL [03.1995 - 05.1996] HZJ80 |
82135-60181 |
US $2,358.72 |
||
|
82131
|
82131
82135-60183 Wire, CowlCOWL [08.1996 - 07.1997] HZJ80 |
82135-60183 |
US $2,358.72 |
||
|
82131
|
82131
82135-60184 Wire, CowlCOWL [07.1997 - 01.1998] HZJ80 |
82135-60184 |
US $2,373.28 |
||
|
82141
|
82141
82141-60120 Wire, Instrument PanelINSTRUMENT PANEL [01.1990 - 08.1992] FJ80,HDJ80,HZJ80..LHD |
82141-60120 |
US $42.95 |
||
|
82141
|
82141
82141-60121 Wire, Instrument PanelINSTRUMENT PANEL [08.1992 - 01.1995] HDJ80,HZJ80..LHD..MTM |
82141-60121 |
US $55.04 |
||
|
82141
|
82141
82141-60122
Wire, Instrument Panel
[01.1995 - 05.1996] FZJ80,HDJ80,HZJ80..LHD |
82141-60122 |
— | ||
|
82141
|
82141
82141-60123 Wire, Instrument PanelINSTRUMENT PANEL [05.1996 - 01.1998] FZJ80,HDJ80,HZJ80..LHD |
82141-60123 |
US $47.03 |
||
|
82345
|
82345
82345-12050 Diode[08.1992 - 01.1998] FZJ80..SOB..GX;HDJ80,HZJ80..DSL,TD2 NO.1 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-20060 Diode[08.1992 - 01.1998] HDJ80,HZJ80 NO.2 |
82345-20060 |
US $11.01 |
||
|
82345
|
82345
82345-32020 Diode[08.1992 - 01.1998] FZJ80..RHD;HDJ80,HZJ80;FZJ80..GX,STD NO.3 |
82345-32020 |
US $13.45 |
||
|
8271160330
|
8271160330
82711-60330
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60330 |
— | ||
|
8281760060
|
8281760060
82817-60060
Protector, Wiring Harness, No.1
|
82817-60060 |
— | ||
| replacement | |||||
|
8281760060
|
8281760060
82817-60070
Protector, Wiring Harness, No.1
|
82817-60070 |
— | ||
|
8281760070
|
8281760070
82817-60070
Protector, Wiring Harness, No.1
|
82817-60070 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9033904018
|
9033904018
90339-04018 New Genuine Part |
90339-04018 |
US $2.06 |
||
|
9046108202
|
9046108202
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.30 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
