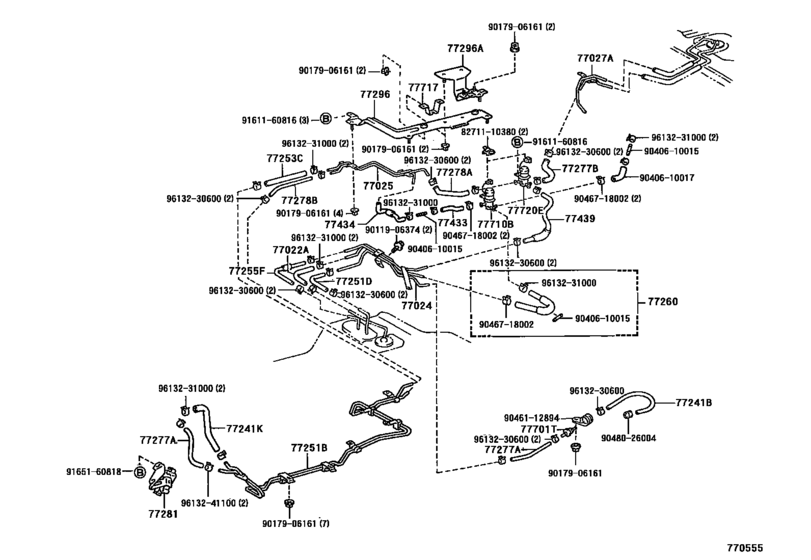

Fuel Tank & Tube ([01.1990 - ] W(SUB-TANK) (9001- )HZJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1999
- Sales region
- General
- Frame
- HZJ80
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77022A
|
77022A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[01.1990 - 08.1992] FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=130 |
95333-06020 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95337-06020 Hose, Differential Pressure Control[01.1990 - 08.1992] FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=130 |
95337-06020 |
from US $10.21 |
||
|
77024
|
77024
77024-60060 Tube Sub-Assy, Fuel Main & Return, FrontFUEL MAIN & RETURN, FRONT [01.1990 - 08.1992] HZJ80 |
77024-60060 |
US $50.96 |
||
|
77025
|
77025
77025-60070
Tube Sub-Assy, Fuel Main & Return, Rear
[01.1990 - 08.1992] HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
77025-60070 |
— | ||
|
77027A
|
77027A
77027-60050
Tube Sub-Assy, Fuel Main & Return, No.3
[01.1990 - 08.1992] HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD |
77027-60050 |
— | ||
|
77241B
|
77241B
77209-60070
Hose, Fuel, No.2 (For Main Tube, No.1)
[05.1990 - 08.1990] HDJ80,HZJ80 L=340 |
77209-60070 |
— | ||
|
77241B
|
77241B
95332-10008
Hose, Fuel, No.2 (For Main Tube, No.1)
[01.1990 - 05.1990] HZJ80 *H,L=80 |
95332-10008 |
— | ||
|
77241K
|
77241K
95332-10048
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[01.1990 - 08.1992] HZJ80 |
95332-10048 |
— | ||
|
77251B
|
77251B
77205-60420
Tube, Fuel Main
[01.1990 - 01.1992] HZJ80 |
77205-60420 |
— | ||
|
77251B
|
77251B
77205-60421
Tube, Fuel Main
[01.1992 - 08.1992] HZJ80 |
77205-60421 |
— | ||
|
77251D
|
77251D
95332-10024 Hose, Fuel(For Fuel Evaporative Separator)[01.1990 - 08.1992] HZJ80 *H,L=240,W(SUB TANK) |
95332-10024 |
US $9.32 |
||
| replacement | |||||
|
77251D
|
77251D
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1990 - 08.1992] HZJ80 *H,L=240,W(SUB TANK) |
95332-10030 |
US $17.30 |
||
|
77251D
|
77251D
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1990 - 08.1992] HZJ80 *H,L=280 |
95332-10030 |
US $17.30 |
||
|
77253C
|
77253C
95332-10018
Hose, Fuel, No.1 (For Main Tube, No.1)
[01.1990 - 08.1992] HZJ80 |
95332-10018 |
— | ||
| replacement | |||||
|
77253C
|
77253C
95338-10018 Hose, Fuel, No.1 (For Main Tube, No.1)FUEL, NO.1(FOR FUEL MAIN TUBE) [01.1990 - 08.1992] HZJ80 |
95338-10018 |
US $13.62 |
||
|
77255F
|
77255F
77250-60130
Hose, Fuel, No.2 (For Fuel Return Tube)
[01.1990 - 08.1992] HDJ80,HZJ80 L=220,W(SUB TANK) |
77250-60130 |
— | ||
|
77255F
|
77255F
95333-06030
Hose, Fuel
[01.1990 - 08.1992] FJ80,FZJ80 *H,L=220; HDJ80,HZJ80 *H,L=220 |
95333-06030 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95338-06030 HOSE, FUEL[01.1990 - 08.1992] FJ80,FZJ80 *H,L=220; HDJ80,HZJ80 *H,L=220 |
95338-06030 |
from US $10.39 |
||
|
77260
|
77260
77260-60140
Hose Assy, Fuel Main
[01.1990 - 08.1992] HZJ80 |
77260-60140 |
— | ||
|
77277A
|
77277A
23274-17020
Hose, Fuel, No.1(For Return Tube, No.1)
[08.1992 - 01.1995] HDJ80,HZJ80 L=460 |
23274-17020 |
— | ||
| replacement | |||||
|
77277A
|
77277A
95333-06060 Hose, Fuel[08.1992 - 01.1995] HDJ80,HZJ80 L=460 |
95333-06060 |
from US $17.08 |
||
|
77277A
|
77277A
23274-17021
Hose, Fuel, No.1(For Return Tube, No.1)
[01.1995 - 03.2001] HDJ80,HZJ80 L=460 |
23274-17021 |
— | ||
| replacement | |||||
|
77277A
|
77277A
95333-06060 Hose, Fuel[01.1995 - 03.2001] HDJ80,HZJ80 L=460 |
95333-06060 |
from US $17.08 |
||
|
77277A
|
77277A
95333-06030
Hose, Fuel
[01.1990 - 08.1992] HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
95333-06030 |
— | ||
| replacement | |||||
|
77277A
|
77277A
95338-06030 HOSE, FUEL[01.1990 - 08.1992] HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN *H,L=260,W(SUB TANK) |
95338-06030 |
from US $10.39 |
||
|
77277A
|
77277A
95333-06060 Hose, Fuel[01.1990 - 08.1992] HDJ80,HZJ80 *H,L=460 |
95333-06060 |
from US $17.08 |
||
|
77277B
|
77277B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[01.1990 - 08.1992] HDJ80,HZJ80 *H,L=130; FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130 |
95333-06020 |
— | ||
| replacement | |||||
|
77277B
|
77277B
95337-06020 Hose, Differential Pressure Control[01.1990 - 08.1992] HDJ80,HZJ80 *H,L=130; FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD *H,L=130 |
95337-06020 |
from US $10.21 |
||
|
77278A
|
77278A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[01.1990 - 08.1992] HDJ80,HZJ80 *H,L=190 |
95333-06020 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95337-06020 Hose, Differential Pressure Control[01.1990 - 08.1992] HDJ80,HZJ80 *H,L=190 |
95337-06020 |
from US $10.21 |
||
|
77278B
|
77278B
95333-06030
Hose, Fuel
[01.1990 - 08.1992] FJ80..CBR *H,L=240; HDJ80,HZJ80 *H,L=240 |
95333-06030 |
— | ||
| replacement | |||||
|
77278B
|
77278B
95338-06030 HOSE, FUEL[01.1990 - 08.1992] FJ80..CBR *H,L=240; HDJ80,HZJ80 *H,L=240 |
95338-06030 |
from US $10.39 |
||
|
77281
|
77281
77281-60020
Bracket, Fuel Main Tube, No.1
[01.1990 - 08.1992] HDJ80,HZJ80 |
77281-60020 |
— | ||
|
77296
|
77296
77296-60091
Plate, Fuel Tube Grommet Support
[01.1990 - 08.1992] FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
77296-60091 |
— | ||
| replacement | |||||
|
77296
|
77296
77296-60110
Plate, Fuel Tube Grommet Support
[01.1990 - 08.1992] FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
77296-60110 |
— | ||
|
77296
|
77296
77296-60092
Plate, Fuel Tube Grommet Support
[08.1992 - 11.1998] HDJ80;HZJ80..5F;FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI; FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR W(SUB TANK),NO.1 |
77296-60092 |
— | ||
|
77296A
|
77296A
77297-60010
Plate, Fuel Tube Support, No.2
[01.1990 - 08.1992] FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
77297-60010 |
— | ||
|
77433
|
77433
77433-60020 Hose, Fuel Main, No.1FUEL MAIN, NO.1 [01.1990 - 08.1992] HZJ80 |
77433-60020 |
US $9.90 |
||
|
77434
|
77434
77434-60010 Hose, Fuel Main, No.2FUEL MAIN, NO.2 [01.1990 - 08.1992] HZJ80 |
77434-60010 |
US $30.14 |
||
|
77439
|
77439
77439-60020
Hose, Fuel Return
[01.1990 - 08.1992] HDJ80,HZJ80 |
77439-60020 |
— | ||
|
77701T
|
77701T
90917-10069
Valve, Check (For Main Fuel Tank)
[01.1990 - 08.1992] HDJ80,HZJ80;FJ80,FZJ80..GEN |
90917-10069 |
— | ||
| replacement | |||||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[01.1990 - 08.1992] HDJ80,HZJ80;FJ80,FZJ80..GEN |
90917-10082 |
from US $17.31 |
||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[08.1992 - 11.1998] HDJ80,HZJ80;FZJ80..GEN..CBR;FZJ80..4FC..GEN |
90917-10082 |
from US $17.31 |
||
|
77710B
|
77710B
77710-60030 Valve Assy, Fuel Tank Solenoid MainFUEL TANK SOLENOID MAIN [01.1990 - 08.1992] HDJ80,HZJ80 |
77710-60030 |
US $154.43 |
||
|
77717
|
77717
77717-60010
Bracket, Fuel Solenoid Valve Return
[01.1990 - 08.1992] FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
77717-60010 |
— | ||
|
77720E
|
77720E
77720-60020 Valve Assy, Fuel Tank Solenoid ReturnFUEL TANK SOLENOID RETURN [01.1990 - 08.1992] FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
77720-60020 |
from US $133.70 |
||
|
8271110380
|
8271110380
82711-10380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10380 |
US $1.79 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $1.08 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9040610015
|
9040610015
90406-10015 New Genuine Part |
90406-10015 |
US $4.66 |
||
|
9040610017
|
9040610017
90406-10017 New Genuine Part |
90406-10017 |
US $2.33 |
||
|
9046112894
|
9046112894
90461-12894 New Genuine Part |
90461-12894 |
US $12.52 |
||
|
9046718002
|
9046718002
90467-18002
Clip(For Ventilation Hose)
|
90467-18002 |
— | ||
| replacement | |||||
|
9046718002
|
9046718002
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.08 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.08 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
