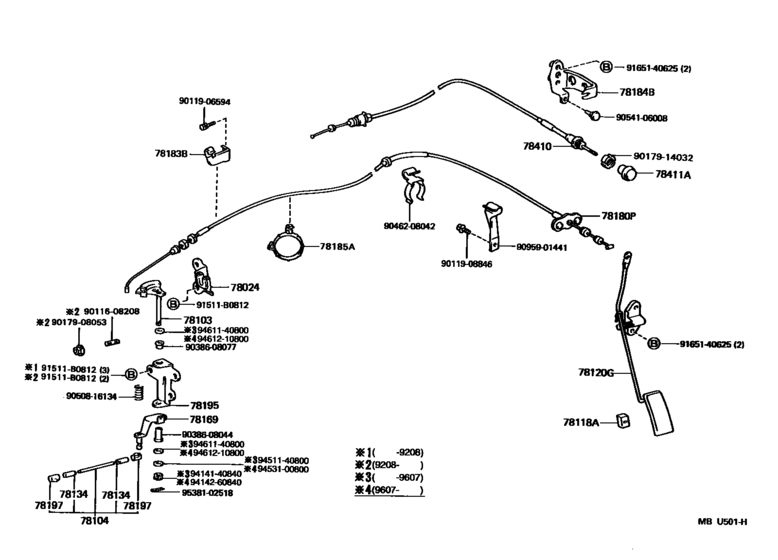

Accelerator Link ([01.1990 - ] (9001- )HZJ80..RHD) Diagram Toyota LAND CRUISER
- Year
- 1990 - 2001
- Sales region
- General
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-60010 Bracket Sub-Assy, Accelerator Control Cable[01.1990 - 08.1992] HDJ80,HZJ80 |
78024-60010 |
US $20.61 |
||
|
78103
|
78103
78103-60020
Rod Sub-Assy, Accelerator Connecting, No.1
[01.1990 - 08.1992] HDJ80,HZJ80 |
78103-60020 |
— | ||
| replacements | |||||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1990 - 08.1992] HDJ80,HZJ80 |
78103-60022 |
from US $7.57 |
||
|
78103
|
78103
94142-60840 NUTSOLOTTED[01.1990 - 08.1992] HDJ80,HZJ80 |
94142-60840 |
US $0.96 |
||
|
78103
|
78103
94531-00800 Washer (For Transfer Shift Outer Lever)[01.1990 - 08.1992] HDJ80,HZJ80 |
94531-00800 |
from US $0.84 |
||
|
78103
|
78103
78103-60021
Rod Sub-Assy, Accelerator Connecting, No.1
[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
78103-60021 |
— | ||
| replacements | |||||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
78103-60022 |
from US $7.57 |
||
|
78103
|
78103
94142-60840 NUTSOLOTTED[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
94142-60840 |
US $0.96 |
||
|
78103
|
78103
94531-00800 Washer (For Transfer Shift Outer Lever)[01.1993 - 07.1996] HDJ80,HZJ80..DSL,TD2 |
94531-00800 |
from US $0.84 |
||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[07.1996 - 03.2001] HDJ80,HZJ80..DSL,TD2 |
78103-60022 |
from US $7.57 |
||
|
78104
|
78104
78104-60010 Rod Sub-Assy, Accelerator Connecting, No.2[01.1990 - 08.1992] HDJ80,HZJ80 |
78104-60010 |
from US $6.33 |
||
|
78118A
|
78118A
78118-60010 Stopper, Accelerator Pedal[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80..RHD |
78118-60010 |
US $4.80 |
||
|
78120G
|
78120G
78120-60030 Rod Assy, Accelerator Pedal[01.1990 - 06.1990] FJ80,HDJ80,HZJ80..RHD |
78120-60030 |
US $49.50 |
||
|
78134
|
78134
78134-10010 End, Accelerator Connecting Rod[01.1990 - 08.1992] HDJ80,HZJ80 |
78134-10010 |
US $2.27 |
||
|
78169
|
78169
78169-60010 Hanger, Accelerator Spring[01.1990 - 08.1992] HDJ80,HZJ80 |
78169-60010 |
US $4.12 |
||
|
78180P
|
78180P
78180-60210
Cable Assy, Accelerator Control
[01.1990 - 06.1992] HDJ80,HZJ80..RHD..MTM |
78180-60210 |
— | ||
| replacement | |||||
|
78180P
|
78180P
78180-60310
Cable Assy, Accelerator Control
[01.1990 - 06.1992] HDJ80,HZJ80..RHD..MTM |
78180-60310 |
— | ||
|
78180P
|
78180P
78180-60310
Cable Assy, Accelerator Control
[06.1992 - 08.1992] HZJ80..RHD |
78180-60310 |
— | ||
|
78180P
|
78180P
78180-60311
Cable Assy, Accelerator Control
[02.1993 - 03.2001] HZJ80..RHD..5F |
78180-60311 |
— | ||
|
78184B
|
78184B
78184-60040
Bracket, Accelerator Control Cable
[01.1990 - 08.1992] HDJ80,HZJ80 |
78184-60040 |
— | ||
|
78185A
|
78185A
78183-60080 Clamp, Accelerator Control Cable[02.1993 - 03.2001] HZJ80..RHD |
78183-60080 |
US $8.91 |
||
|
78195
|
78195
78195-60010
Bracket, Accelerator Link
[01.1990 - 08.1992] HDJ80,HZJ80 |
78195-60010 |
— | ||
| replacement | |||||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[01.1990 - 08.1992] HDJ80,HZJ80 |
78195-60011 |
US $5.42 |
||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[08.1992 - 03.2001] HDJ80,HZJ80..DSL,TD2 |
78195-60011 |
US $5.42 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[01.1990 - 08.1992] HDJ80,HZJ80 |
78197-10010 |
from US $1.22 |
||
|
78410
|
78410
78410-60100 Cable Assy, Throttle Control[01.1990 - 08.1992] HDJ80,HZJ80..RHD |
78410-60100 |
from US $37.46 |
||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80 |
78402-60030 |
from US $8.85 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9011608208
|
9011608208
90116-08208 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
90116-08208 |
US $1.61 |
||
|
9011906594
|
9011906594
90119-06594
BOLT WWASHER
|
90119-06594 |
— | ||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.41 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
US $2.15 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
from US $1.97 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.56 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9050816134
|
9050816134
90508-16134 Spring, Clamp, No.4 |
90508-16134 |
US $1.24 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.50 |
||
|
9095901441
|
9095901441
90959-01441
New Genuine Part
|
90959-01441 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9414140840
|
9414140840
94141-40840 New Genuine Part |
94141-40840 |
US $1.79 |
||
|
9414260840
|
9414260840
94142-60840 NUTSOLOTTED |
94142-60840 |
US $0.96 |
||
|
9451140800
|
9451140800
94511-40800
New Genuine Part
|
94511-40800 |
— | ||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461140800
|
9461140800
94611-40800 New Genuine Part |
94611-40800 |
US $1.79 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
