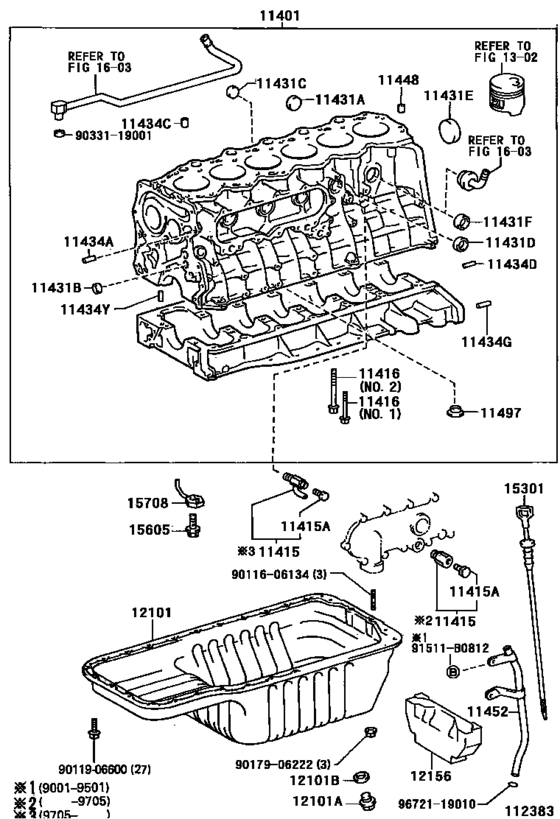

Cylinder Block ([01.1990 - ] (9001- )1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 2001
- Sales region
- General
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19605 Block Sub-Assy, CylinderCYLINDER [01.1990 - 08.1992] 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN |
11401-19605 |
US $4,673.76 |
||
| replacements | |||||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[01.1990 - 08.1992] 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN |
11401-80040 |
US $4,717.44 |
||
|
11401
|
11401
91622-G1014 BOLT WWASHER[01.1990 - 08.1992] 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN |
91622-G1014 |
US $1.05 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1990 - 08.1992] 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-19606 Block Sub-Assy, CylinderCYLINDER [01.1993 - 11.1994] 1HZ..HZJ80..(GX,STD)..GEN |
11401-19606 |
US $4,673.76 |
||
| replacements | |||||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[01.1993 - 11.1994] 1HZ..HZJ80..(GX,STD)..GEN |
11401-80040 |
US $4,717.44 |
||
|
11401
|
11401
91622-G1014 BOLT WWASHER[01.1993 - 11.1994] 1HZ..HZJ80..(GX,STD)..GEN |
91622-G1014 |
US $1.05 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1993 - 11.1994] 1HZ..HZJ80..(GX,STD)..GEN |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-19607 Block Sub-Assy, CylinderCYLINDER [11.1994 - 05.1997] 1HZ..HZJ80..5F..(GX,STD)..GEN |
11401-19607 |
US $4,688.32 |
||
| replacements | |||||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[11.1994 - 05.1997] 1HZ..HZJ80..5F..(GX,STD)..GEN |
11401-80040 |
US $4,717.44 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.1994 - 05.1997] 1HZ..HZJ80..5F..(GX,STD)..GEN |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-19608 Block Sub-Assy, CylinderCYLINDER [05.1997 - 01.1998] 1HZ..HZJ80..5F..(GX,STD)..GEN |
11401-19608 |
US $4,688.32 |
||
| replacement | |||||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[05.1997 - 01.1998] 1HZ..HZJ80..5F..(GX,STD)..GEN |
11401-80040 |
US $4,717.44 |
||
|
11401
|
11401
11401-19609 Block Sub-Assy, CylinderCYLINDER [01.1998 - 07.1999] 1HZ..HZJ80..5F |
11401-19609 |
US $4,717.44 |
||
| replacement | |||||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[01.1998 - 07.1999] 1HZ..HZJ80..5F |
11401-80040 |
US $4,717.44 |
||
|
11401
|
11401
11401-19635 Block Sub-Assy, Cylinder[01.1990 - 08.1992] 1HZ..HZJ80..VX..GEN;1HZ..HZJ80..(GX,STD)..(ARL,GCC); 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-19635 |
US $4,673.76 |
||
| replacements | |||||
|
11401
|
11401
11401-80043 Block Sub-Assy, Cylinder[01.1990 - 08.1992] 1HZ..HZJ80..VX..GEN;1HZ..HZJ80..(GX,STD)..(ARL,GCC); 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-80043 |
US $4,717.44 |
||
|
11401
|
11401
91622-G1014 BOLT WWASHER[01.1990 - 08.1992] 1HZ..HZJ80..VX..GEN;1HZ..HZJ80..(GX,STD)..(ARL,GCC); 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
91622-G1014 |
US $1.05 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1990 - 08.1992] 1HZ..HZJ80..VX..GEN;1HZ..HZJ80..(GX,STD)..(ARL,GCC); 1HZ..HZJ80..VX..GCC;1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-19636 Block Sub-Assy, Cylinder[01.1993 - 11.1994] 1HZ..HZJ80..ARL,GCC;1HZ..HZJ80..VX..GEN; 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-19636 |
US $4,673.76 |
||
| replacements | |||||
|
11401
|
11401
11401-80043 Block Sub-Assy, Cylinder[01.1993 - 11.1994] 1HZ..HZJ80..ARL,GCC;1HZ..HZJ80..VX..GEN; 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-80043 |
US $4,717.44 |
||
|
11401
|
11401
91622-G1014 BOLT WWASHER[01.1993 - 11.1994] 1HZ..HZJ80..ARL,GCC;1HZ..HZJ80..VX..GEN; 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
91622-G1014 |
US $1.05 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1993 - 11.1994] 1HZ..HZJ80..ARL,GCC;1HZ..HZJ80..VX..GEN; 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-19637 Block Sub-Assy, Cylinder[11.1994 - 01.1995] 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-19637 |
US $4,688.32 |
||
| replacements | |||||
|
11401
|
11401
11401-80043 Block Sub-Assy, Cylinder[11.1994 - 01.1995] 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
11401-80043 |
US $4,717.44 |
||
|
11401
|
11401
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.1994 - 01.1995] 1HZ..HZJ80..(GX,STD)..GEN W(HEATER) |
90345-52003 |
US $4.12 |
||
|
11401
|
11401
11401-80040 Block Sub-Assy, Cylinder[07.1999 - 03.2001] 1HZ..HZJ80 |
11401-80040 |
US $4,717.44 |
||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1992 - 05.1997] 1HD#,1HZ..HDJ80,HZJ80 |
90345-52003 |
US $4.12 |
||
|
11415
|
11415
90910-09075
Cock Sub-Assy, Water Drain(For Cylinder Block)
[05.1997 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
90910-09075 |
— | ||
| replacement | |||||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1997 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
90910-09129 |
from US $6.63 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90345-52003 |
US $4.12 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90910-09087 |
from US $2.95 |
||
|
11416
|
11416
90119-08182 Bolt(For Crankshaft Bearing Cap Set)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.1 |
90119-08182 |
from US $1.37 |
||
|
11416
|
11416
90910-02098 Bolt(For Crankshaft Bearing Cap Set)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.2 |
90910-02098 |
from US $4.30 |
||
|
11431A
|
11431A
90331-35002 Plug, Tight, No.1(For Cylinder Block)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90331-35002 |
from US $2.62 |
||
|
11431B
|
11431B
96411-41800 Plug, Tight, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
96411-41800 |
from US $1.62 |
||
|
11431C
|
11431C
96411-42500 Plug, Tight, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
96411-42500 |
from US $2.95 |
||
|
11431D
|
11431D
96411-43500 Plug, Tight, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
96411-43500 |
from US $3.48 |
||
|
11431E
|
11431E
96411-45000 Plug, Tight, No.1(For Cam Housing)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
96411-45000 |
from US $4.22 |
||
|
11431F
|
11431F
96411-43500 Plug, Tight, No.1[01.1990 - 08.1992] 1HZ..HZJ80..(GX,STD)..GEN |
96411-43500 |
from US $3.48 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434C
|
11434C
90250-08074 Pin, Straight(For Timing Gear Case)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 L=15,OD=8 |
90250-08074 |
US $1.79 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 L=11,OD=6 |
90250-06068 |
from US $0.97 |
||
|
11434G
|
11434G
90250-08054 Pin, Straight[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90250-08054 |
from US $0.95 |
||
|
11434Y
|
11434Y
90250-12006 Pin, Straight(For Oil Pan)[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
90250-12006 |
US $1.22 |
||
|
11448
|
11448
11448-17010 Orifice, Cylinder Block Oil[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
11448-17010 |
from US $1.69 |
||
|
11452
|
11452
11452-17010
Guide, Oil Level Gage
[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
11452-17010 |
— | ||
|
11452
|
11452
11452-17011
Guide, Oil Level Gage
[01.1995 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
11452-17011 |
— | ||
|
11497
|
11497
11497-17010 Gasket, Cylinder Block Oil Hole[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
11497-17010 |
from US $2.01 |
||
|
12101
|
12101
12101-17020
Pan Sub-Assy, Oil
[01.1990 - 08.1991] 1H#..HDJ80,HZJ80 |
12101-17020 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.1990 - 04.1992] 1H#..HDJ80,HZJ80 |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[04.1992 - 08.1992] 1H#..HDJ80,HZJ80 |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[04.1992 - 08.1992] 1H#..HDJ80,HZJ80 |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[01.1990 - 08.1992] 1FZF,3F#..FJ80,FZJ80; 1H#..HDJ80,HZJ80 |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.1990 - 08.1992] 1FZF,3F#..FJ80,FZJ80; 1H#..HDJ80,HZJ80 |
90430-12031 |
from US $0.82 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.1994 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
90430-12031 |
from US $0.82 |
||
|
15301
|
15301
15301-17010 Gage Sub-Assy, Oil Level[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
15301-17010 |
from US $12.56 |
||
|
15301
|
15301
15301-17030 Gage Sub-Assy, Oil Level[01.1995 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
15301-17030 |
from US $14.46 |
||
|
15605
|
15605
15605-17030 Valve Sub-Assy, Oil Check[01.1995 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
15605-17030 |
from US $6.04 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
15605-54010 |
from US $9.12 |
||
|
15708
|
15708
15708-17010 Nozzle Sub-Assy, Oil, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
15708-17010 |
from US $10.28 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9011606134
|
9011606134
90116-06134 Bolt, Stud(For Timing Gear Cover) |
90116-06134 |
US $2.33 |
||
|
9017906222
|
9017906222
90179-06222 NUT |
90179-06222 |
from US $1.05 |
||
|
9033119001
|
9033119001
90331-19001
PLUG TIGHT
|
90331-19001 |
— | ||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.56 |
||
