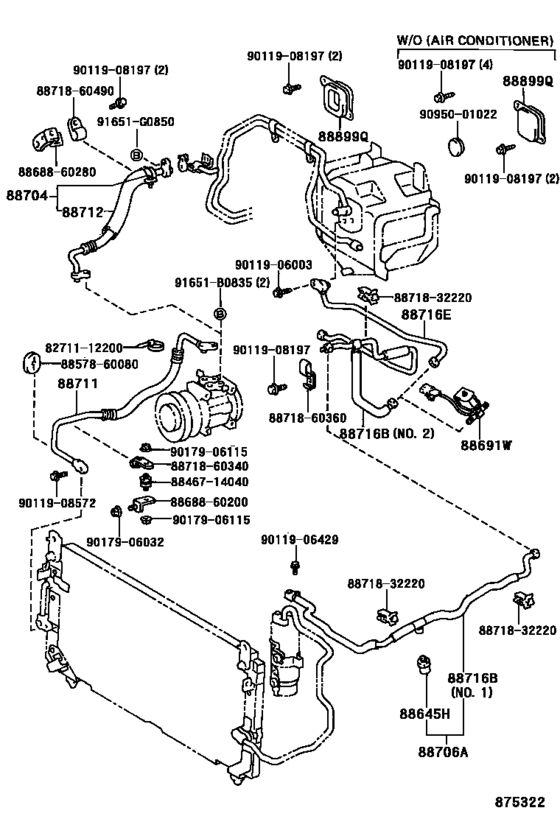

Heating & Air Conditioning - Cooler Piping ([01.1990 - ] FRONT PIPING---DUAL (9001- )HDJ80,HZJ80..RHD) Diagram Toyota LAND CRUISER
- Year
- 1990 - 2001
- Sales region
- General
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88645H
|
88645H
88645-60020
Switch, Pressure No.1
[01.1990 - 01.1992] FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN) |
88645-60020 |
— | ||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[05.1993 -] FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
88645-60030 |
from US $85.26 |
||
|
88704
|
88704
88704-60010
Hose Sub-Assy, Suction
[08.1992 - 12.1992] HDJ80,HZJ80 |
88704-60010 |
— | ||
|
88704
|
88704
88704-60040
Hose Sub-Assy, Suction
[05.1993 - 01.1995] HDJ80,HZJ80 |
88704-60040 |
— | ||
|
88706A
|
88706A
88706-60010
Tube Sub-Assy, Liquid, A
[08.1992 - 12.1992] HDJ80,HZJ80 |
88706-60010 |
— | ||
|
88711
|
88711
88711-60100
Hose, Cooler Refrigerant Discharge, No.1
[01.1990 - 08.1992] HDJ80,HZJ80..ARL,GEN |
88711-60100 |
— | ||
| replacement | |||||
|
88711
|
88711
88711-60110
Hose, Cooler Refrigerant Discharge, No.1
[01.1990 - 08.1992] HDJ80,HZJ80..ARL,GEN |
88711-60110 |
— | ||
|
88711
|
88711
88711-60110
Hose, Cooler Refrigerant Discharge, No.1
[12.1992 - 05.1993] HZJ80;HDJ80..RHD;HDJ80..LHD..5F |
88711-60110 |
— | ||
|
88711
|
88711
88711-60350
Hose, Cooler Refrigerant Discharge, No.1
[05.1993 - 01.1995] HDJ80,HZJ80 |
88711-60350 |
— | ||
|
88711
|
88711
88711-60400 Hose, Cooler Refrigerant Discharge, No.1[01.1995 - 03.2001] HDJ80,HZJ80 |
88711-60400 |
from US $193.94 |
||
|
88712
|
88712
88712-60130
Hose, Cooler Refrigerant Suction, No.1
[01.1990 - 08.1992] HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
88712-60130 |
— | ||
| replacement | |||||
|
88712
|
88712
88704-60010
Hose Sub-Assy, Suction
[01.1990 - 08.1992] HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
88704-60010 |
— | ||
|
88712
|
88712
88712-60580
Hose, Cooler Refrigerant Suction, No.1
[05.1993 - 01.1995] HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
88712-60580 |
— | ||
| replacement | |||||
|
88712
|
88712
88704-60040
Hose Sub-Assy, Suction
[05.1993 - 01.1995] HDJ80;HZJ80..GCC,GEN;HZJ80..GX..ARL |
88704-60040 |
— | ||
|
88716B
|
88716B
88716-60300
Pipe, Cooler Refrigerant Liquid, B
[01.1990 - 08.1992] HZJ80..SOB..(STD,VX)..(GCC,GEN); HDJ80,HZJ80..LUB..VX;HZJ80..GX..(GCC,GEN) SINGLE AIR CONDITIONER |
88716-60300 |
— | ||
|
88716B
|
88716B
88716-6A380
Pipe, Cooler Refrigerant Liquid, B
[05.1993 - 01.1995] HDJ80,HZJ80; HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1; HZJ80..VX..GCC DUAL AIR CONDITIONER,NO.1 |
88716-6A380 |
— | ||
| replacement | |||||
|
88716B
|
88716B
88716-6A410
Pipe, Cooler Refrigerant Liquid, B
[05.1993 - 01.1995] HDJ80,HZJ80; HDJ80;HZJ80..GX;HZJ80..VX..GEN NO.1; HZJ80..VX..GCC DUAL AIR CONDITIONER,NO.1 |
88716-6A410 |
— | ||
|
88716B
|
88716B
88716-6A410
Pipe, Cooler Refrigerant Liquid, B
[01.1995 - 11.1997] HDJ80..LHD;FZJ80..GX,STD;FZJ80..VX..GCC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;HZJ80. .5F..(GCC,GEN); FZJ80..VX..GEN;HDJ80,HZJ80..GX..ARL SINGLE AIR CONDITIONER |
88716-6A410 |
— | ||
|
88716E
|
88716E
88726-60010
Pipe, Cooler Refrigerant Liquid, E
[01.1990 - 08.1992] FJ80,FZJ80,HZJ80..RHD..STD..GEN; FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
88726-60010 |
— | ||
|
88716E
|
88716E
88726-60220
Pipe, Cooler Refrigerant Liquid, E
[05.1993 - 01.1995] FZJ80,HZJ80..RHD..STD..GEN; FZJ80,HZJ80..RHD..(GX,VX)..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) SINGLE AIR CONDITIONER |
88726-60220 |
— | ||
|
88716E
|
88716E
88726-60400
Pipe, Cooler Refrigerant Liquid, E
[01.1995 - 03.2001] FZJ80,HZJ80..RHD..STD..GEN |
88726-60400 |
— | ||
|
88899Q
|
88899Q
88899-60050 Plate, Cover[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
88899-60050 |
US $8.21 |
||
|
88899Q
|
88899Q
88899-60060
Plate, Cover
[05.1993 - 01.1995] HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
88899-60060 |
— | ||
|
91651B0835
|
91651B0835
91651-B0835 BOLT |
91651-B0835 |
US $1.79 |
||
|
91651G0850
|
91651G0850
91651-G0850
New Genuine Part
|
91651-G0850 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8857860080
|
8857860080
88578-60080 Paking, Cooler Air Duct |
88578-60080 |
US $6.99 |
||
|
8868860200
|
8868860200
88688-60200
Bracket, Cooler Diaphragm
|
88688-60200 |
— | ||
|
8868860280
|
8868860280
88688-60280
Bracket, Cooler Diaphragm
|
88688-60280 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
8871860340
|
8871860340
88718-60340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60340 |
— | ||
|
8871860360
|
8871860360
88718-60360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60360 |
— | ||
|
8871860490
|
8871860490
88718-60490
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60490 |
— | ||
| replacement | |||||
|
8871860490
|
8871860490
88718-60760
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60760 |
— | ||
|
9011906003
|
9011906003
90119-06003 New Genuine Part |
90119-06003 |
US $1.97 |
||
|
9011906429
|
9011906429
90119-06429
New Genuine Part
|
90119-06429 |
— | ||
| replacements | |||||
|
9011906429
|
9011906429
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
|
9011906429
|
9011906429
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $3.05 |
||
|
9011908572
|
9011908572
90119-08572 New Genuine Part |
90119-08572 |
US $2.62 |
||
| replacement | |||||
|
9011908572
|
9011908572
91651-G0845 New Genuine Part |
91651-G0845 |
US $2.62 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
