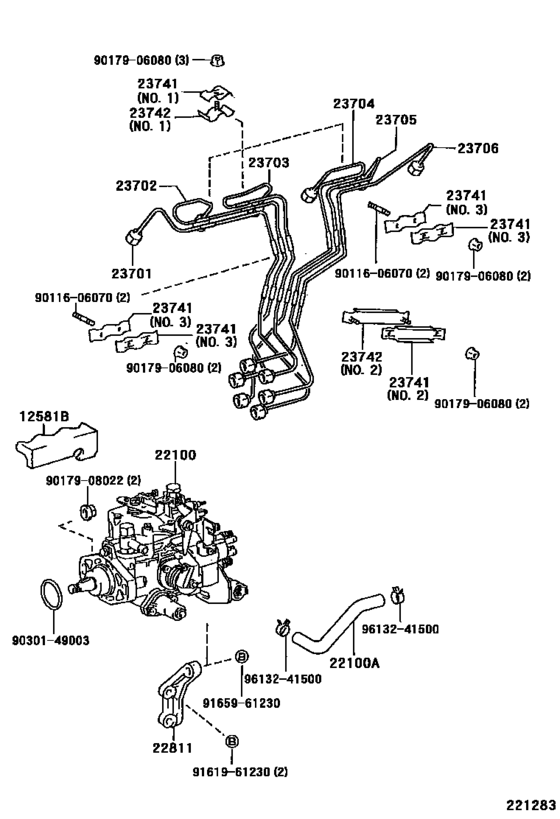

Injection Pump Assembly ([01.1990 - 08.1992] (9001-9208)1HZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 2001
- Sales region
- General
- Frame
- HZJ80
- grade
- STD
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 03.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-17050
Pump Assy, Injection Or Supply
[01.1990 - 08.1992] 1HZ..HZJ80..STD..GEN W(HIGH ALTITUDE COMPENSATOR) |
22100-17050 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-17060 Pump Assy, Injection Or Supply[01.1990 - 08.1992] 1HZ..HZJ80..STD..GEN W(HIGH ALTITUDE COMPENSATOR) |
22100-17060 |
US $4,819.36 |
||
|
22100
|
22100
22100-17060 Pump Assy, Injection Or Supply[08.1991 - 08.1992] 1HZ..HZJ80..RHD..5F..STD..GEN W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICKUP) |
22100-17060 |
US $4,819.36 |
||
|
22100
|
22100
22100-17310
Pump Assy, Injection Or Supply
[01.1990 - 08.1992] 1HZ..HZJ80..STD;1HZ..HZJ80..GX..GCC |
22100-17310 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-17320
Pump Assy, Injection Or Supply
[01.1990 - 08.1992] 1HZ..HZJ80..STD;1HZ..HZJ80..GX..GCC |
22100-17320 |
— | ||
|
22100
|
22100
22100-17320
Pump Assy, Injection Or Supply
[08.1991 - 08.1992] 1HZ..HZJ80..GX..GCC;1HZ..HZJ80..RHD..5F..STD..GEN W(TACHOMETER PICK UP) |
22100-17320 |
— | ||
|
22100
|
22100
22100-17491
Pump Assy, Injection Or Supply
[08.1992 - 01.1999] 1HZ..HZJ80..5F..(GX,VX)..GEN W(HIGH ALTITUDE COMPENSATOR); 1HZ..HZJ80..RHD..STD..GEN W(HIGH ALTITUDE COMPENSATOR & TACHOMETER PICKUP) |
22100-17491 |
— | ||
|
22100
|
22100
22100-17680
Pump Assy, Injection Or Supply
[08.1992 - 01.1999] 1HZ..HZJ80..STD..GEN W(HIGH ALTITUDE COMPENSATOR) |
22100-17680 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-17491
Pump Assy, Injection Or Supply
[08.1992 - 01.1999] 1HZ..HZJ80..STD..GEN W(HIGH ALTITUDE COMPENSATOR) |
22100-17491 |
— | ||
|
22100
|
22100
22100-17790
Pump Assy, Injection Or Supply
[08.1992 - 01.1999] 1HZ..HZJ80..STD..GEN |
22100-17790 |
— | ||
|
22100
|
22100
22100-17800
Pump Assy, Injection Or Supply
[08.1992 - 01.1999] 1HZ..HZJ80..5F..(GX,VX)..GEN; 1HZ..HZJ80..RHD..STD..GEN W(TACHOMETER PICK UP) |
22100-17800 |
— | ||
|
22100A
|
22100A
23271-17010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1990 - 08.1992] 1HZ..HZJ80 |
23271-17010 |
US $8.59 |
||
|
22100A
|
22100A
23271-17070
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1992 - 01.1995] 1HZ..HZJ80 |
23271-17070 |
— | ||
|
22100A
|
22100A
23271-17101 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[01.1995 - 01.1998] 1HD#,1HZ..HDJ80,HZJ80 |
23271-17101 |
US $29.90 |
||
|
22811
|
22811
22811-17010
Stay, Injection Pump, No.1
[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
22811-17010 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-17011 Stay, Injection Pump, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 |
22811-17011 |
from US $20.01 |
||
|
22811
|
22811
22811-17011 Stay, Injection Pump, No.1[05.1995 - 03.2001] 1HDT,1HZ..HDJ80,HZJ80 |
22811-17011 |
from US $20.01 |
||
|
23701
|
23701
23701-17010 Pipe Sub-Assy, Injection, No.1[01.1990 - 08.1992] 1HZ..HZJ80 |
23701-17010 |
from US $24.64 |
||
|
23702
|
23702
23702-17010 Pipe Sub-Assy, Injection, No.2[01.1990 - 08.1992] 1HZ..HZJ80 |
23702-17010 |
from US $24.64 |
||
|
23703
|
23703
23703-17010 Pipe Sub-Assy, Injection, No.3[01.1990 - 08.1992] 1HZ..HZJ80 |
23703-17010 |
from US $24.64 |
||
|
23704
|
23704
23704-17010 Pipe Sub-Assy, Injection, No.4[01.1990 - 08.1992] 1HZ..HZJ80 |
23704-17010 |
from US $29.43 |
||
|
23705
|
23705
23705-17010 Pipe Sub-Assy, Injection, No.5[01.1990 - 08.1992] 1HZ..HZJ80 |
23705-17010 |
from US $26.30 |
||
|
23706
|
23706
23706-17010 Pipe Sub-Assy, Injection, No.6[01.1990 - 08.1992] 1HZ..HZJ80 |
23706-17010 |
from US $29.43 |
||
|
23741
|
23741
23741-17010 Clamp, Injection Pipe, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.1 |
23741-17010 |
from US $1.54 |
||
|
23741
|
23741
23741-17020 Clamp, Injection Pipe, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.2 |
23741-17020 |
from US $3.34 |
||
|
23741
|
23741
23741-17030 Clamp, Injection Pipe, No.1[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.3 |
23741-17030 |
from US $2.11 |
||
|
23742
|
23742
23742-17010 Clamp, Injection Pipe, No.2[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.1 |
23742-17010 |
from US $2.03 |
||
|
23742
|
23742
23742-17020 Clamp, Injection Pipe, No.2[01.1990 - 08.1992] 1H#..HDJ80,HZJ80 NO.2 |
23742-17020 |
from US $3.88 |
||
|
9011606070
|
9011606070
90116-06070 BOLT |
90116-06070 |
US $2.33 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.48 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.15 |
||
|
9161961230
|
9161961230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9165961230
|
9165961230
91659-61230
New Genuine Part
|
91659-61230 |
— | ||
| replacement | |||||
|
9165961230
|
9165961230
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
