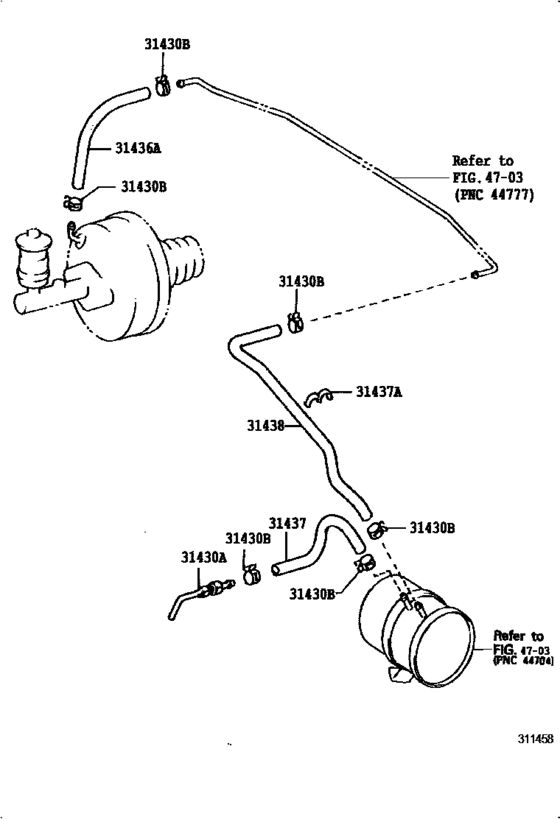

Clutch Booster ([01.1990 - 01.1995] (9001-9501)MTM) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31430A
|
31430A
44730-16010 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
44730-16010 |
US $29.27 |
||
|
31430B
|
31430B
90467-16020
Clip(For Ventilation Hose No.2)
[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
90467-16020 |
— | ||
| replacement | |||||
|
31430B
|
31430B
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
96133-41500 |
from US $2.26 |
||
|
31436A
|
31436A
31436-60060
Hose, No.1(For Clutch Booster Vacuum)
[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
31436-60060 |
— | ||
|
31437
|
31437
31437-60140 Hose, No.2(For Clutch Booster Vacuum)[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
31437-60140 |
US $21.84 |
||
|
31437
|
31437
31437-60190 Hose, No.2(For Clutch Booster Vacuum)[08.1992 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) ｱﾘ(*66) |
31437-60190 |
US $13.25 |
||
|
31437A
|
31437A
90464-00176 Clamp(For Clutch Booster Vacuum)[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
90464-00176 |
US $0.96 |
||
|
31438
|
31438
31437-60150 Hose, No.3(For Clutch Booster Vacuum)[08.1991 - 01.1995] HDJ81,HZJ81..MTM..(GX,VX) |
31437-60150 |
US $39.31 |
||
