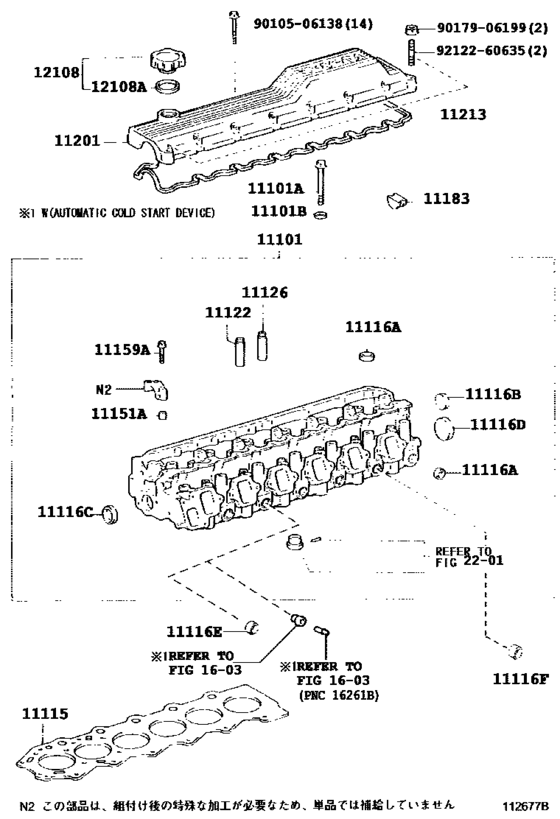

Cylinder Head ([01.1990 - ] (9001- )1HZ) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-17010
Head Sub-Assy, Cylinder
[01.1990 - 10.1993] 1HZ..HZJ81 |
11101-17010 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-17012 Head Sub-Assy, Cylinder[01.1990 - 10.1993] 1HZ..HZJ81 |
11101-17012 |
from US $2,668.56 |
||
|
11101
|
11101
11101-17011
Head Sub-Assy, Cylinder
[10.1993 - 12.1997] 1HZ..HZJ81 |
11101-17011 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-17012 Head Sub-Assy, Cylinder[10.1993 - 12.1997] 1HZ..HZJ81 |
11101-17012 |
from US $2,668.56 |
||
|
11101
|
11101
11101-17012 Head Sub-Assy, Cylinder[12.1997 - 01.1998] 1HZ..HZJ81 |
11101-17012 |
from US $2,668.56 |
||
|
11101A
|
11101A
90910-02096 Bolt(For Cylinder Head Set)[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
90910-02096 |
from US $4.30 |
||
|
11101B
|
11101B
90201-11027
Washer, Plate(For Cylinder Head Set)
[01.1990 - 01.1995] 1H#..HDJ81,HZJ81 |
90201-11027 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11032 Washer, Plate(For Cylinder Head Set)[01.1990 - 01.1995] 1H#..HDJ81,HZJ81 |
90201-11032 |
from US $1.05 |
||
|
11101B
|
11101B
90201-11032 Washer, Plate(For Cylinder Head Set)[01.1995 - 01.1998] 1H#..HDJ81,HZJ81 |
90201-11032 |
from US $1.05 |
||
|
11115
|
11115
11115-17010-01 Gasket, Cylinder Head[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 MARK 1,修理書参照 |
11115-17010-01 |
from US $106.32 |
||
|
11115
|
11115
11115-17010-03 Gasket, Cylinder Head[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 MARK 3,修理書参照 |
11115-17010-03 |
from US $108.21 |
||
|
11115
|
11115
11115-17010-05 Gasket, Cylinder Head[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 MARK 5,修理書参照 |
11115-17010-05 |
from US $109.21 |
||
|
11116A
|
11116A
96411-42500 Plug, Tight, No.1[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
96411-42500 |
from US $2.95 |
||
|
11116B
|
11116B
96411-43500 Plug, Tight, No.1[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
96411-43500 |
from US $3.48 |
||
|
11116C
|
11116C
96411-44000 Plug, Tight, No.1[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
96411-44000 |
from US $3.84 |
||
|
11116D
|
11116D
96411-44500 Plug, Tight, No.4[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
96411-44500 |
from US $3.30 |
||
|
11116E
|
11116E
96411-42500 Plug, Tight, No.1[01.1990 - 01.1995] 1HZ..HZJ81 |
96411-42500 |
from US $2.95 |
||
|
11116F
|
11116F
96411-42500 Plug, Tight, No.1[01.1990 - 01.1998] 1HZ..HZJ81 |
96411-42500 |
from US $2.95 |
||
|
11122
|
11122
11122-17020 Bush, Intake Valve Guide[05.1997 - 01.1998] 1HZ..HZJ81 ＳＴＤ |
11122-17020 |
from US $7.94 |
||
|
11122
|
11122
11122-54020
Bush, Intake Valve Guide
[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 ＳＴＤ |
11122-54020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-17020 Bush, Intake Valve Guide[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 ＳＴＤ |
11122-17020 |
from US $7.94 |
||
|
11122
|
11122
11123-17020 Bush, Intake Valve Guide[05.1997 - 01.1998] 1HZ..HZJ81 Ｏ／Ｓ ０．０５ |
11123-17020 |
from US $6.87 |
||
|
11122
|
11122
11123-54020 Bush, Intake Valve Guide[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 Ｏ／Ｓ ０．０５ |
11123-54020 |
US $6.33 |
||
|
11126
|
11126
11122-17020 Bush, Intake Valve Guide[05.1997 - 01.1998] 1HZ..HZJ81 ＳＴＤ |
11122-17020 |
from US $7.94 |
||
|
11126
|
11126
11122-54020
Bush, Intake Valve Guide
[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 ＳＴＤ |
11122-54020 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-17020 Bush, Intake Valve Guide[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 ＳＴＤ |
11122-17020 |
from US $7.94 |
||
|
11126
|
11126
11123-17020 Bush, Intake Valve Guide[05.1997 - 01.1998] 1HZ..HZJ81 Ｏ／Ｓ ０．０５ |
11123-17020 |
from US $6.87 |
||
|
11126
|
11126
11123-54020 Bush, Intake Valve Guide[01.1990 - 05.1997] 1HDT,1HZ..HDJ81,HZJ81 Ｏ／Ｓ ０．０５ |
11123-54020 |
US $6.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.41 |
||
|
11159A
|
11159A
90119-08789 Bolt(For Head To Camshaft Bearing Cap)[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
90119-08789 |
US $1.61 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
11183-54011 |
from US $6.02 |
||
|
11201
|
11201
11201-17010
Cover Sub-Assy, Cylinder Head
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
11201-17010 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-17020 Cover Sub-Assy, Cylinder Head[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
11201-17020 |
from US $93.01 |
||
|
11213
|
11213
11213-17010 Gasket, Cylinder Head Cover[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
11213-17010 |
from US $15.22 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1990 - 06.1993] 1H#..HDJ81,HZJ81 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[01.1990 - 06.1993] 1H#..HDJ81,HZJ81; 1FZFE..FZJ80..LUB |
90430-37004 |
from US $1.24 |
||
|
9010506138
|
9010506138
90105-06138 BOLT WASHER BASED |
90105-06138 |
from US $0.89 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.25 |
||
|
9212260635
|
9212260635
92122-60635 BOLT STUD |
92122-60635 |
US $1.43 |
||
