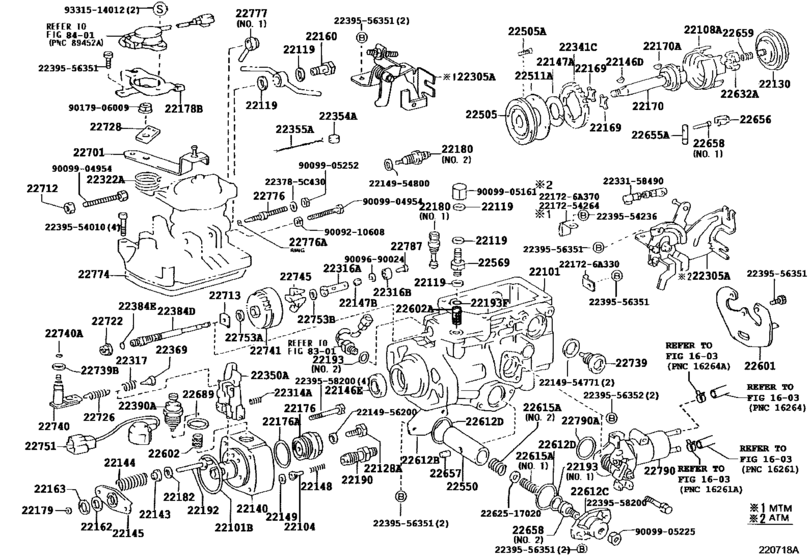

Injection Pump Body ([01.1995 - ] (9501- )1HZ) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54260
Housing Sub-Assy, Injection Pump
[01.1995 - 01.1998] 1HZ..HZJ81 |
22101-54260 |
— | ||
|
22101
|
22101
22101-64250 Housing Sub-Assy, Injection Pump[01.1990 - 01.1995] 1HZ..HZJ81..GX,VX,VXL |
22101-64250 |
from US $167.73 |
||
|
22101
|
22101
22101-64260
Housing Sub-Assy, Injection Pump
[01.1990 - 01.1995] 1HZ..HZJ81..GX,VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝｶﾝﾚｲﾁ ｼﾖｳ |
22101-64260 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-17010 Valve Sub-Assy, Injection Pump Delivery[02.1991 - 01.1995] 1HZ..HZJ81 |
22104-17010 |
from US $44.38 |
||
|
22104
|
22104
22104-6A640 Valve Sub-Assy, Injection Pump Delivery[01.1995 - 01.1998] 1HZ..HZJ81 |
22104-6A640 |
from US $15.20 |
||
|
22108A
|
22108A
22108-17010 Ring Sub-Assy, Roller[11.1990 - 01.1995] 1HZ..HZJ81 |
22108-17010 |
US $77.05 |
||
|
22108A
|
22108A
22108-17040
Ring Sub-Assy, Roller
[01.1990 - 01.1995] 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝｶﾝﾚｲﾁ ｼﾖｳ |
22108-17040 |
— | ||
| replacement | |||||
|
22108A
|
22108A
22108-1C180
Ring Sub-Assy, Roller
[01.1990 - 01.1995] 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝｶﾝﾚｲﾁ ｼﾖｳ |
22108-1C180 |
— | ||
|
22108A
|
22108A
22108-1C180
Ring Sub-Assy, Roller
[01.1995 - 01.1998] 1HZ..HZJ81 |
22108-1C180 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90201-12109 |
from US $1.25 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[01.1990 - 01.1998] 1HZ..HZJ81 |
22128-54010 |
— | ||
|
22130
|
22130
22130-17010
Camplate Sub-Assy, Face
[01.1990 - 01.1998] 1HZ..HZJ81 |
22130-17010 |
— | ||
|
22140
|
22140
22140-17010 Head Sub-Assy, Distributive Pump[01.1990 - 01.1995] 1HZ..HZJ81 |
22140-17010 |
US $357.81 |
||
|
22140
|
22140
22140-17810 Head Sub-Assy, Distributive Pump[01.1995 - 01.1998] 1HZ..HZJ81 |
22140-17810 |
from US $268.05 |
||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[01.1990 - 01.1998] 1HZ..HZJ81 |
22143-54010 |
— | ||
|
22144
|
22144
22144-54190 Spring, Pump Plunger[01.1990 - 01.1998] 1HZ..HZJ81 |
22144-54190 |
US $7.60 |
||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[01.1990 - 01.1998] 1HZ..HZJ81 |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22147-54290 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[01.1990 - 01.1998] 1HZ..HZJ81 |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[02.1991 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[01.1990 - 01.1998] 1HZ..HZJ81 |
22160-64010 |
US $25.90 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[01.1990 - 01.1995] 1HZ..HZJ81 |
22170-54180 |
US $47.17 |
||
|
22170
|
22170
22170-55130 Shaft Sub-Assy, Drive[01.1995 - 01.1998] 1HZ..HZJ81 |
22170-55130 |
US $44.44 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-13017 |
US $8.80 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1996 - 01.1998] 1H#..HDJ81,HZJ81 |
22193-54772 |
from US $2.62 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[01.1990 - 08.1996] 1HD#,1HZ..HDJ81,HZJ81 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[01.1990 - 08.1996] 1HD#,1HZ..HDJ81,HZJ81 |
22193-54772 |
from US $2.62 |
||
|
22179
|
22179
22179-17010
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９２ |
22179-17010 |
— | ||
|
22179
|
22179
22179-17011
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９４ |
22179-17011 |
— | ||
|
22179
|
22179
22179-17012
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９６ |
22179-17012 |
— | ||
|
22179
|
22179
22179-17013
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９８ |
22179-17013 |
— | ||
|
22179
|
22179
22179-17014
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０２ |
22179-17014 |
— | ||
|
22179
|
22179
22179-17015
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０４ |
22179-17015 |
— | ||
|
22179
|
22179
22179-17016
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０６ |
22179-17016 |
— | ||
|
22179
|
22179
22179-17017
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０８ |
22179-17017 |
— | ||
|
22179
|
22179
22179-17018
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１２ |
22179-17018 |
— | ||
|
22179
|
22179
22179-17019
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１４ |
22179-17019 |
— | ||
|
22179
|
22179
22179-17020
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１６ |
22179-17020 |
— | ||
|
22179
|
22179
22179-17021
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１８ |
22179-17021 |
— | ||
|
22179
|
22179
22179-17022
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２２ |
22179-17022 |
— | ||
|
22179
|
22179
22179-17023
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２４ |
22179-17023 |
— | ||
|
22179
|
22179
22179-17024
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２６ |
22179-17024 |
— | ||
|
22179
|
22179
22179-17025
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２８ |
22179-17025 |
— | ||
|
22179
|
22179
22179-17026
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３２ |
22179-17026 |
— | ||
|
22179
|
22179
22179-17027
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３４ |
22179-17027 |
— | ||
|
22179
|
22179
22179-17028 Shim, Plunger Adjusting[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３６ |
22179-17028 |
US $1.94 |
||
|
22179
|
22179
22179-17029
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３８ |
22179-17029 |
— | ||
|
22179
|
22179
22179-17030
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４２ |
22179-17030 |
— | ||
|
22179
|
22179
22179-17031
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４４ |
22179-17031 |
— | ||
|
22179
|
22179
22179-17032
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 厚さ＝２．４６ |
22179-17032 |
— | ||
|
22179
|
22179
22179-17033
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４８ |
22179-17033 |
— | ||
|
22179
|
22179
22179-17034
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５２ |
22179-17034 |
— | ||
|
22179
|
22179
22179-17035
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５４ |
22179-17035 |
— | ||
|
22179
|
22179
22179-17036
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５６ |
22179-17036 |
— | ||
|
22179
|
22179
22179-17037
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５８ |
22179-17037 |
— | ||
|
22179
|
22179
22179-17038
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６２ |
22179-17038 |
— | ||
|
22179
|
22179
22179-17039
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６４ |
22179-17039 |
— | ||
|
22179
|
22179
22179-17040
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６６ |
22179-17040 |
— | ||
|
22179
|
22179
22179-17041 Shim, Plunger Adjusting[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６８ |
22179-17041 |
US $1.94 |
||
|
22179
|
22179
22179-17042
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７２ |
22179-17042 |
— | ||
|
22179
|
22179
22179-17043
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７４ |
22179-17043 |
— | ||
|
22179
|
22179
22179-17044
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７６ |
22179-17044 |
— | ||
|
22179
|
22179
22179-17045
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７８ |
22179-17045 |
— | ||
|
22179
|
22179
22179-17046
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８２ |
22179-17046 |
— | ||
|
22179
|
22179
22179-17047
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８４ |
22179-17047 |
— | ||
|
22179
|
22179
22179-17048
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８６ |
22179-17048 |
— | ||
|
22179
|
22179
22179-17049
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８８ |
22179-17049 |
— | ||
|
22179
|
22179
22179-17050
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９５ |
22179-17050 |
— | ||
|
22179
|
22179
22179-17051
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．００ |
22179-17051 |
— | ||
|
22179
|
22179
22179-17052
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０５ |
22179-17052 |
— | ||
|
22179
|
22179
22179-17053
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１０ |
22179-17053 |
— | ||
|
22179
|
22179
22179-17054
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１５ |
22179-17054 |
— | ||
|
22179
|
22179
22179-17055
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．２０ |
22179-17055 |
— | ||
|
22179
|
22179
22179-17056
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９１ |
22179-17056 |
— | ||
|
22179
|
22179
22179-17057
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９３ |
22179-17057 |
— | ||
|
22179
|
22179
22179-17058
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９７ |
22179-17058 |
— | ||
|
22179
|
22179
22179-17059
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９９ |
22179-17059 |
— | ||
|
22179
|
22179
22179-17060
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０１ |
22179-17060 |
— | ||
|
22179
|
22179
22179-17061
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０３ |
22179-17061 |
— | ||
|
22179
|
22179
22179-17062
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０７ |
22179-17062 |
— | ||
|
22179
|
22179
22179-17063
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０９ |
22179-17063 |
— | ||
|
22179
|
22179
22179-17064
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１１ |
22179-17064 |
— | ||
|
22179
|
22179
22179-17065
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１３ |
22179-17065 |
— | ||
|
22179
|
22179
22179-17066
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１７ |
22179-17066 |
— | ||
|
22179
|
22179
22179-17067
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１９ |
22179-17067 |
— | ||
|
22179
|
22179
22179-17068
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２１ |
22179-17068 |
— | ||
|
22179
|
22179
22179-17069
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２３ |
22179-17069 |
— | ||
|
22179
|
22179
22179-17070
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２７ |
22179-17070 |
— | ||
|
22179
|
22179
22179-17071
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２９ |
22179-17071 |
— | ||
|
22179
|
22179
22179-17072
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３１ |
22179-17072 |
— | ||
|
22179
|
22179
22179-17073
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３３ |
22179-17073 |
— | ||
|
22179
|
22179
22179-17074
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３７ |
22179-17074 |
— | ||
|
22179
|
22179
22179-17075
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３９ |
22179-17075 |
— | ||
|
22179
|
22179
22179-17076
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４１ |
22179-17076 |
— | ||
|
22179
|
22179
22179-17077
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４３ |
22179-17077 |
— | ||
|
22179
|
22179
22179-17078
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４７ |
22179-17078 |
— | ||
|
22179
|
22179
22179-17079
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４９ |
22179-17079 |
— | ||
|
22179
|
22179
22179-17080
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５１ |
22179-17080 |
— | ||
|
22179
|
22179
22179-17081
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５３ |
22179-17081 |
— | ||
|
22179
|
22179
22179-17082
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５７ |
22179-17082 |
— | ||
|
22179
|
22179
22179-17083
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５９ |
22179-17083 |
— | ||
|
22179
|
22179
22179-17084
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６１ |
22179-17084 |
— | ||
|
22179
|
22179
22179-17085
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６３ |
22179-17085 |
— | ||
|
22179
|
22179
22179-17086
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６７ |
22179-17086 |
— | ||
|
22179
|
22179
22179-17087
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６９ |
22179-17087 |
— | ||
|
22179
|
22179
22179-17088
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７１ |
22179-17088 |
— | ||
|
22179
|
22179
22179-17089
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７３ |
22179-17089 |
— | ||
|
22179
|
22179
22179-17090
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７７ |
22179-17090 |
— | ||
|
22179
|
22179
22179-17091
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７９ |
22179-17091 |
— | ||
|
22179
|
22179
22179-17092
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８１ |
22179-17092 |
— | ||
|
22179
|
22179
22179-17093
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８３ |
22179-17093 |
— | ||
|
22179
|
22179
22179-17094
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８７ |
22179-17094 |
— | ||
|
22179
|
22179
22179-17095
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８９ |
22179-17095 |
— | ||
|
22179
|
22179
22179-17096
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９１ |
22179-17096 |
— | ||
|
22179
|
22179
22179-17097
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９２ |
22179-17097 |
— | ||
|
22179
|
22179
22179-17098
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９３ |
22179-17098 |
— | ||
|
22179
|
22179
22179-17099
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９６ |
22179-17099 |
— | ||
|
22179
|
22179
22179-17100
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９７ |
22179-17100 |
— | ||
|
22179
|
22179
22179-17101
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９８ |
22179-17101 |
— | ||
|
22179
|
22179
22179-17102
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０１ |
22179-17102 |
— | ||
|
22179
|
22179
22179-17103
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０２ |
22179-17103 |
— | ||
|
22179
|
22179
22179-17104
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０３ |
22179-17104 |
— | ||
|
22179
|
22179
22179-17105
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０６ |
22179-17105 |
— | ||
|
22179
|
22179
22179-17106
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０７ |
22179-17106 |
— | ||
|
22179
|
22179
22179-17107
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０８ |
22179-17107 |
— | ||
|
22179
|
22179
22179-17108
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１１ |
22179-17108 |
— | ||
|
22179
|
22179
22179-17109
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１２ |
22179-17109 |
— | ||
|
22179
|
22179
22179-17110
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１３ |
22179-17110 |
— | ||
|
22179
|
22179
22179-17111
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１６ |
22179-17111 |
— | ||
|
22179
|
22179
22179-17112
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１７ |
22179-17112 |
— | ||
|
22179
|
22179
22179-17113
Shim, Plunger Adjusting
[12.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１８ |
22179-17113 |
— | ||
|
22179
|
22179
22179-17140
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９５ |
22179-17140 |
— | ||
|
22179
|
22179
22179-17141
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０５ |
22179-17141 |
— | ||
|
22179
|
22179
22179-17142
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１５ |
22179-17142 |
— | ||
|
22179
|
22179
22179-17143
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２５ |
22179-17143 |
— | ||
|
22179
|
22179
22179-17144
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３５ |
22179-17144 |
— | ||
|
22179
|
22179
22179-17145
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４５ |
22179-17145 |
— | ||
|
22179
|
22179
22179-17146
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５５ |
22179-17146 |
— | ||
|
22179
|
22179
22179-17147
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６５ |
22179-17147 |
— | ||
|
22179
|
22179
22179-17148
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７５ |
22179-17148 |
— | ||
|
22179
|
22179
22179-17149
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８５ |
22179-17149 |
— | ||
|
22179
|
22179
22179-17150
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９４ |
22179-17150 |
— | ||
|
22179
|
22179
22179-17151
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９９ |
22179-17151 |
— | ||
|
22179
|
22179
22179-17152
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０４ |
22179-17152 |
— | ||
|
22179
|
22179
22179-17153
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．０９ |
22179-17153 |
— | ||
|
22179
|
22179
22179-17154
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１４ |
22179-17154 |
— | ||
|
22179
|
22179
22179-17155
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝３．１９ |
22179-17155 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．９ |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０ |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．１ |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．２ |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．３ |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．４ |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．５ |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．６ |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．７ |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．８ |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．９ |
22179-54020 |
— | ||
|
22180
|
22180
22180-58200 Valve Sub-Assy, Regulator[01.1990 - 08.1992] 1HZ..HZJ81..MTM ＮＯ．１; 1HZ..HZJ81..ATM |
22180-58200 |
US $90.90 |
||
|
22180
|
22180
22180-64851 Valve Sub-Assy, Regulator[01.1990 - 08.1992] 1HZ..HZJ81..MTM ＮＯ．２ |
22180-64851 |
US $42.98 |
||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝０．５ |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝０．８ |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．０ |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．２ |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．５ |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．８ |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝２．０ |
22188-54010 |
US $4.14 |
||
|
22190
|
22190
22190-6A290 Holder, Delivery Valve[02.1991 - 01.1995] 1HZ..HZJ81 |
22190-6A290 |
US $27.37 |
||
|
22190
|
22190
22190-6A680 Holder, Delivery Valve[01.1995 - 01.1998] 1HZ..HZJ81 |
22190-6A680 |
US $16.85 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[01.1990 - 01.1998] 1HZ..HZJ81 |
22192-54010 |
US $11.97 |
||
|
22193
|
22193
22193-17020 Ring, O(For Lever Connecting Pin)[08.1992 - 01.1998] 1HDT..HDJ81 ＮＯ．３; 1HZ..HZJ81..STD; 1HDFT,1HZ..HDJ81,HZJ81..GX,VX,VXL ＮＯ．１ |
22193-17020 |
from US $1.41 |
||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[01.1995 - 01.1998] 1H#..HDJ81,HZJ81 ＮＯ．３ |
22193-55031 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[08.1992 - 01.1998] 1HDT..HDJ81 ＮＯ．１; 1HDFT,1HZ..HDJ81,HZJ81..GX,VX,VXL ＮＯ．２ |
22193-64750 |
from US $0.84 |
||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[02.1997 - 01.1998] 1HZ..HZJ81 |
22193-5B320 |
from US $1.41 |
||
|
22305A
|
22305A
22305-17140
Idle-Up Sub-Assy
[01.1990 - 01.1995] 1HDT..HDJ81..MTM; 1HZ..HZJ81..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
22305-17140 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-17440
Sleeve, Governor
[08.1992 - 01.1995] 1HZ..HZJ81 内径＝０．８５ |
22316-17440 |
— | ||
|
22316A
|
22316A
22316-17810
Sleeve, Governor
[01.1995 - 01.1998] 1HZ..HZJ81 内径＝１．０５ |
22316-17810 |
— | ||
|
22316A
|
22316A
22316-18010
Sleeve, Governor
[01.1995 - 01.1998] 1HZ..HZJ81 内径＝１．１０ |
22316-18010 |
— | ||
|
22316A
|
22316A
22316-54310
Sleeve, Governor
[08.1992 - 01.1995] 1HZ..HZJ81 マーク ２６ |
22316-54310 |
— | ||
|
22316A
|
22316A
22316-54360
Sleeve, Governor
[08.1992 - 01.1995] 1HZ..HZJ81 内径＝０．７５ |
22316-54360 |
— | ||
| replacement | |||||
|
22316A
|
22316A
22316-6D050
Sleeve, Governor
[08.1992 - 01.1995] 1HZ..HZJ81 内径＝０．７５ |
22316-6D050 |
— | ||
|
22316A
|
22316A
22316-5B321
Sleeve, Governor
[01.1995 - 01.1998] 1HZ..HZJ81 内径＝１．１５ |
22316-5B321 |
— | ||
|
22316A
|
22316A
22316-6A041
Sleeve, Governor
[08.1992 - 01.1995] 1HZ..HZJ81 内径＝０．８ |
22316-6A041 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-10148 |
— | ||
|
22317
|
22317
22317-17040
Spring, Governor Domper
[01.1990 - 01.1998] 1HZ..HZJ81 |
22317-17040 |
— | ||
|
22322A
|
22322A
22322-54020
Spring, Return
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81..MTM |
22322-54020 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-17010
Governor Assy, Torque Control
[01.1990 - 01.1998] 1HZ..HZJ81..MTM |
22350-17010 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[08.1992 - 01.1995] 1HZ..HZJ81 |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[08.1992 - 01.1995] 1HZ..HZJ81 |
22355-78030 |
from US $1.20 |
||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22369-54010 |
— | ||
|
22384D
|
22384D
22380-54020 Shaft, Governor[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22380-54020 |
US $29.35 |
||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-14049 |
US $2.15 |
||
|
22390A
|
22390A
22390-6A510
Solenoid Assy, Fuel Cut
[01.1990 - 03.1997] 1HDT,1HZ..HDJ81,HZJ81 |
22390-6A510 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[01.1990 - 03.1997] 1HDT,1HZ..HDJ81,HZJ81 |
22390-6A511 |
from US $108.33 |
||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[03.1997 - 01.1998] 1HDFT..HDJ81; 1HZ..HZJ81 |
22390-6A511 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22511-58650 |
US $14.42 |
||
|
22550
|
22550
22550-17020
Piston Assy, Timer
[09.1991 - 01.1995] 1HZ..HZJ81 |
22550-17020 |
— | ||
| replacement | |||||
|
22550
|
22550
22582-5C400 Piston Assy, Timer[09.1991 - 01.1995] 1HZ..HZJ81 |
22582-5C400 |
US $52.44 |
||
|
22550
|
22550
22550-17810
Piston Assy, Timer
[01.1995 - 01.1998] 1HZ..HZJ81 |
22550-17810 |
— | ||
|
22569
|
22569
22569-17140 Screw, Overflow[08.1992 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
22569-17140 |
from US $9.50 |
||
|
22601
|
22601
22601-17140
Bracket Sub-Assy, Idle Up
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
22601-17140 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22602-56350 |
from US $10.31 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[02.1997 - 01.1998] 1HZ..HZJ81 |
22602-5B320 |
from US $13.93 |
||
|
22612B
|
22612B
22612-56350
Cover, Timer
[02.1991 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17020
Cover, Timer
[08.1992 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22612-17020 |
— | ||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[03.1995 - 01.1998] 1HZ..HZJ81 |
22193-17840 |
from US $2.62 |
||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[01.1990 - 11.1993] 1HZ..HZJ81 |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1990 - 11.1993] 1HZ..HZJ81 |
22193-17840 |
from US $2.62 |
||
|
22612D
|
22612D
90099-14105
Ring, O(For Timer Cover)
[11.1993 - 03.1995] 1HDT,1HZ..HDJ81,HZJ81 |
90099-14105 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[11.1993 - 03.1995] 1HDT,1HZ..HDJ81,HZJ81 |
22193-17840 |
from US $2.62 |
||
|
22615A
|
22615A
22615-17020
Spring, Timer Outer
[09.1991 - 01.1998] 1HZ..HZJ81 バネ定数＝０．１６，長さ＝３２．３,ＮＯ．１ |
22615-17020 |
— | ||
|
22615A
|
22615A
22615-17021
Spring, Timer Outer
[09.1991 - 01.1998] 1HZ..HZJ81 バネ定数＝０．１８，長さ＝３２．０,ＮＯ．１ |
22615-17021 |
— | ||
|
22615A
|
22615A
22615-17022
Spring, Timer Outer
[09.1991 - 01.1998] 1HZ..HZJ81 バネ定数＝０．２０，長さ＝３１．８,ＮＯ．１ |
22615-17022 |
— | ||
|
22615A
|
22615A
22615-17030
Spring, Timer Outer
[08.1992 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 バネ定数＝１．７０，長さ＝２７．９,ＮＯ．２ |
22615-17030 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[01.1990 - 01.1998] 1HZ..HZJ81 |
22632-54010 |
from US $49.10 |
||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 |
22655-54010 |
— | ||
|
22656
|
22656
22656-17840
Clip, Timer
[03.1995 - 01.1998] 1HZ..HZJ81 |
22656-17840 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[01.1990 - 03.1995] 1HZ..HZJ81 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[01.1990 - 03.1995] 1HZ..HZJ81 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22657-54010 |
— | ||
|
22658
|
22658
22658-17020
Stopper, Timer
[08.1992 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 ＮＯ．２ |
22658-17020 |
— | ||
|
22658
|
22658
22658-17840
Stopper, Timer
[03.1995 - 01.1998] 1HZ..HZJ81 NO.1 |
22658-17840 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[01.1990 - 03.1995] 1HDT,1HZ..HDJ81,HZJ81 ＮＯ．１ |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[01.1990 - 03.1995] 1HDT,1HZ..HDJ81,HZJ81 ＮＯ．１ |
22658-17840 |
— | ||
|
22659
|
22659
22659-64150
Spring, Coupling
[01.1990 - 01.1998] 1HZ..HZJ81 |
22659-64150 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-17010 Lever Sub-Assy, Adjusting[01.1990 - 08.1992] 1H#..HDJ81,HZJ81..MTM マーク ３８３ |
22701-17010 |
US $9.78 |
||
|
22701
|
22701
22701-17011
Lever Sub-Assy, Adjusting
[08.1992 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81..MTM マーク ３８４ |
22701-17011 |
— | ||
|
22701
|
22701
22701-56350 Lever Sub-Assy, Adjusting[01.1990 - 08.1992] 1H#..HDJ81,HZJ81..MTM マーク ２４７ |
22701-56350 |
US $8.74 |
||
|
22712
|
22712
22775-77121
Nut, Rock
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22775-77121 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．０５ |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．２５ |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．４５ |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．６５ |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 厚さ＝１．８５ |
22717-54010 |
US $6.86 |
||
|
22722
|
22722
22722-54470
Nut, Governor Shaft Rock
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22722-54470 |
— | ||
|
22726
|
22726
22726-17010
Spring, Speed Control
[01.1990 - 01.1998] 1HZ..HZJ81 |
22726-17010 |
— | ||
|
22728
|
22728
22728-54010
Guide, Return Spring
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81..MTM |
22728-54010 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22739-54020 |
— | ||
|
22739B
|
22739B
22378-64010 Washer, Governor Thrust[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22378-64010 |
from US $0.42 |
||
|
22740
|
22740
22740-54010
Shaft Sub-Assy, Governor Adjusting
[08.1992 - 01.1998] 1HZ..HZJ81 R=15.5 |
22740-54010 |
— | ||
|
22740
|
22740
22740-54310
Shaft Sub-Assy, Governor Adjusting
[01.1990 - 01.1998] 1HDFT..HDJ81 半径＝１３．３; 1HZ..HZJ81 R=13.3 |
22740-54310 |
— | ||
|
22740
|
22740
22740-58480
Shaft Sub-Assy, Governor Adjusting
[01.1990 - 01.1998] 1HDFT..HDJ81 半径＝１７．５; 1HZ..HZJ81 R=17.5 |
22740-58480 |
— | ||
|
22740
|
22740
22740-6A630
Shaft Sub-Assy, Governor Adjusting
[08.1992 - 01.1998] 1HZ..HZJ81 R=14.5 |
22740-6A630 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[11.1991 - 01.1998] 1HDFT,1HZ..HDJ81,HZJ81 |
22193-54770 |
from US $1.98 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[01.1990 - 01.1998] 1HZ..HZJ81 |
22745-54010 |
US $36.33 |
||
|
22751
|
22751
22751-17470 Wire Sub-Assy, Fuel Cut Solenoid[08.1992 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81..GX,VX,VXL |
22751-17470 |
from US $5.99 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1990 - 01.1998] 1HD#,1HZ..HDJ81,HZJ81 |
22753-54020 |
US $1.54 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[11.1991 - 01.1998] 1HDFT,1HZ..HDJ81,HZJ81 |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[01.1990 - 01.1998] 1HZ..HZJ81 |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1996 - 01.1998] 1H#..HDJ81,HZJ81 |
22193-54771 |
US $1.27 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[01.1990 - 08.1996] 1HD#,1HZ..HDJ81,HZJ81 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[01.1990 - 08.1996] 1HD#,1HZ..HDJ81,HZJ81 |
22193-54771 |
US $1.27 |
||
|
22777
|
22777
22777-54120
Cap, Rubber(For Bellows)
[01.1995 - 01.1998] 1HZ..HZJ81 ＮＯ．２ |
22777-54120 |
— | ||
|
22777
|
22777
22777-54351
Cap, Rubber(For Bellows)
[01.1995 - 01.1998] 1HZ..HZJ81 ＮＯ．１ |
22777-54351 |
— | ||
|
22777
|
22777
22777-64410
Cap, Rubber(For Bellows)
[01.1995 - 01.1998] 1HZ..HZJ81 ＮＯ．３ |
22777-64410 |
— | ||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．３ |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．４ |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．５ |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．６ |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．７ |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．８ |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．９ |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝４．０ |
22787-54033 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝４．１ |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．０ |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[12.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．１ |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝３．２ |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[01.1990 - 01.1998] 1HDT,1HZ..HDJ81,HZJ81 長さ＝４．２ |
22787-64680 |
— | ||
|
22790
|
22790
22790-17040
Cover Sub-Assy, Timer
[01.1990 - 01.1995] 1HZ..HZJ81..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
22790-17040 |
— | ||
|
22790
|
22790
22790-17810
Cover Sub-Assy, Timer
[01.1995 - 01.1998] 1HZ..HZJ81..MTM |
22790-17810 |
— | ||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[01.1995 - 01.1998] 1HDFT..HDJ81; 1HZ..HZJ81 |
22193-17840 |
from US $2.62 |
||
|
22790A
|
22790A
90099-14051
Ring, O, Distributor Housing
[01.1990 - 11.1993] 1HDT..HDJ81; 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-14051 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[01.1990 - 11.1993] 1HDT..HDJ81; 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ |
22193-17840 |
from US $2.62 |
||
|
22790A
|
22790A
90099-14105
Ring, O(For Timer Cover)
[11.1993 - 01.1995] 1HDT..HDJ81; 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-14105 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[11.1993 - 01.1995] 1HDT..HDJ81; 1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ |
22193-17840 |
from US $2.62 |
||
|
221726A330
|
221726A330
22172-6A330
Clip, Connector Support, Solenoid
|
22172-6A330 |
— | ||
|
221726A370
|
221726A370
22172-6A370
Clip, Connector Support, Solenoid
|
22172-6A370 |
— | ||
|
223785C430
|
223785C430
22378-5C430
Washer, Governor Thrust
|
22378-5C430 |
— | ||
|
2214954771
|
2214954771
22149-54771
Gasket, Delivery Valve
|
22149-54771 |
— | ||
|
2214954800
|
2214954800
22149-54800 Washer, Air Bleeder Nipple |
22149-54800 |
US $0.95 |
||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2217254264
|
2217254264
22172-54264
Clip, Connector Support, Solenoid
|
22172-54264 |
— | ||
|
2233158490
|
2233158490
22331-58490 Rod Sub-Assy |
22331-58490 |
from US $17.44 |
||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554236
|
2239554236
22395-54236
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-54236 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2262517020
|
2262517020
22625-17020
Washer, Timer Adjusting
|
22625-17020 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009905252
|
9009905252
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
