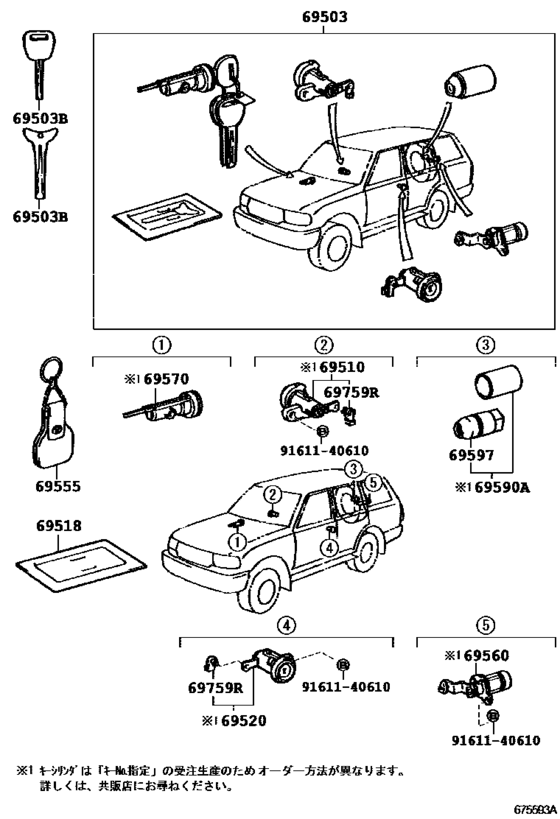

Lock Cylinder Set ([01.1990 - ] (9001- )SOB) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-60140
Cylinder Set, Lock
[01.1990 - 01.1998] FZJ80,HDJ81,HZJ81..SOB |
69005-60140 |
— | ||
|
69503B
|
69503B
69515-50080
Key, Cut
[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81 マスターキー，カード |
69515-50080 |
— | ||
|
69503B
|
69503B
69515-60020
Key, Cut
[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 マスターキー |
69515-60020 |
— | ||
| replacement | |||||
|
69503B
|
69503B
69515-30160 Key, Cut[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 マスターキー |
69515-30160 |
US $182.40 |
||
|
69510
|
69510
69510-60060 Cylinder Assy, Front Door Lock, Rh[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
69510-60060 |
US $243.20 |
||
|
69518
|
69518
69518-60010
Card, Spare Key
[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
69518-60010 |
— | ||
|
69520
|
69520
69520-60030
Cylinder Assy, Front Door Lock, Lh
[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
69520-60030 |
— | ||
|
69555
|
69555
69555-60010
Cover, Key
[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 |
69555-60010 |
— | ||
|
69555
|
69555
69555-60020
Cover, Key
[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81 |
69555-60020 |
— | ||
|
69560
|
69560
69560-60030 Cylinder Assy, Back Door Lock[01.1990 - 01.1998] FZJ80,HDJ81,HZJ81..SOB |
69560-60030 |
US $168.90 |
||
|
69570
|
69570
69570-60020
Cylinder Assy, Ignition Switch Lock
[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
69570-60020 |
— | ||
|
69759R
|
69759R
69759-24080 Snap, Front Door Lock Control Rod[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 左側 |
69759-24080 |
from US $2.24 |
||
|
69759R
|
69759R
69759-24090 Snap, Front Door Lock Control Rod[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81 右側 |
69759-24090 |
US $3.23 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
