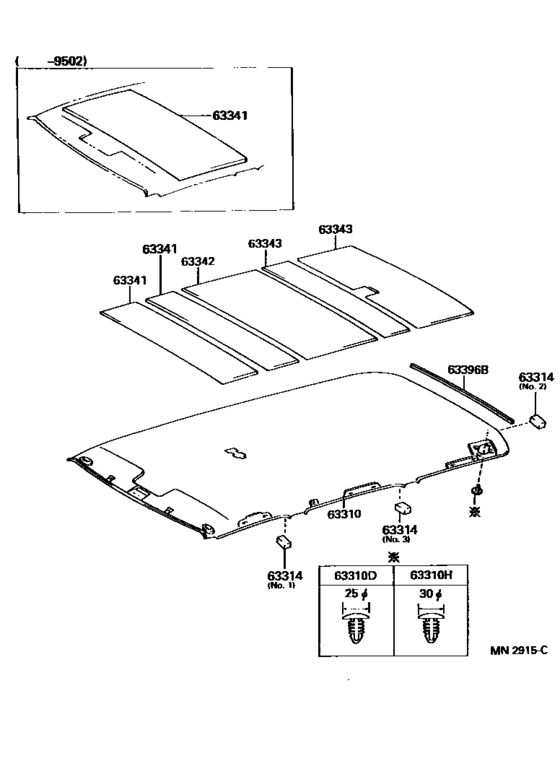

Roof Headlining & Silencer Pad ([01.1995 - ] (9501- )GX) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63310
|
63310
63310-60020-03
Headlining Assy, Roof
[01.1990 - 01.1995] FZJ80,HZJ81..SOB LIGHT GRAY,TRIM1# |
63310-60020-03 |
— | ||
|
63310
|
63310
63310-60020-06 Headlining Assy, Roof[05.1993 - 01.1995] FZJ80,HZJ81..GX LIGHT SABLE,TRIM4# |
63310-60020-06 |
US $621.71 |
||
|
63310
|
63310
63311-60200-B0
Headlining Assy, Roof
[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81..GX LIGHT GRAY,TRIM1#,4# |
63311-60200-B0 |
— | ||
|
63310
|
63310
63311-60270-B0 Headlining Assy, Roof[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81..GX ｱﾘ(ｱｸｾｻﾘ ﾒ-ﾀ),LIGHT GRAY,TRIM1#,4# |
63311-60270-B0 |
US $1,065.79 |
||
|
63310D
|
63310D
90467-06070-B2 Clip, Roof Headlining[01.1995 - 01.1998] HDJ81,HZJ81 LIGHT GRAY,TRIM1#,4# |
90467-06070-B2 |
from US $1.41 |
||
|
63310D
|
63310D
90467-06161-01 Clip, Rear Floor Mat Set[01.1990 - 01.1995] HZJ81..STD BLACK,TRIM1#; FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL BLACK,TRIM1#,4# |
90467-06161-01 |
US $2.62 |
||
|
63310H
|
63310H
90467-07104-B0 Clip(For Roof Headlining)[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 LIGHT GRAY,TRIM1#,4# |
90467-07104-B0 |
US $2.89 |
||
|
63314
|
63314
63314-60060
Welt, Roof Headlining
[08.1995 - 04.1997] FZJ80,HDJ81,HZJ81 ＮＯ．１ |
63314-60060 |
— | ||
|
63314
|
63314
63314-60070
Welt, Roof Headlining
[08.1995 - 04.1997] FZJ80,HDJ81,HZJ81 ＮＯ．２ |
63314-60070 |
— | ||
|
63314
|
63314
63314-60080
Welt, Roof Headlining
[04.1997 - 01.1998] FZJ80,HDJ81,HZJ81 ＮＯ．３ |
63314-60080 |
— | ||
|
63341
|
63341
63341-60051
Pad, Roof Silencer, No.1
[02.1995 - 01.1998] FZJ80,HDJ81,HZJ81..GX |
63341-60051 |
— | ||
|
63341
|
63341
63342-60010
Pad, Roof Silencer, No.1
[01.1990 - 02.1995] FZJ80,HZJ81..SOB |
63342-60010 |
— | ||
| replacement | |||||
|
63341
|
63341
63343-60010 Pad, Roof Silencer, No.3[01.1990 - 02.1995] FZJ80,HZJ81..SOB |
63343-60010 |
US $29.35 |
||
|
63342
|
63342
63342-60010
Pad, Roof Silencer, No.1
[01.1990 - 01.1998] FZJ80,HDJ81,HZJ81..SOB |
63342-60010 |
— | ||
| replacement | |||||
|
63342
|
63342
63343-60010 Pad, Roof Silencer, No.3[01.1990 - 01.1998] FZJ80,HDJ81,HZJ81..SOB |
63343-60010 |
US $29.35 |
||
|
63343
|
63343
63341-60051
Pad, Roof Silencer, No.1
[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 200X1100 |
63341-60051 |
— | ||
|
63343
|
63343
63343-60010 Pad, Roof Silencer, No.3[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81 |
63343-60010 |
US $29.35 |
||
|
63343
|
63343
63343-60032
Pad, Roof Silencer, No.3
[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 410X1100 |
63343-60032 |
— | ||
| replacement | |||||
|
63343
|
63343
63343-60010 Pad, Roof Silencer, No.3[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 410X1100 |
63343-60010 |
US $29.35 |
||
|
63396B
|
63396B
63396-60010-03
Trim, Roof Headlining, Rear Center
[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81 LIGHT GRAY,TRIM1# |
63396-60010-03 |
— | ||
|
63396B
|
63396B
63396-60010-06
Trim, Roof Headlining, Rear Center
[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL LIGHT SABLE,TRIM4# |
63396-60010-06 |
— | ||
|
63396B
|
63396B
63396-60020-B0
Trim, Roof Headlining, Rear Center
[01.1995 - 01.1998] FZJ80,HDJ81,HZJ81 LIGHT GRAY,TRIM1#,4# |
63396-60020-B0 |
— | ||
