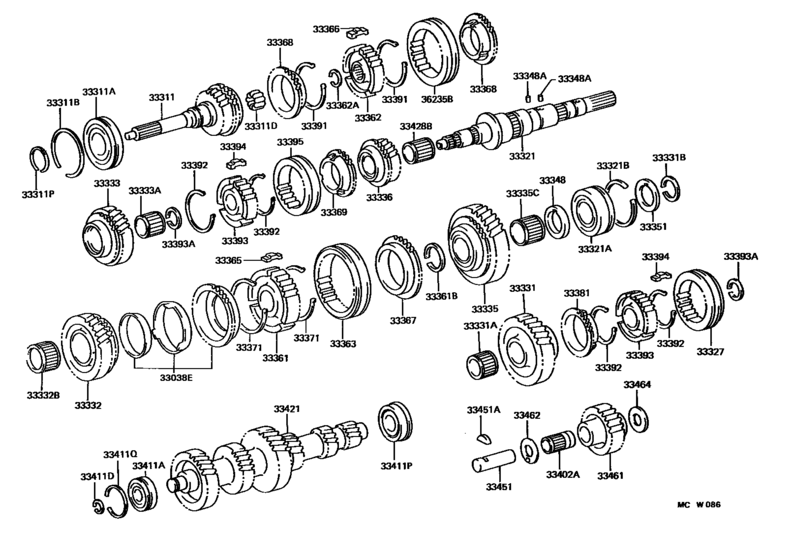

Transmission Gear (Mtm) ([08.1992 - ] (9208- )HZJ81..MTM) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33038E
|
33038E
33038-60011 Ring Set, Synchronizer, No.2[08.1992 - 08.1996] FZJ80,HDJ81,HZJ81..MTM |
33038-60011 |
from US $149.60 |
||
|
33038E
|
33038E
33038-60020 Ring Set, Synchronizer, No.2[08.1996 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33038-60020 |
from US $164.24 |
||
|
33311
|
33311
33301-60021
Shaft, Input
[01.1992 - 01.1998] HZJ81..MTM |
33301-60021 |
— | ||
| replacement | |||||
|
33311
|
33311
33301-60022 Shaft, Input[01.1992 - 01.1998] HZJ81..MTM |
33301-60022 |
from US $230.20 |
||
|
33311A
|
33311A
90363-50007
Bearing (For Input Shaft Front)
[01.1992 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90363-50007 |
— | ||
| replacement | |||||
|
33311A
|
33311A
90363-50012 BEARING RADIAL BALL[01.1992 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90363-50012 |
from US $76.78 |
||
|
33311B
|
33311B
90520-99010 Ring, Shaft Snap (For Front Bearing)[01.1992 - 01.1998] HDJ81..MTM 厚さ＝２．３６−２．４６; FZJ80,HZJ81..MTM 厚さ＝２．３６−２．４６ |
90520-99010 |
US $3.40 |
||
|
33311D
|
33311D
90361-08004 Bearing, Input Shaft[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90361-08004 |
from US $1.10 |
||
|
33311P
|
33311P
90520-45003 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５０−２．５５，マーク Ａ; FZJ80,HZJ81..MTM 厚さ＝２．５０−２．５５，マーク Ａ |
90520-45003 |
from US $2.11 |
||
|
33311P
|
33311P
90520-45004 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｂ; FZJ80,HZJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｂ |
90520-45004 |
US $2.33 |
||
|
33311P
|
33311P
90520-45005 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｃ; FZJ80,HZJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｃ |
90520-45005 |
US $1.14 |
||
|
33311P
|
33311P
90520-45006 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｄ; FZJ80,HZJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｄ |
90520-45006 |
US $2.33 |
||
|
33311P
|
33311P
90520-45007 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．７０−２．７５，マーク Ｅ; FZJ80,HZJ81..MTM 厚さ＝２．７０−２．７５，マーク Ｅ |
90520-45007 |
US $2.33 |
||
|
33311P
|
33311P
90520-45008 Ring, Shaft Snap (For Input Shaft Rear Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．７５−２．８０，マーク Ｆ; FZJ80,HZJ81..MTM 厚さ＝２．７５−２．８０，マーク Ｆ |
90520-45008 |
US $1.14 |
||
|
33321
|
33321
33321-60120 Shaft, Output[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33321-60120 |
US $422.82 |
||
|
33321A
|
33321A
90363-45016
Bearing (For Output Shaft Rear)
[01.1992 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90363-45016 |
— | ||
| replacement | |||||
|
33321A
|
33321A
90363-45019 Bearing (For Output Shaft Rear)[01.1992 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90363-45019 |
from US $72.07 |
||
|
33321B
|
33321B
90520-99009 Ring, Shaft Snap (For Front Bearing)[01.1992 - 01.1998] HDJ81..MTM 内径＝１０６．１，外径＝１１５．６４; FZJ80,HZJ81..MTM 内径＝１０６．１，外径＝１１５．６４ |
90520-99009 |
from US $3.12 |
||
|
33327
|
33327
33327-60010 Sleeve, Transmission Hub, No.4[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33327-60010 |
from US $55.44 |
||
|
33331
|
33331
33031-60010
Gear, Reverse
[01.1990 - 09.1996] HDJ81..MTM; FZJ80,HZJ81..MTM |
33031-60010 |
— | ||
| replacement | |||||
|
33331
|
33331
33331-60051 Gear, Reverse[01.1990 - 09.1996] HDJ81..MTM; FZJ80,HZJ81..MTM |
33331-60051 |
from US $249.85 |
||
|
33331
|
33331
33331-60050
Gear, Reverse
[09.1996 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33331-60050 |
— | ||
| replacement | |||||
|
33331
|
33331
33331-60051 Gear, Reverse[09.1996 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33331-60051 |
from US $249.85 |
||
|
33331A
|
33331A
90364-44003
Bearing (For Reverse Gear)
[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-44003 |
— | ||
|
33331B
|
33331B
90520-41006 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．４０−２．４５，マーク Ａ; FZJ80,HZJ81..MTM 厚さ＝２．４０−２．４５，マーク Ａ |
90520-41006 |
from US $1.14 |
||
|
33331B
|
33331B
90520-41007 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．４５−２．５０，マーク Ｂ; FZJ80,HZJ81..MTM 厚さ＝２．４５−２．５０，マーク Ｂ |
90520-41007 |
US $1.14 |
||
|
33331B
|
33331B
90520-41008 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｃ; FZJ80,HZJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｃ |
90520-41008 |
US $1.14 |
||
|
33331B
|
33331B
90520-41009 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｄ; FZJ80,HZJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｄ |
90520-41009 |
US $1.14 |
||
|
33331B
|
33331B
90520-41010 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６０，マーク Ｅ; FZJ80,HZJ81..MTM 厚さ＝２．６０，マーク Ｅ |
90520-41010 |
US $1.14 |
||
|
33331B
|
33331B
90520-41011 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６５，マーク Ｆ; FZJ80,HZJ81..MTM 厚さ＝２．６５，マーク Ｆ |
90520-41011 |
US $1.14 |
||
|
33331B
|
33331B
90520-41012 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．７０，マーク Ｇ; FZJ80,HZJ81..MTM 厚さ＝２．７０，マーク Ｇ |
90520-41012 |
US $1.14 |
||
|
33331B
|
33331B
90520-41013 Ring, Shaft Snap (For Output Shaft Center Bearing)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．７５，マーク Ｈ; FZJ80,HZJ81..MTM 厚さ＝２．７５，マーク Ｈ |
90520-41013 |
US $1.14 |
||
|
33332
|
33332
33033-60011
Gear, 2Nd
[08.1992 - 08.1996] HZJ81..MTM |
33033-60011 |
— | ||
|
33332
|
33332
33033-60060 Gear, 2Nd[08.1996 - 01.1998] HZJ81..MTM |
33033-60060 |
from US $120.56 |
||
|
33332B
|
33332B
90364-58003 Bearing, Needle Roller (For 2Nd Gear)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-58003 |
from US $23.52 |
||
|
33333
|
33333
33034-60011
Gear, 3Rd
[08.1992 - 01.1998] HZJ81..MTM |
33034-60011 |
— | ||
|
33333A
|
33333A
90364-38017 Bearing, Needle Roller (For 3Rd Gear)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-38017 |
from US $26.88 |
||
|
33335
|
33335
33032-60010
Gear, 1St
[01.1990 - 09.1996] HZJ81..MTM |
33032-60010 |
— | ||
| replacement | |||||
|
33335
|
33335
33335-60110 Gear, 1St[01.1990 - 09.1996] HZJ81..MTM |
33335-60110 |
US $260.62 |
||
|
33335
|
33335
33335-60110 Gear, 1St[09.1996 - 01.1998] HZJ81..MTM |
33335-60110 |
US $260.62 |
||
|
33335C
|
33335C
90364-50001
Bearing, Needle Roller(For 1St Gear)
[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-50001 |
— | ||
|
33336
|
33336
33036-60010 Gear, 5Th[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33036-60010 |
from US $138.03 |
||
|
33348
|
33348
33348-60020 Washer, 1St Gear Thrust[01.1992 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33348-60020 |
from US $17.82 |
||
|
33348A
|
33348A
90250-04056 Pin, Straight (For Gear Thrust Washer)[01.1990 - 01.1998] FZJ80,HDJ81,HZJ81..MTM |
90250-04056 |
from US $0.67 |
||
|
33351
|
33351
33351-60010 Washer, Reverse Gear Thrust[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33351-60010 |
from US $14.85 |
||
|
33361
|
33361
33361-60010 Hub, Transmission Clutch, No.1[01.1990 - 08.1996] FZJ80,HDJ81,HZJ81..MTM |
33361-60010 |
US $131.20 |
||
|
33361
|
33361
33361-60030
Hub, Transmission Clutch, No.1
[08.1996 - 01.1998] HZJ81..MTM |
33361-60030 |
— | ||
|
33361B
|
33361B
90520-46004 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．９０−２．９５，マーク Ａ; FZJ80,HZJ81..MTM 厚さ＝２．９０−２．９５，マーク Ａ |
90520-46004 |
from US $1.65 |
||
|
33361B
|
33361B
90520-46005 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．９５−３．００，マーク Ｂ; FZJ80,HZJ81..MTM 厚さ＝２．９５−３．００，マーク Ｂ |
90520-46005 |
US $1.14 |
||
|
33361B
|
33361B
90520-46006 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝３．００−３．０５，マーク Ｃ; FZJ80,HZJ81..MTM 厚さ＝３．００−３．０５，マーク Ｃ |
90520-46006 |
US $1.65 |
||
|
33361B
|
33361B
90520-46007 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝３．０５−３．１０，マーク Ｄ; FZJ80,HZJ81..MTM 厚さ＝３．０５−３．１０，マーク Ｄ |
90520-46007 |
US $1.14 |
||
|
33361B
|
33361B
90520-46008 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝３．１０−３．１５，マーク Ｅ; FZJ80,HZJ81..MTM 厚さ＝３．１０−３．１５，マーク Ｅ |
90520-46008 |
US $1.14 |
||
|
33361B
|
33361B
90520-46009 Ring, Shaft Snap (For Clutch Hub No.1)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝３．１５−３．２０，マーク Ｆ; FZJ80,HZJ81..MTM 厚さ＝３．１５−３．２０，マーク Ｆ |
90520-46009 |
US $1.14 |
||
|
33362
|
33362
33362-60010 Hub, Transmission Clutch, No.2[01.1990 - 08.1996] FZJ80,HDJ81,HZJ81..MTM |
33362-60010 |
from US $86.47 |
||
|
33362A
|
33362A
90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝１．９０−１．９５，マーク ４; FZJ80,HZJ81..MTM 厚さ＝１．９０−１．９５，マーク ４ |
90520-28054 |
from US $0.87 |
||
|
33362A
|
33362A
90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝１．９５−２．００，マーク ５; FZJ80,HZJ81..MTM 厚さ＝１．９５−２．００，マーク ５ |
90520-28055 |
from US $0.87 |
||
|
33362A
|
33362A
90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．００−２．０５，マーク ６; FZJ80,HZJ81..MTM 厚さ＝２．００−２．０５，マーク ６ |
90520-28056 |
US $0.87 |
||
|
33362A
|
33362A
90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．０５−２．１０，マーク ７; FZJ80,HZJ81..MTM 厚さ＝２．０５−２．１０，マーク ７ |
90520-28057 |
US $0.87 |
||
|
33362A
|
33362A
90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．１０−２．１５，マーク ８; FZJ80,HZJ81..MTM 厚さ＝２．１０−２．１５，マーク ８ |
90520-28058 |
US $0.87 |
||
|
33362A
|
33362A
90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．１５−２．２０，マーク ９; FZJ80,HZJ81..MTM 厚さ＝２．１５−２．２０，マーク ９ |
90520-28059 |
US $0.87 |
||
|
33363
|
33363
33363-60030
Sleeve, Transmission Hub, No.1
[08.1992 - 08.1996] FZJ80,HDJ81,HZJ81..MTM |
33363-60030 |
— | ||
|
33363
|
33363
33363-60040
Sleeve, Transmission Hub, No.1
[08.1996 - 01.1998] HZJ81..MTM |
33363-60040 |
— | ||
| replacement | |||||
|
33363
|
33363
33363-60041 Sleeve, Transmission Hub, No.1[08.1996 - 01.1998] HZJ81..MTM |
33363-60041 |
from US $92.15 |
||
|
33365
|
33365
33365-60010 Key, Synchromesh Shifting, No.1[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33365-60010 |
from US $1.96 |
||
|
33366
|
33366
33366-60010 Key, Synchromesh Shifting, No.2[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33366-60010 |
from US $2.19 |
||
|
33367
|
33367
33367-60020 Ring, Synchronizer, No.1[08.1992 - 01.1998] HZJ81..MTM |
33367-60020 |
from US $50.65 |
||
|
33368
|
33368
33368-60020 Ring, Synchronizer, No.2[01.1990 - 01.1998] HZJ81..MTM ４ＴＨギヤ側; FZJ80..MTM; HDJ81..MTM |
33368-60020 |
from US $36.14 |
||
|
33368
|
33368
33368-60041 Ring, Synchronizer, No.2[08.1992 - 01.1998] HZJ81..MTM ３ＲＤギヤ側 |
33368-60041 |
from US $40.91 |
||
|
33369
|
33369
33369-60010 Ring, Synchronizer, No.3[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33369-60010 |
from US $29.32 |
||
|
33371
|
33371
33371-60010 Spring, Synchromesh Shifting Key, No.1[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33371-60010 |
from US $2.76 |
||
|
33381
|
33381
33381-60010 Ring, 2Nd Synchronizer Outer[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33381-60010 |
from US $61.15 |
||
|
33391
|
33391
33391-60010 Spring, Synchromesh Shifting Key, No.2[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33391-60010 |
from US $2.66 |
||
|
33392
|
33392
33392-60010 Spring, Synchromesh Shifting Key, No.3[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33392-60010 |
from US $1.84 |
||
|
33393
|
33393
33393-37010 Hub, Transmission Clutch, No.3[06.1997 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33393-37010 |
from US $57.83 |
||
|
33393
|
33393
33393-60010
Hub, Transmission Clutch, No.3
[01.1990 - 06.1997] HDJ81..MTM; FZJ80,HZJ81..MTM |
33393-60010 |
— | ||
| replacement | |||||
|
33393
|
33393
33393-37010 Hub, Transmission Clutch, No.3[01.1990 - 06.1997] HDJ81..MTM; FZJ80,HZJ81..MTM |
33393-37010 |
from US $57.83 |
||
|
33393A
|
33393A
90520-34018 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．４０−２．４５，マーク Ａ; FZJ80,HZJ81..MTM 厚さ＝２．４０−２．４５，マーク Ａ |
90520-34018 |
from US $0.87 |
||
|
33393A
|
33393A
90520-34019 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．４５−２．５０，マーク Ｂ; FZJ80,HZJ81..MTM 厚さ＝２．４５−２．５０，マーク Ｂ |
90520-34019 |
from US $1.50 |
||
|
33393A
|
33393A
90520-34020 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｃ; FZJ80,HZJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｃ |
90520-34020 |
from US $0.87 |
||
|
33393A
|
33393A
90520-34021 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｄ; FZJ80,HZJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｄ |
90520-34021 |
US $0.87 |
||
|
33393A
|
33393A
90520-34022 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｅ; FZJ80,HZJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｅ |
90520-34022 |
US $0.87 |
||
|
33393A
|
33393A
90520-34023 Ring, Shaft Snap[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｆ; FZJ80,HZJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｆ |
90520-34023 |
US $0.87 |
||
|
33394
|
33394
33394-60010 Key, Synchromesh Shifting, No.3[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33394-60010 |
from US $1.56 |
||
|
33395
|
33395
33395-60020 Sleeve, Transmission Hub, No.3[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33395-60020 |
US $87.12 |
||
|
33402A
|
33402A
90364-28010 Bush Or Bearing (For Reverse Idler Gear)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-28010 |
from US $18 |
||
|
33411A
|
33411A
90365-30028 Bearing Or Roller(For Counter Gear Front)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90365-30028 |
from US $34.94 |
||
|
33411D
|
33411D
90520-27053 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．４５−２．５０，マーク Ａ; FZJ80,HZJ81..MTM 厚さ＝２．４５−２．５０，マーク Ａ |
90520-27053 |
from US $0.87 |
||
|
33411D
|
33411D
90520-27054 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｂ; FZJ80,HZJ81..MTM 厚さ＝２．５０−２．５５，マーク Ｂ |
90520-27054 |
US $1.79 |
||
|
33411D
|
33411D
90520-27055 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｃ; FZJ80,HZJ81..MTM 厚さ＝２．５５−２．６０，マーク Ｃ |
90520-27055 |
US $0.87 |
||
|
33411D
|
33411D
90520-27056 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｄ; FZJ80,HZJ81..MTM 厚さ＝２．６０−２．６５，マーク Ｄ |
90520-27056 |
US $0.87 |
||
|
33411D
|
33411D
90520-27057 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｅ; FZJ80,HZJ81..MTM 厚さ＝２．６５−２．７０，マーク Ｅ |
90520-27057 |
US $0.87 |
||
|
33411D
|
33411D
90520-27058 Ring, Counter Gear Front Bearing Snap, No.1[01.1990 - 01.1998] HDJ81..MTM 厚さ＝２．７０−２．７５，マーク Ｆ; FZJ80,HZJ81..MTM 厚さ＝２．７０−２．７５，マーク Ｆ |
90520-27058 |
US $0.87 |
||
|
33411P
|
33411P
90365-36002 Bearing, Counter Shaft Center[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90365-36002 |
from US $34.94 |
||
|
33411Q
|
33411Q
90520-63001 Ring, Counter Gear Front Bearing Snap, No.2[01.1990 - 01.1998] HDJ81..MTM 厚さ＝１．６０−１．７０; FZJ80,HZJ81..MTM 厚さ＝１．６０−１．７０ |
90520-63001 |
from US $1.14 |
||
|
33421
|
33421
33421-60110
Gear, Counter
[01.1990 - 01.1998] HZJ81..MTM |
33421-60110 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-60112
Gear, Counter
[01.1990 - 01.1998] HZJ81..MTM |
33421-60112 |
— | ||
|
33428B
|
33428B
90364-46005 Bearing, Needle Roller (For 5Th Gear)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90364-46005 |
from US $24.86 |
||
|
33451
|
33451
33451-60020 Shaft, Reverse Idler Gear[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33451-60020 |
US $15.03 |
||
|
33451A
|
33451A
90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
90280-03002 |
US $1.61 |
||
|
33461
|
33461
33461-60040
Gear, Reverse Idler
[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33461-60040 |
— | ||
| replacement | |||||
|
33461
|
33461
33461-37030 Gear, Reverse Idler[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33461-37030 |
US $144.14 |
||
|
33462
|
33462
33462-60020 Washer, Reverse Idler Thrust[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33462-60020 |
from US $5.21 |
||
|
33464
|
33464
33464-60010 Washer, Reverse Idler Thrust, No.2[01.1990 - 01.1998] HDJ81..MTM; FZJ80,HZJ81..MTM |
33464-60010 |
from US $4.30 |
||
|
36235B
|
36235B
33364-60050 Sleeve, Transmission Hub, No.2[08.1992 - 08.1996] FZJ80,HDJ81,HZJ81..MTM |
33364-60050 |
from US $106.58 |
||
