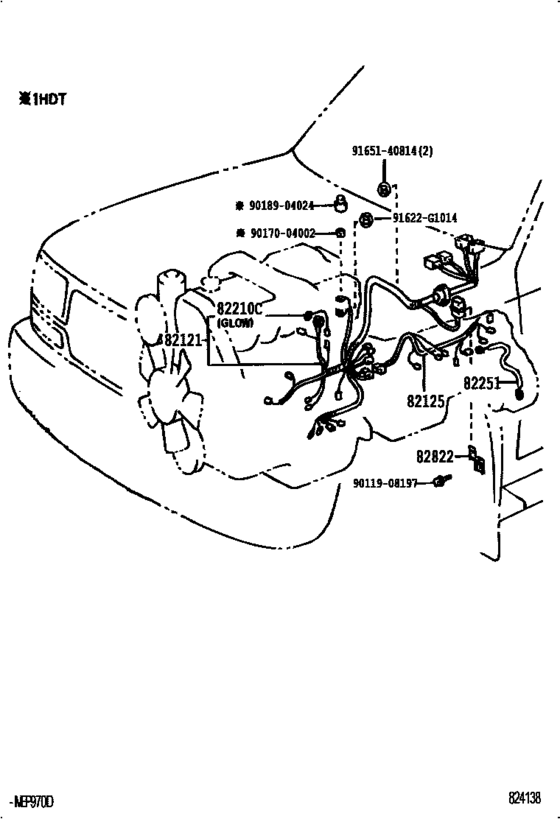

Wiring & Clamp ([01.1990 - 01.1995] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ (9001-9501)HDJ81,HZJ81) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-60113
Wire, Engine
[11.1992 - 01.1995] HDJ81,HZJ81..MTM |
82121-60113 |
— | ||
|
82121
|
82121
82121-60114
Wire, Engine
[01.1995 - 08.1996] HZJ81..MTM |
82121-60114 |
— | ||
|
82121
|
82121
82121-60115 Wire, Engine[08.1996 - 04.1997] HZJ81..MTM |
82121-60115 |
US $260.62 |
||
| replacement | |||||
|
82121
|
82121
82121-60116
Wire, Engine
[08.1996 - 04.1997] HZJ81..MTM |
82121-60116 |
— | ||
|
82121
|
82121
82121-60116
Wire, Engine
[04.1997 - 01.1998] HZJ81..MTM |
82121-60116 |
— | ||
|
82125
|
82125
82125-60043
Wire, Transmission
[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81..MTM |
82125-60043 |
— | ||
|
82210C
|
82210C
90982-08190 Fusible Link[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81 ６０Ａ，メス端子 |
90982-08190 |
US $13.44 |
||
|
82210C
|
82210C
90982-08206
Fusible Link
[08.1992 - 01.1998] HDJ81,HZJ81 ＧＬＯＷ ＲＥＳＩＳＴＥＲ,E/G WIRE GLOW |
90982-08206 |
— | ||
|
82210C
|
82210C
90982-08227 Fusible Link[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81 ５０Ａ，メス端子 |
90982-08227 |
US $7.88 |
||
|
82210C
|
82210C
90982-08265
Fusible Link
[01.1990 - 01.1995] HDJ81,HZJ81 長さ＝１１０，０．５ グリーン,STARTER |
90982-08265 |
— | ||
|
82210C
|
82210C
90982-08266
Fusible Link
[01.1990 - 01.1995] HDJ81,HZJ81 ＭＡＩＮ，ＧＬＯＷ，ＨＥＡＤ，ＡＭ１ |
90982-08266 |
— | ||
|
82251
|
82251
82251-60040
Wire, Speed Sensor
[08.1992 - 01.1998] HZJ81..SOB..MTM;HDJ81,HZJ81..LUB..(DSL,TD2) |
82251-60040 |
— | ||
|
82251
|
82251
82251-60050
Wire, Speed Sensor
[08.1992 - 01.1998] FZJ80,HDJ81,HZJ81..GX,VX,VXL ｱﾘ(LSD) |
82251-60050 |
— | ||
|
82822
|
82822
82822-60010 Bracket,connector Block[08.1992 - 01.1995] FZJ80,HDJ81,HZJ81; FZJ80;HZJ81..VX,VXL;HZJ81..SOB..GX |
82822-60010 |
US $5.59 |
||
|
91622G1014
|
91622G1014
91622-G1014 BOLT WWASHER |
91622-G1014 |
US $1.05 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $3.05 |
||
|
9017004002
|
9017004002
90170-04002 Nut, Connecting(For Glow Plug) |
90170-04002 |
US $1.25 |
||
|
9018904024
|
9018904024
90189-04024 Grommet, Screw(For Glow Plug) |
90189-04024 |
from US $0.68 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
