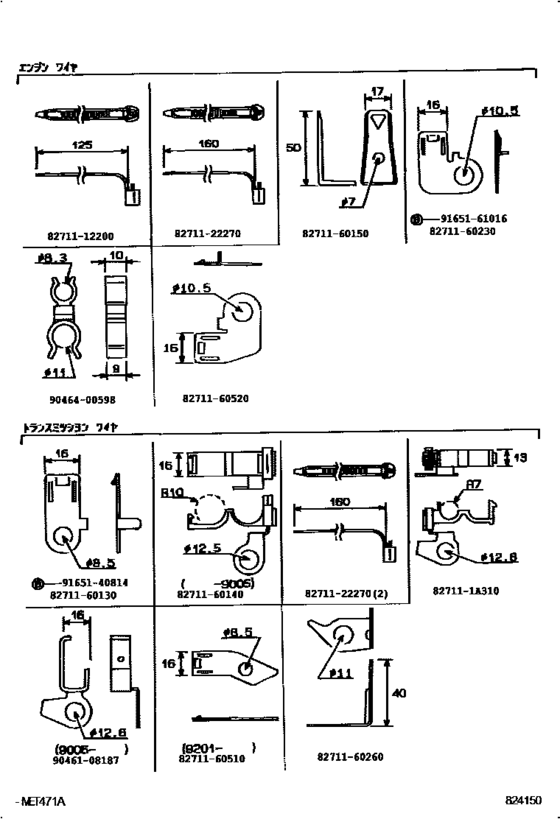

Wiring & Clamp ([01.1990 - 01.1995] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ (9001-9501)HDJ81,HZJ81) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1998
- Sales region
- Japan
- Frame
- HZJ81
- grade
- GX
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 80
- From
- 05.1993
- To
- 01.1998
- Vehicle Model
- Land Cruiser VAN
- Back Door
- SOB
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
827111A310
|
827111A310
82711-1A310
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-1A310 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
8271160130
|
8271160130
82711-60130
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60130 |
— | ||
|
8271160140
|
8271160140
82711-60140
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60140 |
— | ||
|
8271160150
|
8271160150
82711-60150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60150 |
US $4.66 |
||
|
8271160230
|
8271160230
82711-60230
Bracket,wiring Harness Clamp
|
82711-60230 |
— | ||
| replacement | |||||
|
8271160230
|
8271160230
82715-36170 Bracket,wiring Harness Clamp |
82715-36170 |
US $3.35 |
||
|
8271160260
|
8271160260
82711-60260
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60260 |
— | ||
|
8271160510
|
8271160510
82711-60510 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60510 |
US $1.92 |
||
|
8271160520
|
8271160520
82711-60520
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60520 |
— | ||
|
9046108187
|
9046108187
90461-08187
New Genuine Part
|
90461-08187 |
— | ||
|
9046400598
|
9046400598
90464-00598 New Genuine Part |
90464-00598 |
US $2.34 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
