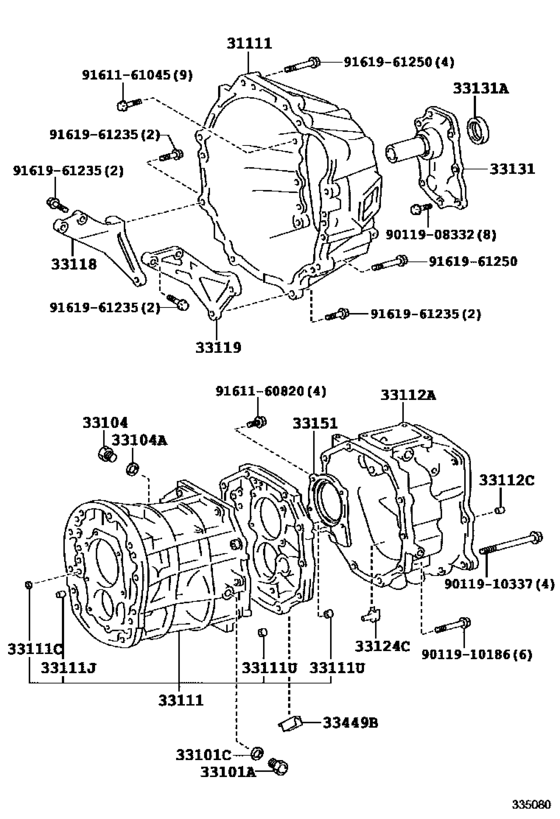

Clutch Housing & Transmission Case (Mtm) ([05.1993 - 04.1996] R150 (9305-9604)KZJ7#..MTM) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- KZJ71
- grade
- SX
- body
- WG
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 05.1993
- To
- 04.1996
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 3NO
- Emission Regulation
- Y
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-60270
Housing, Clutch
[05.1993 - 04.1996] KZJ7#..MTM |
31111-60270 |
— | ||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[05.1993 - 08.1999] HZJ7#,KZJ7#,PZJ7#..MTM |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[05.1993 - 08.1999] HZJ7#,KZJ7#,PZJ7#..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1993 - 08.1999] HZJ7#,KZJ7#,PZJ7#..MTM |
90430-T0021 |
US $0.99 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[05.1993 - 04.1996] KZJ7#..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[05.1993 - 04.1996] KZJ7#..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1993 - 04.1996] KZJ7#..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-60030 Case, Manual Transmission[05.1993 - 12.1995] KZJ7#..MTM |
33101-60030 |
US $675.58 |
||
|
33111
|
33111
33101-60060 Case, Manual Transmission[12.1995 - 04.1996] KZJ7#..MTM |
33101-60060 |
US $675.58 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[05.1993 - 04.1996] KZJ7#,PZJ7#..MTM 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[05.1993 - 04.1996] KZJ7#,PZJ7#..MTM 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.24 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[05.1993 - 04.1996] KZJ7#,PZJ7#..MTM 長さ＝１４，外径＝１５ |
90253-15001 |
from US $1.05 |
||
|
33112A
|
33112A
36117-60050
Adapter, Transfer
[05.1993 - 04.1996] KZJ7#..MTM |
36117-60050 |
— | ||
|
33112C
|
33112C
90250-12216 Pin, Straight(For Manual Transmission Case)[05.1993 - 04.1996] KZJ7#..MTM |
90250-12216 |
US $2.04 |
||
|
33118
|
33118
33118-60050
Plate, Stiffener, Rh(Mtm)
[05.1993 - 04.1996] KZJ7#..MTM |
33118-60050 |
— | ||
|
33119
|
33119
33119-60050
Plate, Stiffener, Lh(Mtm)
[05.1993 - 04.1996] KZJ7#..MTM |
33119-60050 |
— | ||
|
33124C
|
33124C
33124-36010 Pipe, Oil Receiver(Mtm)[05.1993 - 04.1996] KZJ7#..MTM |
33124-36010 |
from US $1.63 |
||
|
33131
|
33131
33131-35031
Retainer, Bearing, Front(Mtm)
[05.1993 - 04.1996] KZJ7#..MTM |
33131-35031 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-35032 RETAINER BEARING[05.1993 - 04.1996] KZJ7#..MTM |
33131-35032 |
from US $55.27 |
||
|
33131A
|
33131A
90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)[05.1993 - 04.1996] KZJ7#..MTM |
90311-32012 |
from US $5.87 |
||
|
33151
|
33151
33151-35020 Retainer, Output Shaft Rear Bearing(Mtm)[05.1993 - 04.1996] KZJ7#..MTM |
33151-35020 |
from US $23.52 |
||
|
33449B
|
33449B
33449-35010 Magnet, Transmission[05.1993 - 04.1996] KZJ7#..MTM |
33449-35010 |
US $6.29 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910337
|
9011910337
90119-10337
BOLT
|
90119-10337 |
— | ||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
