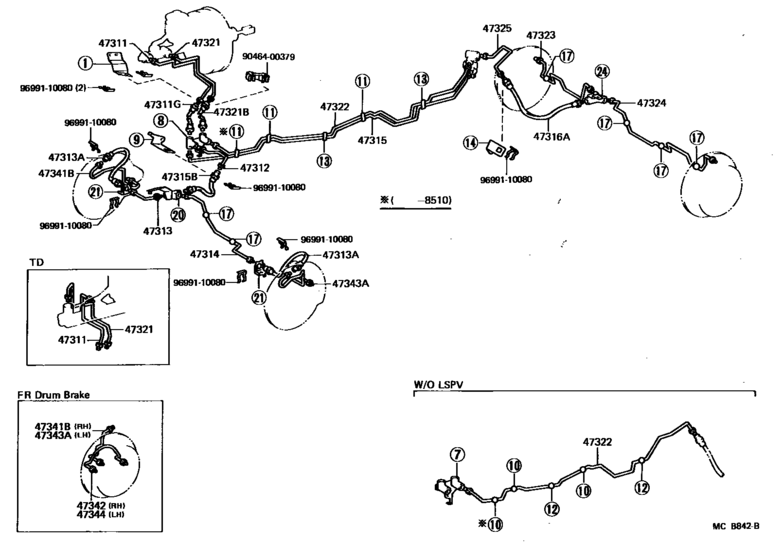

Brake Tube & Clamp ([11.1984 - ] (8411- )LJ70..RHD) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1988
- Sales region
- General
- Frame
- LJ70
- grade
- LX
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47312-60540 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [11.1984 - 01.1990] LJ70..RHD..DSL |
47312-60540 |
US $8.01 |
||
|
47311G
|
47311G
96940-32755 Hose, Flexible(For Brake Tube)[11.1984 - 01.1990] LJ70 |
96940-32755 |
US $19.99 |
||
|
47312
|
47312
47313-60160 Tube, Front Brake, No.2[11.1984 - 08.1986] LJ70 |
47313-60160 |
US $8.01 |
||
|
47312
|
47312
47313-60161
Tube, Front Brake, No.2
[08.1986 - 01.1990] LJ70 |
47313-60161 |
— | ||
|
47313
|
47313
47314-60150
Tube, Front Brake, No.3
[11.1984 - 01.1990] LJ70,RJ70 |
47314-60150 |
— | ||
|
47313A
|
47313A
90947-02467 Hose, Flexible, No.1(For Front)[11.1984 - 01.1990] LJ70,RJ70 |
90947-02467 |
US $16.07 |
||
|
47314
|
47314
47315-60300
Tube, Front Brake, No.4
[11.1984 - 01.1990] LJ70,RJ70 |
47315-60300 |
— | ||
|
47315
|
47315
47316-60201 Tube, Front Brake, No.5[10.1985 - 01.1990] LJ70 |
47316-60201 |
US $24.61 |
||
|
47315B
|
47315B
96940-32755 Hose, Flexible(For Brake Tube)[11.1984 - 01.1990] LJ70,RJ70 |
96940-32755 |
US $19.99 |
||
|
47316A
|
47316A
96940-34605 Hose, Flexible(For Rear Brake Tube)[11.1984 - 01.1990] LJ70,RJ70 |
96940-34605 |
US $19.44 |
||
|
47321
|
47321
47322-60430 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [11.1984 - 01.1990] LJ70..RHD..DSL |
47322-60430 |
US $8.01 |
||
|
47321B
|
47321B
96940-32305
Hose, Clutch, No.1
[11.1984 - 01.1990] LJ70 |
96940-32305 |
— | ||
|
47322
|
47322
47323-60211 Tube, Rear Brake, No.2[10.1985 - 01.1990] LJ70 W/LSPV |
47323-60211 |
US $25.33 |
||
|
47323
|
47323
47324-60080
Tube, Rear Brake, No.3
[11.1984 - 01.1990] LJ70,RJ70 |
47324-60080 |
— | ||
|
47324
|
47324
47325-60070
Tube, Rear Brake, No.4
[11.1984 - 01.1990] LJ70,RJ70 |
47325-60070 |
— | ||
|
47325
|
47325
47326-60070
Tube, Rear Brake, No.5
[11.1984 - 01.1990] LJ70,RJ70 |
47326-60070 |
— | ||
|
47341B
|
47341B
47341-60050
Tube, Wheel Cylinder, Front Rh No.1
[11.1984 - 01.1990] LJ70,RJ70 FR DISC BRAKE |
47341-60050 |
— | ||
|
47343A
|
47343A
47343-60050
Tube, Wheel Cylinder, Front Lh No.1
[11.1984 - 01.1990] LJ70,RJ70 FR DISC BRAKE |
47343-60050 |
— | ||
|
9046400379
|
9046400379
90464-00379 Clamp |
90464-00379 |
US $2.04 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
