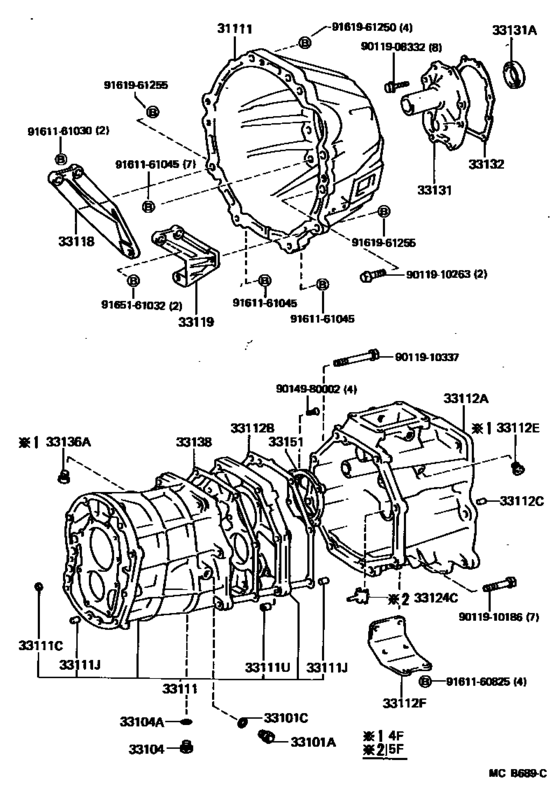

Clutch Housing & Transmission Case (Mtm) ([11.1984 - ] (8411- )LJ70..DSL) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1988
- Sales region
- General
- Frame
- LJ70
- grade
- LX
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22111 Housing, Clutch[11.1984 - 01.1990] LJ70..DSL |
31111-22111 |
US $390.21 |
||
| replacement | |||||
|
31111
|
31111
31111-22114 Housing, Clutch[11.1984 - 01.1990] LJ70..DSL |
31111-22114 |
US $266.45 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90430-T0021 |
US $0.99 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[11.1984 - 01.1990] BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..MTM..(CBR,DSL) |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-35010 Case, Manual Transmission[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
33101-35010 |
US $557.65 |
||
| replacement | |||||
|
33111
|
33111
33101-71020 Case, Manual Transmission[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
33101-71020 |
US $417.87 |
||
|
33111
|
33111
33101-35050 Case, Manual Transmission[08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
33101-35050 |
US $663.94 |
||
| replacement | |||||
|
33111
|
33111
33101-71020 Case, Manual Transmission[08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
33101-71020 |
US $417.87 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[11.1984 - 01.1990] LJ70,RJ70 OD=14 |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[11.1984 - 01.1990] LJ70,RJ70 L=16,OD=12 |
90250-12002 |
from US $1.24 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[11.1984 - 01.1990] LJ70,RJ70 L=14,OD=15 |
90253-15001 |
from US $1.05 |
||
|
33112A
|
33112A
36117-60040 Adapter, TransferTRANSFER [11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
36117-60040 |
US $356.72 |
||
| replacement | |||||
|
33112A
|
33112A
36117-60060 Adapter, TransferTRANSFER [11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
36117-60060 |
US $398.94 |
||
|
33112A
|
33112A
36117-60060 Adapter, TransferTRANSFER [08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
36117-60060 |
US $398.94 |
||
|
33112B
|
33112B
33138-28020
Gasket, Extension Housing(Mtm)
[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
33138-28020 |
— | ||
|
33112C
|
33112C
90250-12216 Pin, Straight(For Manual Transmission Case)[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
90250-12216 |
US $2.04 |
||
|
33112E
|
33112E
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[11.1984 - 01.1990] LJ70,RJ70..4F |
90341-12008 |
from US $3.27 |
||
|
33112F
|
33112F
36118-60010
Bracket, Transfer Adapter
[11.1984 - 01.1990] LJ70,RJ70..CBR,DSL |
36118-60010 |
— | ||
|
33118
|
33118
33118-25020 Plate, Stiffener, Rh(Mtm)[11.1984 - 01.1990] LJ70 |
33118-25020 |
US $22.01 |
||
|
33119
|
33119
33119-25020 Plate, Stiffener, Lh(Mtm)[11.1984 - 01.1990] LJ70 |
33119-25020 |
US $31.62 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[11.1984 - 01.1990] LJ70,RJ70..CBR,DSL |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30010
Seal, Oil(For Transmission Front Bearing Retainer)
[08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
90311-30010 |
— | ||
| replacement | |||||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[11.1984 - 01.1990] LJ70,RJ70..CBR,DSL |
33132-28010 |
from US $3.48 |
||
|
33136A
|
33136A
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[11.1984 - 01.1990] LJ70,RJ70..4F |
90341-12008 |
from US $3.27 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[11.1984 - 08.1988] LJ70,RJ70..CBR,DSL |
33151-28010 |
— | ||
|
33151
|
33151
33151-35030 Retainer, Output Shaft Rear Bearing(Mtm)[08.1988 - 01.1990] LJ70,RJ70..CBR,DSL |
33151-35030 |
from US $20.16 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910263
|
9011910263
90119-10263
New Genuine Part
|
90119-10263 |
— | ||
| replacement | |||||
|
9011910263
|
9011910263
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9011910337
|
9011910337
90119-10337
BOLT
|
90119-10337 |
— | ||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
