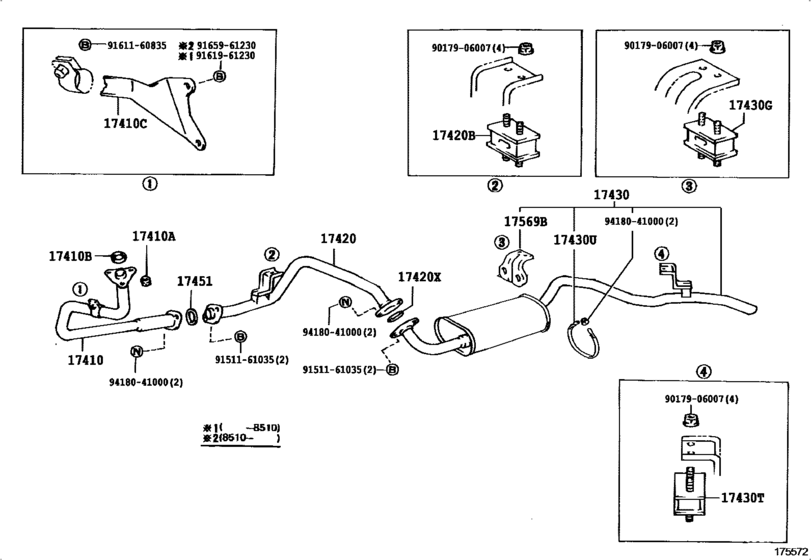

Exhaust Pipe ([11.1984 - ] (8411- )2L#) Diagram Toyota LAND CRUISER
- Year
- 1986 - 1988
- Sales region
- General
- Frame
- LJ70
- grade
- LX
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-54021 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1985 - 01.1990] 2L..LJ70 |
17401-54021 |
US $248.98 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
90179-10070 |
from US $1.29 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[11.1984 - 01.1990] 3F,2L..FJ7#,LJ70 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[11.1984 - 01.1990] 3F,2L..FJ7#,LJ70 |
90917-06039 |
from US $2.20 |
||
|
17410C
|
17410C
17571-54251 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [11.1984 - 01.1990] 2L..LJ70 |
17571-54251 |
US $58.68 |
||
|
17420
|
17420
17403-54020 Pipe Assy, Exhaust, Center[10.1985 - 01.1990] 2L#..LJ70 |
17403-54020 |
US $133.95 |
||
|
17420B
|
17420B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 13BT,3B,2L#..BJ7#,LJ70 |
17567-61030 |
from US $14.29 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[10.1985 - 01.1990] 2L#..LJ70 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[10.1985 - 01.1990] 2L#..LJ70 |
90917-06045 |
from US $1.56 |
||
|
17430
|
17430
17430-54840 Pipe Assy, Exhaust, Tail[10.1985 - 01.1990] 2L#..LJ70 |
17430-54840 |
US $531.44 |
||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
17567-61030 |
from US $14.29 |
||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
17567-61030 |
from US $14.29 |
||
|
17430U
|
17430U
17504-61020
Clamp No.1, Exhaust Tail Pipe (For Rear)
[11.1984 - 01.1990] 22R,13BT,3B,3F,2L#..BJ70,73,74,FJ70,73,LJ70,RJ70 |
17504-61020 |
— | ||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[10.1985 - 08.1986] 2L#..LJ70 |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[10.1985 - 08.1986] 2L#..LJ70 |
90917-06039 |
from US $2.20 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1986 - 01.1990] 3B,2L#..BJ70,73,75,LJ70 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1986 - 01.1990] 3B,2L#..BJ70,73,75,LJ70 |
90917-06045 |
from US $1.56 |
||
|
17569B
|
17569B
17569-61020
Stay, Exhaust Pipe Support, No.2
[11.1984 - 01.1990] 22R,13BT,3B,3F,2L#..BJ70,73,74,FJ70,73,LJ70,RJ70 |
17569-61020 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161961230
|
9161961230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9165961230
|
9165961230
91659-61230
New Genuine Part
|
91659-61230 |
— | ||
| replacement | |||||
|
9165961230
|
9165961230
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
