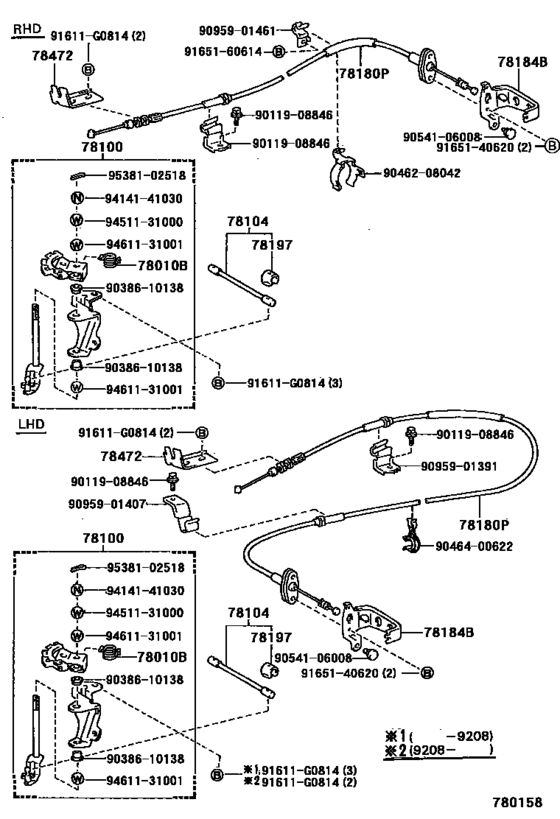

Accelerator Link ([01.1990 - ] (9001- )LJ7#) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1996
- Sales region
- General
- Frame
- LJ79
- grade
- LX
- body
- HT
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 04.1990
- To
- 04.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010B
|
78010B
90508-16114 Spring, Torsion (For Accelerator Link)[01.1990 - 05.1993] LJ7# |
90508-16114 |
US $2.80 |
||
|
78100
|
78100
78100-35071 Link Assy, Accelerator[01.1990 - 05.1993] LJ7# |
78100-35071 |
from US $59.94 |
||
|
78104
|
78104
78104-22140 Rod Sub-Assy, Accelerator Connecting, No.2[01.1990 - 05.1993] LJ7# |
78104-22140 |
from US $6.88 |
||
|
78180P
|
78180P
78180-60130 Cable Assy, Accelerator ControlACCELERATOR CONTROL [01.1990 - 05.1993] LJ7#..RHD |
78180-60130 |
US $59.40 |
||
|
78180P
|
78180P
78180-60131 Cable Assy, Accelerator ControlACCELERATOR CONTROL [05.1993 - 04.1996] LJ7#..RHD |
78180-60131 |
US $59.40 |
||
|
78184B
|
78184B
78184-90K02 Bracket, Accelerator Control Cable[01.1990 - 05.1993] FJ7#,FZJ70,75,LJ7#,RJ7#..RHD |
78184-90K02 |
US $29.27 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[01.1990 - 05.1993] HZJ7#,LJ7#,PZJ7# |
78197-10010 |
from US $1.25 |
||
|
78472
|
78472
78472-35010
Support, Throttle Control Cable
[01.1990 - 05.1993] LJ7# |
78472-35010 |
— | ||
|
91611G0814
|
91611G0814
91611-G0814
Bolt(For Oil Receiver Pipe)
|
91611-G0814 |
— | ||
| replacement | |||||
|
91611G0814
|
91611G0814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $4.30 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9046400622
|
9046400622
90464-00622 New Genuine Part |
90464-00622 |
US $3.79 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.54 |
||
|
9095901391
|
9095901391
90959-01391
New Genuine Part
|
90959-01391 |
— | ||
|
9095901407
|
9095901407
90959-01407
New Genuine Part
|
90959-01407 |
— | ||
|
9095901461
|
9095901461
90959-01461 New Genuine Part |
90959-01461 |
US $3.64 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9414141030
|
9414141030
94141-41030 New Genuine Part |
94141-41030 |
US $2.33 |
||
|
9451131000
|
9451131000
94511-31000 New Genuine Part |
94511-31000 |
US $2.18 |
||
|
9461131001
|
9461131001
94611-31001 New Genuine Part |
94611-31001 |
US $2.18 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
