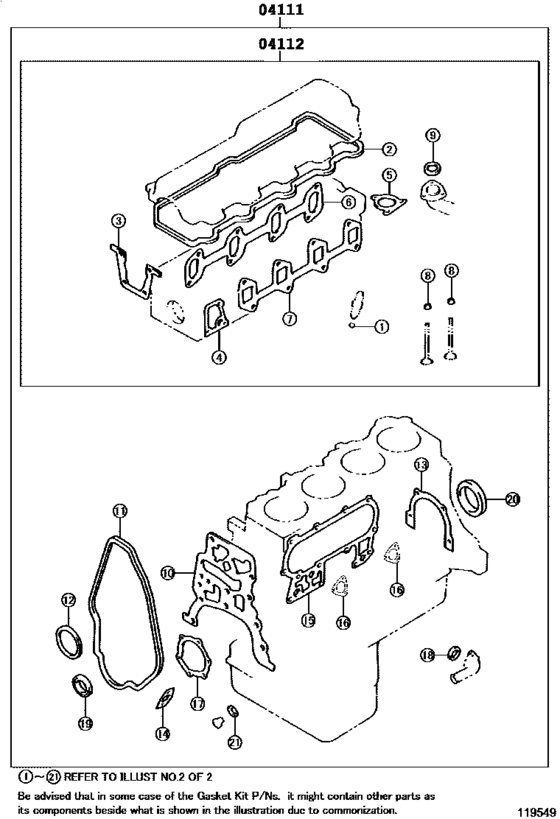

Engine Overhaul Gasket Kit ([04.1990 - 04.1996] (9004-9604)3L) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1996
- Sales region
- General
- Frame
- LJ79
- grade
- LX
- body
- HT
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 04.1990
- To
- 04.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04111
|
04111
04111-54120 Gasket Kit, Engine Overhaul[04.1990 - 08.1991] 3L..LJ72,79 |
04111-54120 |
US $465.92 |
||
| replacement | |||||
|
04111
|
04111
04111-54121 Gasket Kit, Engine Overhaul[04.1990 - 08.1991] 3L..LJ72,79 |
04111-54121 |
US $460.10 |
||
|
04111
|
04111
04111-54121 Gasket Kit, Engine Overhaul[08.1991 - 05.1993] 3L..LJ72,79 |
04111-54121 |
US $460.10 |
||
|
04112
|
04112
04112-54110 Gasket Kit, Engine Valve Grind[04.1990 - 08.1991] 3L..LJ72,79 |
04112-54110 |
US $291.20 |
||
| replacement | |||||
|
04112
|
04112
04112-54111 Gasket Kit, Engine Valve Grind[04.1990 - 08.1991] 3L..LJ72,79 |
04112-54111 |
US $288.29 |
||
|
04112
|
04112
04112-54111 Gasket Kit, Engine Valve Grind[08.1991 - 05.1993] 3L..LJ72,79 |
04112-54111 |
US $288.29 |
||
