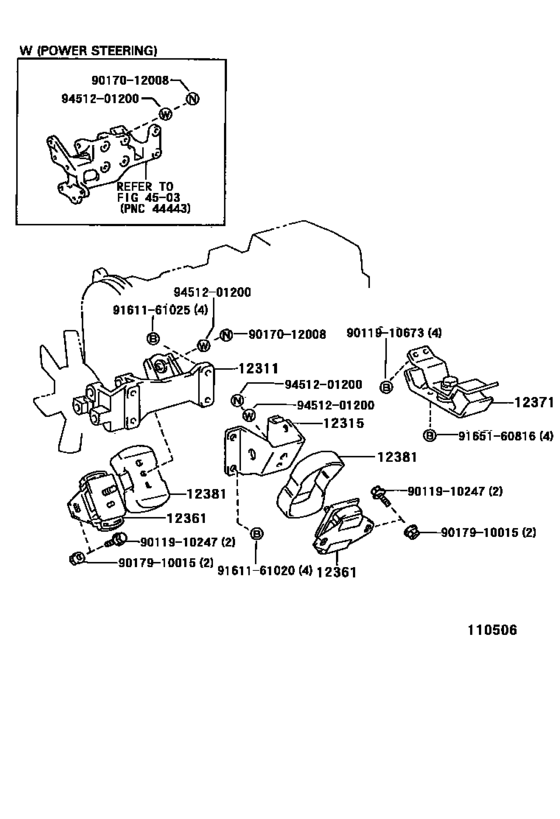

Mounting ([04.1990 - 04.1996] (9001-9305)2LT ; (9004-9604)3L) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1996
- Sales region
- General
- Frame
- LJ79
- grade
- LX
- body
- HT
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 04.1990
- To
- 04.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12315
|
12315
12312-54021 Bracket, Engine Mounting, Front No.2[01.1990 - 05.1993] 2LT,3L..LJ7# |
12312-54021 |
US $25.51 |
||
|
12361
|
12361
12361-54121 Insulator, Engine Mounting, Front[01.1990 - 05.1993] 2LT,3L..LJ7# |
12361-54121 |
from US $49.45 |
||
|
12371
|
12371
12371-54100 Insulator, Engine Mounting, Rear No.1[01.1990 - 05.1993] 2LT,3L..LJ7# |
12371-54100 |
from US $94.35 |
||
|
12381
|
12381
12381-54020 Stabilizer, Engine Mounting[01.1990 - 05.1993] 2LT,3L..LJ7# |
12381-54020 |
from US $17.47 |
||
|
9011910247
|
9011910247
90119-10247 BOLT |
90119-10247 |
US $3.58 |
||
|
9011910673
|
9011910673
90119-10673 New Genuine Part |
90119-10673 |
US $3.58 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
US $2.87 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.05 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
