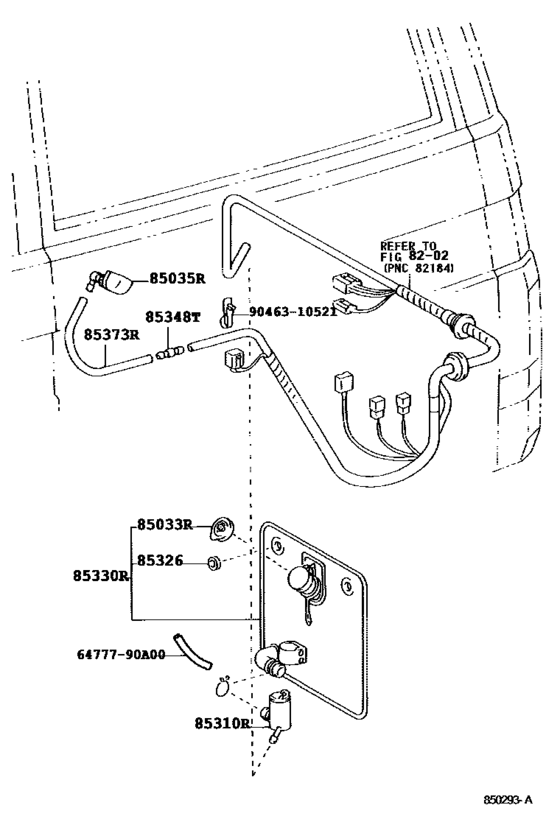

Rear Washer ([04.1990 - 04.1996] (9004-9604)KZJ77,LJ77,79,RJ77) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1996
- Sales region
- General
- Frame
- LJ79
- grade
- LX
- body
- HT
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 04.1990
- To
- 04.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033R
|
85033R
85332-20050
Cap Assy, Rear Washer
[04.1990 - 05.1993] LJ77,79,RJ77 |
85332-20050 |
— | ||
|
85035R
|
85035R
85391-60030
Nozzle Sub-Assy, Rear Washer
[04.1990 - 05.1993] LJ77,79,RJ77 |
85391-60030 |
— | ||
|
85035R
|
85035R
85391-60031
Nozzle Sub-Assy, Rear Washer
[05.1993 - 04.1996] KZJ77,LJ79,RJ77 |
85391-60031 |
— | ||
| replacement | |||||
|
85035R
|
85035R
85391-60040 Nozzle Sub-Assy, Rear Washer[05.1993 - 04.1996] KZJ77,LJ79,RJ77 |
85391-60040 |
from US $13.36 |
||
|
85310R
|
85310R
85310-22080 Motor And Pump Assy, Windshield Washer[01.1990 - 07.2002] FZJ70..HT..CBR;FZJ75,HZJ75..LX..ARL;FZJ70,78,HZJ70,78..ARL;FJ70,73,FZJ71,73,74,HDJ 78,HZJ71,73,LJ7#,PZJ70,73,RJ7#..HT |
85310-22080 |
from US $49.97 |
||
|
85326
|
85326
85326-60040 Packing, Washer[04.1990 - 05.1993] LJ77,79,RJ77 |
85326-60040 |
US $7.28 |
||
|
85330R
|
85330R
85325-60040 Jar Assy, Rear Washer[04.1990 - 05.1993] LJ77,79,RJ77 W(REAR WIPER) |
85325-60040 |
US $38.61 |
||
|
85348T
|
85348T
85349-89122 Valve Sub-Assy, Washer[01.1990 - 07.2002] FZJ70..HT..CBR;FZJ75,HZJ75..LX..ARL;FZJ70,78,HZJ70,78..ARL;FJ70,73,FZJ71,73,74,HDJ 78,HZJ71,73,LJ7#,PZJ70,73,RJ7#..HT |
85349-89122 |
from US $1.25 |
||
|
85373R
|
85373R
90099-33299 Joint, Windshield Washer Elbow, No.2[01.1992 - 05.1993] FZJ75,HZJ75..LX..ARL;FJ70,FZJ70,73,HZJ70,LJ7#,PZJ70,RJ7#..HT *H,L=230 |
90099-33299 |
from US $4.37 |
||
|
85373R
|
85373R
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1990 - 01.1992] FJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#..HT *H,L=230 |
90446-06013 |
from US $0.70 |
||
|
6477790A00
|
6477790A00
64777-90A00
Protector, Quarter, Inner
|
64777-90A00 |
— | ||
| replacement | |||||
|
6477790A00
|
6477790A00
64777-60030 Protector, Sun Roof Headlining, Center |
64777-60030 |
US $4.27 |
||
|
9046310521
|
9046310521
90463-10521 CLAMP |
90463-10521 |
from US $1.07 |
||
