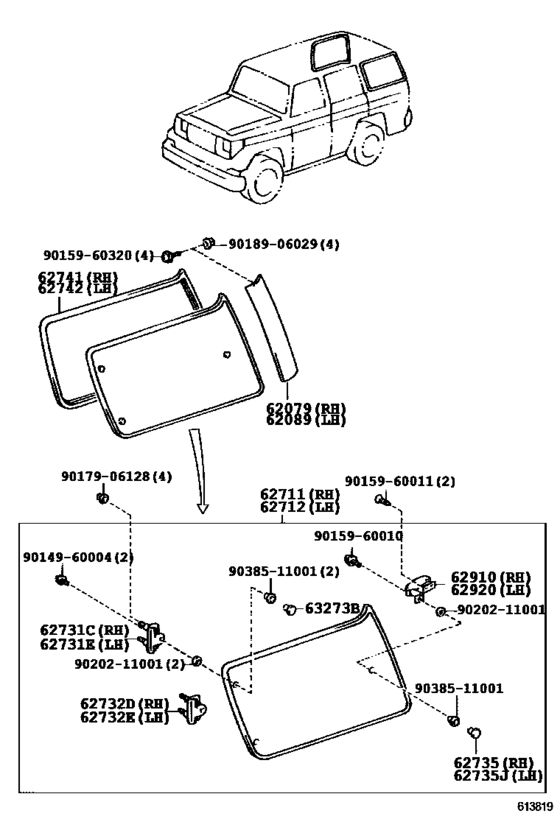

Side Window ([04.1990 - 04.1996] (9004-9604)KZJ77,LJ77,79,RJ77) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1996
- Sales region
- General
- Frame
- LJ79
- grade
- LX
- body
- HT
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 04.1990
- To
- 04.1996
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62079
|
62079
62079-60010 Deflector Sub-Assy, Quarter Window, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62079-60010 |
US $171.81 |
||
|
62089
|
62089
62089-60010
Deflector Sub-Assy, Quarter Window, Lh
[04.1990 - 05.1993] LJ77,79,RJ77 |
62089-60010 |
— | ||
|
62711
|
62711
62710-60090
Glass, Quarter Window, Rh
[01.1992 - 05.1993] LJ77,79,RJ77..GEN *TEM,T=4.0 |
62710-60090 |
— | ||
|
62711
|
62711
62710-60100
Glass, Quarter Window, Rh
[04.1990 - 01.1992] LJ77,79,RJ77..LX *TT,T=4.0,BLUE |
62710-60100 |
— | ||
|
62711
|
62711
62710-60101
Glass, Quarter Window, Rh
[05.1993 - 04.1996] KZJ77,LJ79,RJ77 *TT,T=4.0,BLUE |
62710-60101 |
— | ||
| replacement | |||||
|
62711
|
62711
62710-60660 Glass, Quarter Window, Rh[05.1993 - 04.1996] KZJ77,LJ79,RJ77 *TT,T=4.0,BLUE |
62710-60660 |
US $194.92 |
||
|
62712
|
62712
62720-60050 Glass, Quarter Window, Lh[01.1992 - 05.1993] LJ77,79,RJ77..GEN *TEM,T=4.0 |
62720-60050 |
US $687.23 |
||
| replacement | |||||
|
62712
|
62712
62720-60060 Glass, Quarter Window, Lh[01.1992 - 05.1993] LJ77,79,RJ77..GEN *TEM,T=4.0 |
62720-60060 |
US $741.10 |
||
|
62712
|
62712
62720-60060 Glass, Quarter Window, Lh[04.1990 - 01.1992] LJ77,79,RJ77..LX *TT,T=4.0,BLUE |
62720-60060 |
US $741.10 |
||
|
62712
|
62712
62720-60061
Glass, Quarter Window, Lh
[05.1993 - 04.1996] KZJ77,LJ79,RJ77 *TT,T=4.0,BLUE |
62720-60061 |
— | ||
| replacement | |||||
|
62712
|
62712
62720-60560 Glass, Quarter Window, Lh[05.1993 - 04.1996] KZJ77,LJ79,RJ77 *TT,T=4.0,BLUE |
62720-60560 |
US $201.42 |
||
|
62731C
|
62731C
62731-60010 Hinge, Quarter Window, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62731-60010 |
US $7.88 |
||
|
62731E
|
62731E
62731-60010 Hinge, Quarter Window, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62731-60010 |
US $7.88 |
||
|
62732D
|
62732D
62732-60010 Hinge, Quarter Window, No.2, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62732-60010 |
US $7.88 |
||
|
62732E
|
62732E
62732-60010 Hinge, Quarter Window, No.2, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62732-60010 |
US $7.88 |
||
|
62735
|
62735
62735-14010 Retainer, Quarter Or Side Window Hinge[04.1990 - 05.1993] LJ77,79,RJ77 |
62735-14010 |
US $7.35 |
||
|
62735J
|
62735J
62735-14010 Retainer, Quarter Or Side Window Hinge[04.1990 - 05.1993] LJ77,79,RJ77 |
62735-14010 |
US $7.35 |
||
|
62741
|
62741
62741-60060 Weatherstrip, Quarter Window[04.1990 - 05.1993] LJ77,79,RJ77 |
62741-60060 |
from US $44.28 |
||
|
62742
|
62742
62741-60060 Weatherstrip, Quarter Window[04.1990 - 05.1993] LJ77,79,RJ77 |
62741-60060 |
from US $44.28 |
||
|
62910
|
62910
62910-60010 Lock Assy, Quarter Or Side Window, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62910-60010 |
US $35.28 |
||
|
62920
|
62920
62910-60010 Lock Assy, Quarter Or Side Window, Rh[04.1990 - 05.1993] LJ77,79,RJ77 |
62910-60010 |
US $35.28 |
||
|
63273B
|
63273B
63273-95701 Retainer, Quarter Or Side Window Hinge[04.1990 - 05.1993] LJ77,79,RJ77 |
63273-95701 |
from US $1.48 |
||
|
9014960004
|
9014960004
90149-60004 SCREW |
90149-60004 |
US $2.15 |
||
|
9015960010
|
9015960010
90159-60010 SCREW |
90159-60010 |
US $1.25 |
||
|
9015960011
|
9015960011
90159-60011 New Genuine Part |
90159-60011 |
US $2.15 |
||
|
9015960320
|
9015960320
90159-60320
New Genuine Part
|
90159-60320 |
— | ||
| replacement | |||||
|
9015960320
|
9015960320
90159-60510 Screw with washer |
90159-60510 |
from US $0.76 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.25 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9020211001
|
9020211001
90202-11001 NUT |
90202-11001 |
from US $0.84 |
||
| replacement | |||||
|
9020211001
|
9020211001
90202-T0002 WASHER |
90202-T0002 |
US $0.64 |
||
|
9038511001
|
9038511001
90385-11001 Gasket(For Quarter Or Side Window Lock Or Hinge) |
90385-11001 |
from US $1.44 |
||
