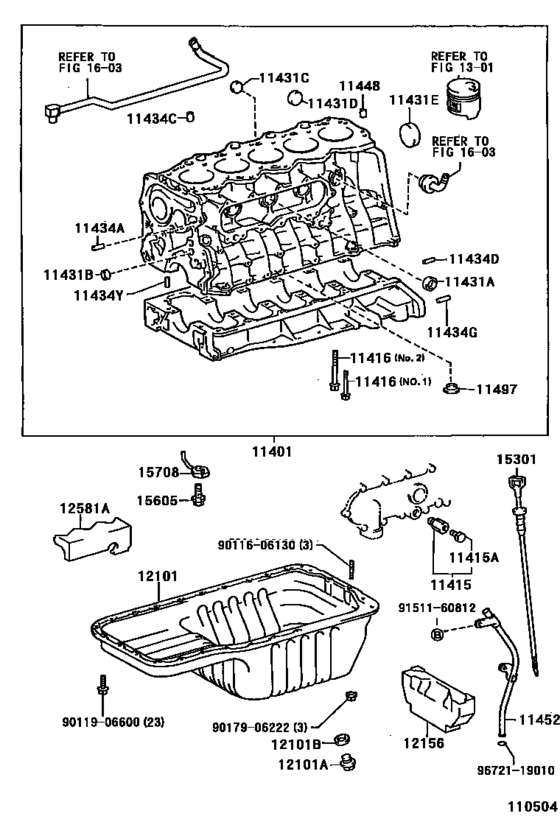

Cylinder Block ([01.1990 - 08.1992] (9001-9208)1PZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- Europe
- Frame
- PZJ70
- grade
- STD
- body
- HT
- ENGINE
- 1PZ
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19645 Block Sub-Assy, Cylinder[01.1990 - 08.1992] 1PZ..PZJ7# |
11401-19645 |
US $4,164.16 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[01.1990 - 08.1992] 1PZ..PZJ7# |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1990 - 08.1992] 1PZ..PZJ7# |
90345-52003 |
US $4.12 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[01.1990 - 08.1992] 1PZ..PZJ7# |
90910-09087 |
from US $4.12 |
||
|
11416
|
11416
90119-08182 Bolt(For Crankshaft Bearing Cap Set)[01.1990 - 08.1992] 1PZ..PZJ7# NO.1 |
90119-08182 |
from US $2.87 |
||
|
11416
|
11416
90910-02098 Bolt(For Crankshaft Bearing Cap Set)[01.1990 - 08.1992] 1PZ..PZJ7# NO.2 |
90910-02098 |
US $4.30 |
||
|
11431A
|
11431A
90331-35002 Plug, Tight, No.1(For Cylinder Block)[01.1990 - 08.1992] 1PZ..PZJ7# |
90331-35002 |
US $2.62 |
||
|
11431B
|
11431B
96411-41800 Plug, Tight, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
96411-41800 |
US $1.97 |
||
|
11431C
|
11431C
96411-42500 Plug, Tight, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
96411-42500 |
from US $2.95 |
||
|
11431D
|
11431D
96411-43500 Plug, Tight, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
96411-43500 |
US $4.66 |
||
|
11431E
|
11431E
96411-45000 Plug, Tight, No.1(For Cam Housing)[01.1990 - 08.1992] 1PZ..PZJ7# |
96411-45000 |
from US $5.02 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[01.1990 - 08.1992] 1PZ..PZJ7# L=18,OD=8 |
90250-08120 |
US $3.05 |
||
|
11434C
|
11434C
90250-08074 Pin, Straight(For Timing Gear Case)[01.1990 - 08.1992] 1PZ..PZJ7# L=15,OD=8 |
90250-08074 |
US $1.79 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[01.1990 - 08.1992] 1PZ..PZJ7# L=11,OD=6 |
90250-06068 |
US $3.30 |
||
|
11434G
|
11434G
90250-08054 Pin, Straight[01.1990 - 08.1992] 1PZ..PZJ7# |
90250-08054 |
US $2.15 |
||
|
11434Y
|
11434Y
90250-12006 Pin, Straight(For Oil Pan)[01.1990 - 08.1992] 1PZ..PZJ7# |
90250-12006 |
US $1.22 |
||
|
11448
|
11448
11448-17010 Orifice, Cylinder Block Oil[01.1990 - 08.1992] 1PZ..PZJ7# |
11448-17010 |
US $3.32 |
||
|
11452
|
11452
11452-18030 Guide, Oil Level Gage[01.1990 - 08.1992] 1PZ..PZJ7# |
11452-18030 |
US $34.07 |
||
|
11497
|
11497
11497-17010 Gasket, Cylinder Block Oil Hole[01.1990 - 08.1992] 1PZ..PZJ7# |
11497-17010 |
US $3.49 |
||
|
12101
|
12101
12101-18010
Pan Sub-Assy, Oil
[01.1990 - 08.1992] 1PZ..PZJ7# |
12101-18010 |
— | ||
| replacements | |||||
|
12101
|
12101
12101-18030
Pan Sub-Assy, Oil
[01.1990 - 08.1992] 1PZ..PZJ7# |
12101-18030 |
— | ||
|
12101
|
12101
12129-54010 Plug, Oil Pan[01.1990 - 08.1992] 1PZ..PZJ7# |
12129-54010 |
US $20.33 |
||
|
12101
|
12101
93385-16014 New Genuine Part[01.1990 - 08.1992] 1PZ..PZJ7# |
93385-16014 |
US $1.43 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.1990 - 08.1992] 1PZ..PZJ7#; 1HZ..HZJ7# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[01.1990 - 08.1992] 1PZ..PZJ7#; 1HZ..HZJ7# |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[01.1990 - 08.1992] 1PZ..PZJ7# |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.1990 - 08.1992] 1PZ..PZJ7# |
90430-12031 |
from US $1.61 |
||
|
12156
|
12156
12156-17010 Insulator, Oil Pan[01.1990 - 08.1992] 1PZ..PZJ7# |
12156-17010 |
US $103.32 |
||
|
12581A
|
12581A
12581-17010
Insulator, Cylinder Block, No.1
[01.1990 - 08.1992] 1PZ..PZJ7# |
12581-17010 |
— | ||
| replacement | |||||
|
12581A
|
12581A
12581-17011 Insulator, Cylinder Block, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
12581-17011 |
US $97.84 |
||
|
15301
|
15301
15301-17010 Gage Sub-Assy, Oil Level[01.1990 - 08.1992] 1PZ..PZJ7# |
15301-17010 |
US $20.33 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[01.1990 - 08.1992] 1PZ..PZJ7# |
15605-54010 |
US $12.01 |
||
|
15708
|
15708
15708-17010 Nozzle Sub-Assy, Oil, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
15708-17010 |
US $16.07 |
||
|
9011606130
|
9011606130
90116-06130 New Genuine Part |
90116-06130 |
US $1.49 |
||
|
9011906600
|
9011906600
90119-06600 Bolt |
90119-06600 |
US $2.87 |
||
|
9017906222
|
9017906222
90179-06222 NUT |
90179-06222 |
US $1.61 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $3.40 |
||
