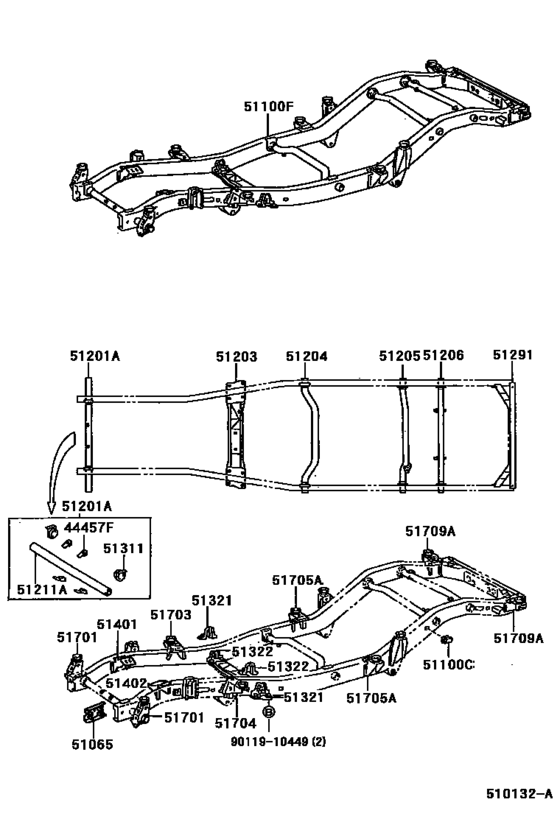

Frame ([01.1990 - 08.1999] (9001-9908)BJ73,HZJ70,73,PZJ70,73) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- Europe
- Frame
- PZJ70
- grade
- STD
- body
- HT
- ENGINE
- 1PZ
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51065
|
51065
51065-60041 Support Sub-Assy, Steering Gear BoxSTEERING GEAR BOX [01.1990 - 05.1993] BJ73,HZJ70,73,PZJ70,73 |
51065-60041 |
US $136.86 |
||
|
51100C
|
51100C
90950-01463 Plug, Hole(For Frame)[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# BLACK |
90950-01463 |
from US $3.58 |
||
|
51100C
|
51100C
90950-01754 Plug, Hole(For Frame)[01.1990 - 05.1993] LJ7#,PZJ7#,RJ7# BLUE |
90950-01754 |
US $3.14 |
||
|
51100F
|
51100F
51002-60063 Frame Sub-Assy[01.1990 - 08.1991] PZJ70 |
51002-60063 |
US $3,174.08 |
||
|
51201A
|
51201A
51201-60101
Crossmember Sub-Assy, Frame, No.1
[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# |
51201-60101 |
— | ||
| replacement | |||||
|
51201A
|
51201A
51201-60130
Crossmember Sub-Assy, Frame, No.1
[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# |
51201-60130 |
— | ||
|
51203
|
51203
51202-60131 Crossmember Sub-Assy, Frame, No.2[01.1990 - 05.1993] LJ7#,PZJ7#,RJ7# |
51202-60131 |
US $228.59 |
||
|
51204
|
51204
51203-60132 Crossmember Sub-Assy, Frame, No.3[01.1990 - 01.1992] BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
51203-60132 |
US $131.17 |
||
|
51205
|
51205
51204-60071 Crossmember Sub-Assy, Frame, No.4[01.1990 - 08.2001] BJ73,HZJ70,71,73,74,PZJ70,73 |
51204-60071 |
US $198.02 |
||
|
51206
|
51206
51205-60021 Crossmember Sub-Assy, Frame, No.5[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# |
51205-60021 |
US $199.47 |
||
| replacement | |||||
|
51206
|
51206
51250-60050 Crossmember Sub-Assy, Frame, No.5[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# |
51250-60050 |
US $198.02 |
||
|
51291
|
51291
51209-60130 Crossmember, Frame, Rear[01.1990 - 04.1990] BJ73,HZJ7#,LJ73,PZJ70,73,RJ7# |
51209-60130 |
US $320.32 |
||
|
51321
|
51321
51321-60041 Gusset, Crossmember, No.2 Rh[01.1990 - 05.1993] LJ7#,PZJ7#,RJ7# |
51321-60041 |
US $35.82 |
||
|
51322
|
51322
51321-60041 Gusset, Crossmember, No.2 Rh[01.1990 - 05.1993] LJ7#,PZJ7#,RJ7# |
51321-60041 |
US $35.82 |
||
|
51401
|
51401
51421-60140 Bracket Sub-Assy, Engine Front Mounting, Rh[01.1990 - 08.2001] BJ73,HZJ7#,PZJ7# |
51421-60140 |
US $57.66 |
||
|
51402
|
51402
51422-60120
Bracket Sub-Assy, Engine Front Mounting, Lh
[01.1990 - 08.1992] PZJ7# |
51422-60120 |
— | ||
|
51701
|
51701
51701-60070 Bracket Sub-Assy, Cab Mounting, No.1 Rh[01.1990 - 05.1993] BJ73,HZJ7#,PZJ7# |
51701-60070 |
US $33.83 |
||
|
51703
|
51703
51703-60030
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[01.1990 - 05.1993] BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
51703-60030 |
— | ||
|
51704
|
51704
51704-60020
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[01.1990 - 05.1993] BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
51704-60020 |
— | ||
|
51709A
|
51709A
51709-60031
Bracket Sub-Assy, Body Rear End Mounting
[01.1990 - 05.1993] BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
51709-60031 |
— | ||
| replacement | |||||
|
51709A
|
51709A
51709-60040
Bracket Sub-Assy, Body Rear End Mounting
[01.1990 - 05.1993] BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
51709-60040 |
— | ||
|
9011910449
|
9011910449
90119-10449 BOLT |
90119-10449 |
US $3.58 |
||
