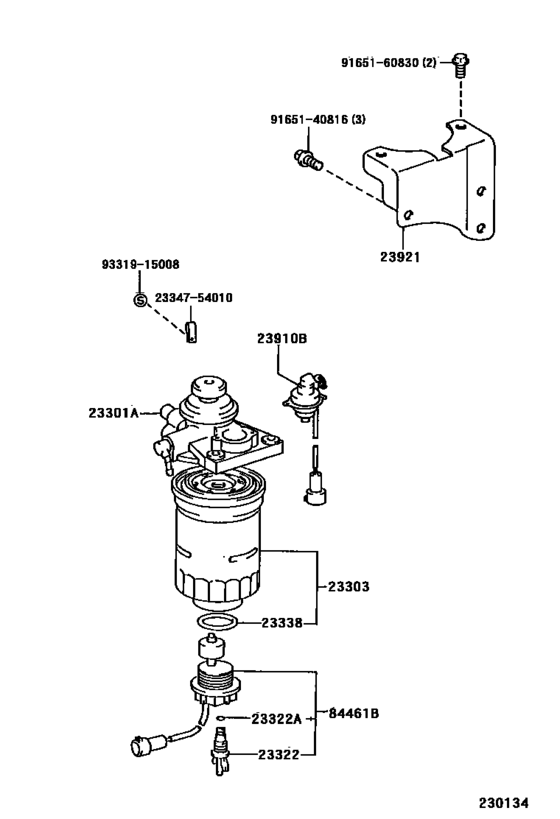

Fuel Filter ([01.1990 - 08.1992] (9001-9208)1PZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- Europe
- Frame
- PZJ70
- grade
- STD
- body
- HT
- ENGINE
- 1PZ
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23301A
|
23301A
23301-17060 Cap Assy, Fuel FilterFUEL FILTER [01.1990 - 08.1992] 1PZ..PZJ7# |
23301-17060 |
US $125.76 |
||
|
23301A
|
23301A
23301-17090
Cap Assy, Fuel Filter
[01.1990 - 08.1992] 1PZ..PZJ7# W(FUEL HEATER); 1HZ..HZJ7# W(FUEL HEATER) |
23301-17090 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[01.1990 - 08.1992] 1PZ..PZJ7# |
23303-64010 |
from US $51.47 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[01.1990 - 08.1992] 1PZ..PZJ7# |
23303-64010-00 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[01.1990 - 08.1992] 1PZ..PZJ7# |
23322-64010 |
from US $7.18 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[01.1990 - 08.1992] 1PZ..PZJ7# |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[01.1990 - 08.1992] 1PZ..PZJ7# |
23344-64010 |
from US $1.54 |
||
|
23910B
|
23910B
23910-17010
Heater Assy, Fuel
[01.1990 - 08.1992] 1PZ..PZJ7#; 1HZ..HZJ7# |
23910-17010 |
— | ||
|
23921
|
23921
23921-17030
Support, Fuel Filter
[01.1990 - 08.1992] 1PZ..PZJ7# |
23921-17030 |
— | ||
|
84461B
|
84461B
84461-35060 Level Warning Switch Assy[01.1990 - 08.1992] PZJ7# |
84461-35060 |
from US $80.16 |
||
|
2334754010
|
2334754010
23347-54010
Clip, Cord
|
23347-54010 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.58 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
