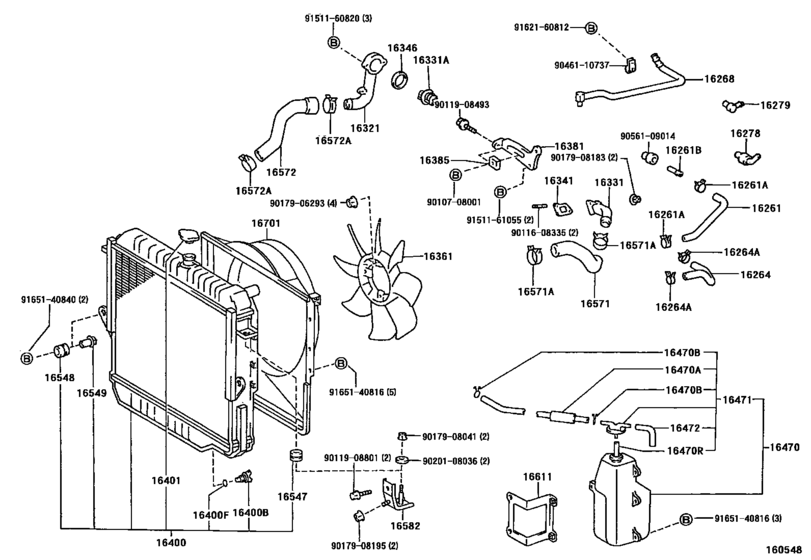

Radiator & Water Outlet ([01.1990 - 08.1992] (9001-9208)1PZ) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- Europe
- Frame
- PZJ70
- grade
- STD
- body
- HT
- ENGINE
- 1PZ
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-17010 Hose, Water By-Pass[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
16261-17010 |
US $9.32 |
||
|
16261A
|
16261A
90467-15022 Clip Or Clamp(For Ventilation Hose)[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
90467-15022 |
from US $3.05 |
||
|
16261B
|
16261B
90406-10014 Union(For Water By-Pass Hose)[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
90406-10014 |
US $3.76 |
||
|
16264
|
16264
16264-17010
Hose, Water By-Pass, No.2
[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
16264-17010 |
— | ||
| replacement | |||||
|
16264
|
16264
16264-17011 Hose, Water By-Pass, No.2[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
16264-17011 |
US $8.06 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[01.1990 - 08.1992] 1PZ..PZJ7# COLD SPEC |
90467-15022 |
from US $3.05 |
||
|
16268
|
16268
16268-17010 Pipe, Water By-Pass, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
16268-17010 |
US $67.37 |
||
|
16278
|
16278
16278-17010 Pipe, Water By-Pass, No.2[01.1990 - 08.1992] 1PZ..PZJ7# |
16278-17010 |
US $29.06 |
||
|
16279
|
16279
16279-17010 Pipe, Water By-Pass, No.3[01.1990 - 08.1992] 1PZ..PZJ7#..HT |
16279-17010 |
US $22.71 |
||
|
16321
|
16321
16321-17010 Inlet, Water[01.1990 - 11.1990] 1PZ..PZJ7# |
16321-17010 |
US $95.12 |
||
|
16331
|
16331
16331-17010 Outlet, Water[01.1990 - 11.1990] 1PZ..PZJ7# |
16331-17010 |
US $58.46 |
||
|
16331A
|
16331A
90916-03089 Thermostat[01.1990 - 11.1990] 1PZ..PZJ7# *WAX 76-90 |
90916-03089 |
US $26.88 |
||
|
16341
|
16341
16341-17010 Gasket, Water Outlet[01.1990 - 11.1990] 1PZ..PZJ7# |
16341-17010 |
US $3.40 |
||
|
16346
|
16346
16346-66020 Gasket, Thermostat[01.1990 - 11.1990] 1PZ..PZJ7# |
16346-66020 |
US $6.09 |
||
|
16361
|
16361
16361-17010 Fan[01.1990 - 11.1990] 1PZ..PZJ7# |
16361-17010 |
US $157.44 |
||
|
16381
|
16381
16381-17010 Bar, Fan Belt Adjusting[01.1990 - 11.1990] 1PZ..PZJ7# |
16381-17010 |
US $12.93 |
||
|
16385
|
16385
16385-17010 Slider, Fan Belt Adjusting[01.1990 - 11.1990] 1PZ..PZJ7# |
16385-17010 |
US $10.57 |
||
|
16400
|
16400
16400-17070
Radiator Assy
[01.1990 - 08.1992] 1PZ..PZJ7# |
16400-17070 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-17080 Radiator Assy[01.1990 - 08.1992] 1PZ..PZJ7# |
16400-17080 |
US $675.48 |
||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[01.1990 - 08.1992] 1PZ..PZJ7# |
16417-24200 |
US $6.99 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[01.1990 - 08.1992] 1PZ..PZJ7# |
16418-24200 |
US $5.73 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[01.1990 - 08.1992] 1PZ..PZJ7# |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[01.1990 - 08.1992] 1PZ..PZJ7# |
16401-54750 |
US $16.13 |
||
|
16470
|
16470
16470-17010
Tank Assy, Radiator Reserve
[01.1990 - 08.1992] 1PZ..PZJ7# |
16470-17010 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-17011 Tank Assy, Radiator Reserve[01.1990 - 08.1992] 1PZ..PZJ7# |
16470-17011 |
US $46.70 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.1990 - 08.1992] 1PZ..PZJ7# |
90445-12078 |
US $10.39 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1990 - 08.1992] 1PZ..PZJ7# |
90467-11085 |
US $1.79 |
||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[01.1990 - 08.1992] 1PZ..PZJ7# *H,L=280 |
90445-12078 |
US $10.39 |
||
|
16471
|
16471
16405-17010 Cap Sub-Assy, Reserve Tank[01.1990 - 08.1992] 1PZ..PZJ7# |
16405-17010 |
US $21.17 |
||
|
16472
|
16472
85338-74040
Hose(For Radiator Drain Cock)
[01.1990 - 08.1992] 1PZ..PZJ7# |
85338-74040 |
— | ||
|
16547
|
16547
16547-68070 Bush, Radiator Support, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
16547-68070 |
US $5.56 |
||
|
16548
|
16548
16548-68070 Bush, Radiator Support, No.2[01.1990 - 08.1992] 1PZ..PZJ7# |
16548-68070 |
US $8.06 |
||
|
16549
|
16549
16549-68070 Collar, Radiator Support, No.2[01.1990 - 08.1992] 1PZ..PZJ7# |
16549-68070 |
US $9.32 |
||
|
16571
|
16571
16571-17030
Hose, Radiator, Inlet
[01.1990 - 08.1992] 1PZ..PZJ7# |
16571-17030 |
— | ||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[01.1990 - 08.1992] 1PZ..PZJ7# |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[01.1990 - 08.1992] 1PZ..PZJ7# |
90466-41008 |
from US $5.73 |
||
|
16572
|
16572
16572-17030 Hose, Radiator, Outlet[01.1990 - 08.1992] 1PZ..PZJ7# |
16572-17030 |
from US $24.88 |
||
|
16572A
|
16572A
96111-10490 Clamp Or Clip, Sub Radiator Hose[01.1990 - 08.1992] 1PZ..PZJ7# RADIATOR SIDE |
96111-10490 |
US $1.97 |
||
|
16572A
|
16572A
96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1990 - 08.1992] 1PZ..PZJ7# ENGINE SIDE |
96111-10530 |
US $4.84 |
||
|
16582
|
16582
16582-68010 Bracket, Radiator, No.1[01.1990 - 08.1992] 1PZ..PZJ7# |
16582-68010 |
US $45.53 |
||
|
16611
|
16611
16611-17010 Bracket, Radiator Reserve Tank[01.1990 - 08.1992] 1PZ..PZJ7# |
16611-17010 |
US $23.88 |
||
| replacement | |||||
|
16611
|
16611
16611-17011 Bracket, Radiator Reserve Tank[01.1990 - 08.1992] 1PZ..PZJ7# |
16611-17011 |
US $15.90 |
||
|
16701
|
16701
16711-17030
Shroud Sub-Assy, Fan
[01.1990 - 08.1992] 1PZ..PZJ7# |
16711-17030 |
— | ||
|
9010708001
|
9010708001
90107-08001
Bolt(for Transaxle Case & Engine Setting)
|
90107-08001 |
— | ||
| replacement | |||||
|
9010708001
|
9010708001
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
US $2.51 |
||
|
9011608335
|
9011608335
90116-08335 New Genuine Part |
90116-08335 |
US $1.79 |
||
|
9011908493
|
9011908493
90119-08493 BOLT |
90119-08493 |
US $1.97 |
||
|
9011908801
|
9011908801
90119-08801
New Genuine Part
|
90119-08801 |
— | ||
| replacement | |||||
|
9011908801
|
9011908801
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
US $1.61 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $1.76 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $2.87 |
||
|
9017908195
|
9017908195
90179-08195 NUT |
90179-08195 |
US $3.40 |
||
|
9020108036
|
9020108036
90201-08036 WASHER |
90201-08036 |
US $3.40 |
||
|
9046110737
|
9046110737
90461-10737
CLAMP
|
90461-10737 |
— | ||
|
9056109014
|
9056109014
90561-09014 SPACER |
90561-09014 |
US $4.30 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
US $2.33 |
||
|
9151161055
|
9151161055
91511-61055 New Genuine Part |
91511-61055 |
US $2.48 |
||
| replacement | |||||
|
9151161055
|
9151161055
91512-61055 BOLT, FLANGE |
91512-61055 |
US $2.51 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
US $2.15 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
US $1.43 |
||
|
9165140840
|
9165140840
91651-40840 BOLT |
91651-40840 |
US $3.05 |
||
