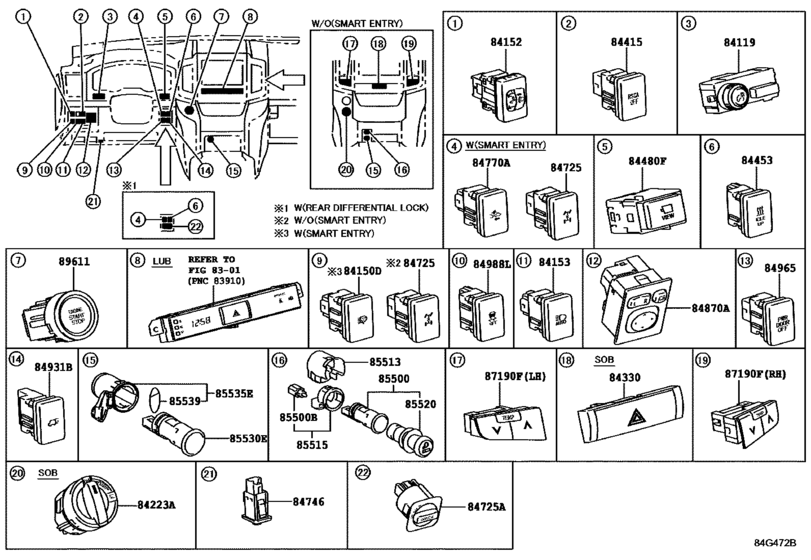

Switch & Relay & Computer ([08.2015 - ] INSTRUMENT PANEL 1/2 (1508- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- URJ200
- grade
- VX
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 200
- From
- 08.2015
- Gear Shift Type
- 8FC
- Seating Capacity
- 08S
- Vehicle Model
- Land Cruiser
- Model Mark
- G
- Back Door
- LUB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60140 Rheostat, Light Control[08.2015 -] URJ20#,VDJ200..VX,VXR |
84119-60140 |
from US $75.71 |
||
|
84150D
|
84150D
84150-33071 Switch Assy, Headlamp Cleaner[08.2015 -] URJ202..VX,VXR;VDJ200..(VX,VXR)..(ARL,GEN); URJ202..GXR..GCC;GRJ200,URJ200,VDJ200..08S..(5F,6FC,8FC)..GCC HEADLAMP CLEANER-WITH |
84150-33071 |
from US $35.96 |
||
|
84152
|
84152
84152-60080 Switch, Headlamp Leveling[08.2015 -] URJ20#..GCC;VDJ200..(VX,VXR)..GCC;GRJ200,VDJ200..(5F,6FC)..GXR..(GCC,GEN); URJ20#,VDJ200..VXR..GCC WITH(AVS); URJ20#,VDJ200..VX..GCC HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB); URJ20#,VDJ200..VX..GCC HEADLAMP LEVELING DEVICE-WITH(AUTO); |
84152-60080 |
US $45.57 |
||
|
84153
|
84153
84153-60040 Switch, Auto High Beam[08.2015 -] URJ20#,VDJ200..VXR..GCC; URJ20#,VDJ200..VX..GCC;URJ202,VDJ200..(VX,VXR)..(ARL,GEN) HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB); URJ20#,VDJ200..VX..GCC HEADLAMP LEVELING DEVICE-WITH(MANUAL) & WITH(*AHB) |
84153-60040 |
US $47.76 |
||
|
84415
|
84415
84415-60110 Switch, Curtain Airbag Cutoff[08.2015 - 08.2017] URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ20#,VDJ200..(VX,VXR)..GCC;VDJ200..6FC..(GX,VX, VXR)..(ARL,GEN); URJ200..VX SRS AIR BAG-*DRP; VDJ200..GXR..GCC;GRJ200,URJ202..LHD..(5F,6FC)..GXR SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT) |
84415-60110 |
US $35.96 |
||
|
84480F
|
84480F
84480-60160 Switch Assy, Main[08.2015 -] URJ20#,VDJ200..VX,VXR CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR) |
84480-60160 |
from US $34.94 |
||
|
84746
|
84746
84746-50010 Switch, Tire Pressure Warning[08.2016 - 08.2017] URJ200..VX GCC SPEC(UAE,BAHRAIN); URJ200..VX SAUDI ARABIA SPEC; URJ200..VX QATAR,OMAN SPEC; URJ200..VX KUWAIT SPEC; URJ200..VX YEMEN SPEC; URJ200..VX IRAQ,LEBANON SPEC; URJ200..VX LEBANON SPEC |
84746-50010 |
from US $28.97 |
||
|
84770A
|
84770A
84770-60020 Switch Assy, Pre-Collision System Cancel[08.2015 -] URJ20#,VDJ200..(VX,VXR)..(ARL,GCC) PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE |
84770-60020 |
US $35.96 |
||
|
84870A
|
84870A
84870-60190 Switch Assy, Outer Mirror[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..GEN;VDJ200..ARL..SOB STD; VDJ200..09S..SOB;VDJ200..ARL..SOB STD&OUTSIDE REAR |
84870-60190 |
US $54.16 |
||
|
84870A
|
84870A
84870-60200 Switch Assy, Outer Mirror[08.2015 - 08.2017] URJ202,VDJ200..6FC..GXR..(GCC,GEN);URJ20#,VDJ200..(05S,08S)..(GX,VX,VXR)..LUB OUTSIDE REAR VIEW MIRROR-*273&*RIF; URJ202,VDJ200..(VX,VXR)..(ARL,GEN) OUTSIDE REAR VIEW MIRROR-*273&*RIF&*AGM&*MIH&MEMORY; URJ20#,VDJ200..(VX,VXR)..(ARL,GCC |
84870-60200 |
US $76.35 |
||
|
84931B
|
84931B
84930-48101 Switch Assy, Door Control[08.2015 -] URJ20#,VDJ200..VX,VXR TAILGATE DOOR EASY CLOSER-WITH |
84930-48101 |
US $35.25 |
||
|
84965
|
84965
84962-42021 Switch, Power Back Door Main[08.2015 -] URJ20#,VDJ200..VX,VXR TAILGATE DOOR EASY CLOSER-WITH |
84962-42021 |
US $40.56 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..SOB;VDJ200..ARL..SOB STD; VDJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT |
85530-42010 |
from US $21 |
||
|
85535E
|
85535E
85535-48120-C0 Cover, Power Outlet Socket, No.2POWER OUTLET SOCKET [08.2015 -] GRJ200..GEN..LUB;VDJ200..LHD..09S..SOB;GRJ200..(05S,08S)..5F..GCC;URJ20#,VDJ200..L HD..(05S,08S) BLACK; VDJ200..LHD..09S..SOB STD,BLACK; VDJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT,BLACK |
85535-48120-C0 |
from US $4.69 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..SOB;VDJ200..ARL..SOB STD; VDJ200..09S..GCC..SOB ACCESSORY CONNECTOR-WITHOUT |
85539-60020 |
US $1.14 |
||
|
89611
|
89611
89611-42011 Switch, Push Start[08.2015 - 04.2016] GRJ200,URJ20#,VDJ200..LUB |
89611-42011 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-42012 Switch, Push Start[08.2015 - 04.2016] GRJ200,URJ20#,VDJ200..LUB |
89611-42012 |
from US $110.88 |
||
|
89611
|
89611
89611-42012 Switch, Push Start[05.2016 -] URJ202..GXR,VX;URJ202..LHD..VXR;GRJ200,URJ200,VDJ200..(05S,08S)..(5F,6FC,8FC)..LUB |
89611-42012 |
from US $110.88 |
||
