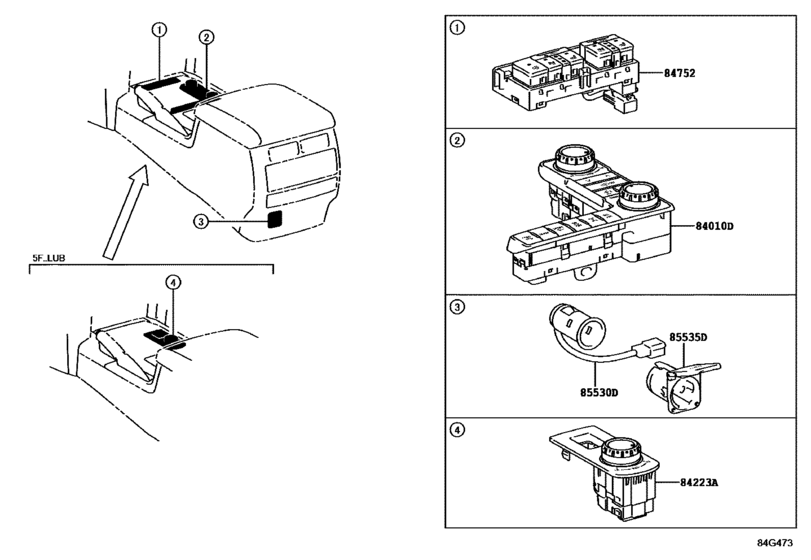

Switch & Relay & Computer ([08.2015 - ] INSTRUMENT PANEL 2/2 (1508- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- URJ200
- grade
- VX
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 200
- From
- 08.2015
- Gear Shift Type
- 8FC
- Seating Capacity
- 08S
- Vehicle Model
- Land Cruiser
- Model Mark
- G
- Back Door
- LUB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-60B80
Control & Panel Assy, Integration
[08.2015 -] URJ202..(VX,VXR)..GCC WITH(AVS)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY)&STEERING-WITH(POW ER STEERING & VGRS & VFC & AVS)&SUSPENSION-ACTIVE HEIGHT CONTROL; VDJ200..LHD..VXR..GEN WITH(AVS)&STEERING COLUMN-ELECTRIC TILT & TELESCOP |
84010-60B80 |
— | ||
|
84010D
|
84010D
84010-60F60
Control & Panel Assy, Integration
[08.2015 -] URJ20#..(VX,VXR)..GCC; URJ202..GEN;VDJ200..LHD..VX..GEN STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY); VDJ200..LHD..VXR..GEN STEERING COLUMN-ELECTRIC TILT & TELESCOPIC W/O(MEMORY)&W(VSC&*CRCO&*ATC&*CRCO&*MTS ); URJ202..GEN;VDJ200..LHD |
84010-60F60 |
— | ||
|
84010D
|
84010D
84010-60F70
Control & Panel Assy, Integration
[08.2015 -] URJ202..GEN;URJ202..GXR..GCC;VDJ200..LHD..(05S,08S)..6FC; URJ200..VX W(ABS) |
84010-60F70 |
— | ||
|
84752
|
84752
84752-60160
Switch, Refreshing Seat
[08.2015 -] URJ20#,VDJ200..(VX,VXR)..GCC SEAT AIR CONDITIONER-W(VENTILATION,DRIVER & PASSENGER) |
84752-60160 |
— | ||
|
85530D
|
85530D
85530-60390 Socket Assy, Power Outlet, No.2[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..SOB;GRJ200,VDJ200..05S..(ARL,GCC)..SOB STD |
85530-60390 |
US $25.33 |
||
|
85535D
|
85535D
85535-60110-A2 Cover, Power Outlet Socket, Center[08.2015 - 08.2017] VDJ200..09S..GCC..SOB;GRJ200,URJ20#,VDJ200..(05S,08S)..(5F,6FC,8FC)..LUB FLAXEN,TRIM0#; VDJ200..09S..GCC..SOB STD,FLAXEN,TRIM0# |
85535-60110-A2 |
US $9.92 |
||
|
85535D
|
85535D
85535-60110-C0 Cover, Power Outlet Socket, Center[08.2015 - 08.2017] URJ202..VX..ARL BLACK,TRIM2#,4#; VDJ200..VX,VXR;URJ202..LHD..VX;URJ202..GXR,VXR;VDJ200..GXR..(ARL,GCC);GRJ200,URJ20 0..(5F,8FC)..GCC..LUB BLACK,TRIM1#,2#,4# |
85535-60110-C0 |
US $6.12 |
