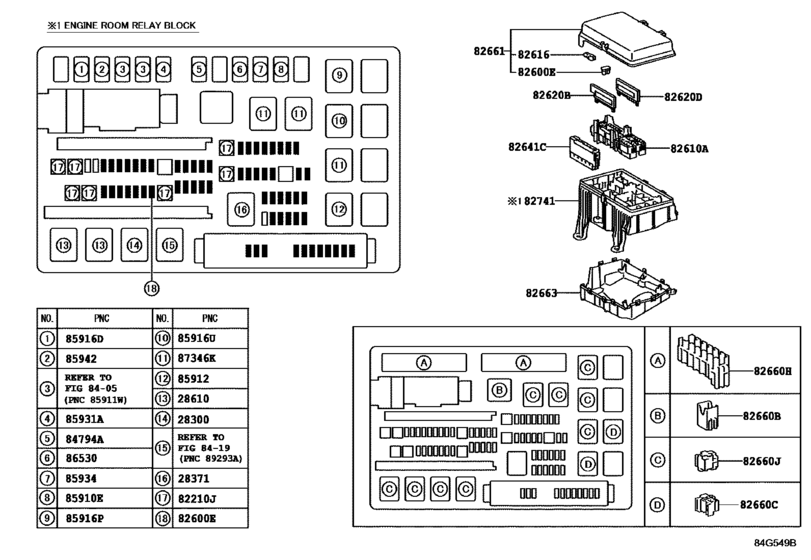

Switch & Relay & Computer ([08.2015 - ] ENGINE ROOM RELAY BLOCK (1508- )) Diagram Toyota LAND CRUISER
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- URJ202
- grade
- VX
- ENGINE
- 1URFE
- Model
- LAND CRUISER 200
- From
- 01.2012
- Seating Capacity
- 05S
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[01.2012 - 01.2013] 1URFE..URJ202 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[01.2012 - 01.2013] 1URFE..URJ202 |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
90987-02025 Relay[01.2013 - 08.2015] 1URFE..URJ202 |
90987-02025 |
from US $44.54 |
||
|
28371
|
28371
90987-02025 Relay[08.2015 -] 1VDFTV..VDJ200..RHD..VX;1URFE,1VDFTV..URJ202,VDJ200..LHD; 1VDFTV..VDJ200..LHD..08S..VXR HEATER-4SEAT INDEPENDENT CONTROL; 1VDFTV..VDJ200..LHD..08S..VXR HEATER-4SEAT INDEPENDENT CONTROL&SEAT COVER MATERIAL-FABRIC(MOQUETTE); 1VDFTV..VDJ200..RHD. |
90987-02025 |
from US $44.54 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82610A
|
82610A
82610-60120 Block Assy, Fuse[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82610-60120 |
from US $103.38 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[01.2012 - 08.2015] URJ202,VDJ200 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-60170 Block Assy, Fusible Link[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82620-60170 |
from US $30.14 |
||
|
82620D
|
82620D
82620-60190 Block Assy, Fusible Link[08.2015 -] URJ202 |
82620-60190 |
from US $28.10 |
||
|
82641C
|
82641C
82641-60090 Relay, Integration No.2[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82641-60090 |
from US $68.23 |
||
|
82660B
|
82660B
82660-0C100 Block Assy, Relay[01.2012 - 08.2015] URJ202,VDJ200 |
82660-0C100 |
US $7.86 |
||
|
82660C
|
82660C
82660-0H070 Block Assy, Relay[01.2012 - 08.2015] URJ202..LHD |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-60190
Block Assy, Relay
[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82660-60190 |
— | ||
|
82660H
|
82660H
82660-60200 Block Assy, Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82660-60200 |
US $20.82 |
||
|
82660J
|
82660J
82660-60270 Block Assy, Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82660-60270 |
US $4.80 |
||
|
82661
|
82661
82661-60350 Cover, Relay Block, No.1[01.2012 - 01.2013] URJ202 |
82661-60350 |
from US $35.67 |
||
|
82661
|
82661
82661-60351 Cover, Relay Block, No.1[01.2013 - 08.2015] URJ202 |
82661-60351 |
from US $41.07 |
||
|
82661
|
82661
82661-60400
Cover, Relay Block, No.1
[01.2013 - 08.2013] URJ202..LHD RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4,WI TH(OBD)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
82661-60400 |
— | ||
|
82661
|
82661
82661-60401
Cover, Relay Block, No.1
[08.2013 - 08.2015] URJ202..LHD RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4,WI TH(OBD)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR); URJ202..LHD SWITZERLAND SPEC&COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTME |
82661-60401 |
— | ||
|
82661
|
82661
82661-60440 Cover, Relay Block, No.1[08.2015 -] URJ202 |
82661-60440 |
from US $35.38 |
||
|
82663
|
82663
82663-0C060 Cover, Relay Block, Lower[01.2012 - 08.2015] URJ202,VDJ200 |
82663-0C060 |
from US $49.98 |
||
|
82663
|
82663
82663-60150 Cover, Relay Block, Lower[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82663-60150 |
from US $39.14 |
||
|
82741
|
82741
82741-60060 Block, Engine Room Relay[01.2012 - 05.2012] URJ202,VDJ200 |
82741-60060 |
US $113.65 |
||
|
82741
|
82741
82741-60061 Block, Engine Room Relay[06.2012 - 08.2015] URJ202,VDJ200 |
82741-60061 |
from US $100.68 |
||
|
82741
|
82741
82741-60070 Block, Engine Room Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82741-60070 |
from US $99.59 |
||
|
84794A
|
84794A
90987-02027 Relay[01.2012 - 08.2013] URJ202..LHD COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR); VDJ200..LHD COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR); URJ202,VDJ200..LHD INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
90987-02027 |
from US $33.62 |
||
|
85910E
|
85910E
90987-02027 Relay[01.2012 - 08.2015] URJ202..LHD FOR HEATER; URJ202..RHD HONG KONG SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5,WITH(OBD),FOR HEATER |
90987-02027 |
from US $33.62 |
||
|
85910E
|
85910E
90987-02028 Relay, Water Pump[01.2012 - 08.2015] URJ202..LHD FOR VALVE; URJ202..RHD HONG KONG SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5,WITH(OBD),FOR VALVE |
90987-02028 |
from US $44.54 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[01.2012 - 08.2015] URJ202,VDJ200 |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[01.2012 - 08.2015] URJ202,VDJ200; VDJ200..RHD SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT); VDJ200..LHD FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL); VDJ200..LHD FRONT FOG LAMP-WITHOUT |
90987-02027 |
from US $33.62 |
||
|
85916P
|
85916P
90987-02025 Relay[01.2012 - 08.2015] URJ202,VDJ200 |
90987-02025 |
from US $44.54 |
||
|
85916U
|
85916U
90987-02025 Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
90987-02025 |
from US $44.54 |
||
|
85931A
|
85931A
90987-04004 Relay, Starter Cut[01.2012 - 08.2015] URJ202,VDJ200 |
90987-04004 |
US $42.71 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[01.2012 - 08.2015] URJ202,VDJ200 |
90987-02028 |
from US $44.54 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[01.2012 - 08.2015] URJ202,VDJ200 |
85942-58010 |
from US $115.77 |
||
|
85942
|
85942
90987-02027 Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD; URJ202,VDJ200..05S..VX HEADLAMP CLEANER-WITHOUT |
90987-02027 |
from US $33.62 |
||
|
86530
|
86530
90987-02027 Relay[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
90987-02027 |
from US $33.62 |
||
|
87346K
|
87346K
90987-02025 Relay[01.2012 - 08.2014] URJ202..05S COLD SPEC; URJ202..05S COLD SPEC&WITH(COOL BOX) |
90987-02025 |
from US $44.54 |
||
