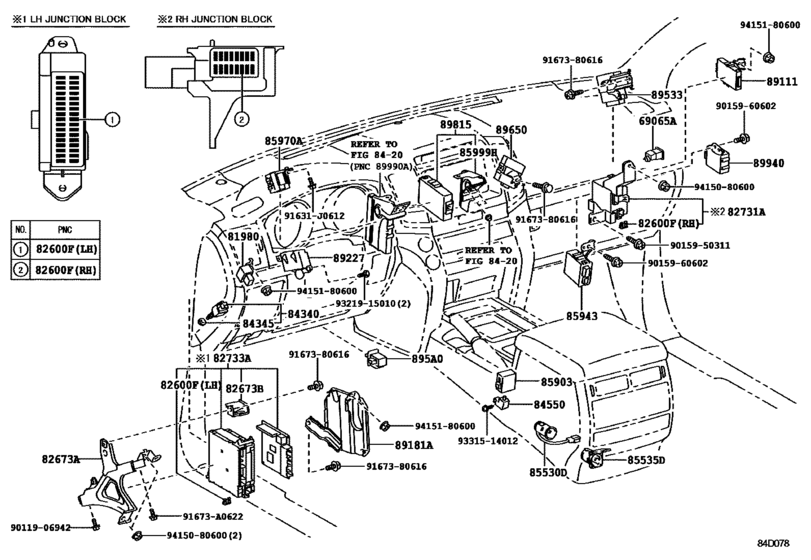

Switch & Relay & Computer ([01.2012 - 08.2015] COWL (1201-1508)LHD) Diagram Toyota LAND CRUISER
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- URJ202
- grade
- VX
- ENGINE
- 1URFE
- Model
- LAND CRUISER 200
- From
- 01.2012
- Seating Capacity
- 05S
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-60011 Relay Assy, Stop Lamp Control[01.2012 - 08.2015] URJ202,VDJ200..LHD |
895A0-60011 |
US $78.04 |
||
|
895A0
|
895A0
895A0-60050
Relay Assy, Stop Lamp Control
[08.2015 -] URJ202,VDJ200..LHD |
895A0-60050 |
— | ||
|
69065A
|
69065A
69065-12460 Cylinder Sub-Assy, Air Bag Cut Off Switch[08.2012 - 08.2015] URJ202,VDJ200 |
69065-12460 |
US $38.88 |
||
|
69065A
|
69065A
69065-47040
Cylinder Sub-Assy, Air Bag Cut Off Sw
[01.2012 - 07.2012] URJ202,VDJ200 |
69065-47040 |
— | ||
|
81980
|
81980
81980-60110 Flasher Assy, Turn SignalTURN SIGNAL [01.2012 - 08.2015] URJ202,VDJ200..LHD |
81980-60110 |
US $62.21 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 5A,MINI FUSE,RH,LH |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 7.5A,MINI FUSE,RH,LH |
90982-09020 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[01.2012 - 08.2015] URJ202,VDJ200 10A,MINI FUSE,RH,LH |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 15A,MINI FUSE,RH,LH |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 20A,MINI FUSE,RH,LH |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 25A,MINI FUSE,LH |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[01.2012 - 08.2015] URJ202,VDJ200 30A,MINI FUSE,RH,LH |
90982-09025 |
from US $0.88 |
||
|
82673A
|
82673A
82673-60040
Bracket, Junction Block
[01.2012 - 08.2015] URJ202,VDJ200..LHD |
82673-60040 |
— | ||
|
82673A
|
82673A
82702-60050
Bracket, Junction Block
[08.2015 -] URJ202,VDJ200..LHD |
82702-60050 |
— | ||
|
82673B
|
82673B
82673-60060
Bracket, Junction Block
[01.2012 - 08.2015] URJ202,VDJ200..LHD |
82673-60060 |
— | ||
|
82673B
|
82673B
82817-60V00
Bracket, Junction Block
[08.2015 -] URJ202,VDJ200..LHD |
82817-60V00 |
— | ||
|
82731A
|
82731A
82731-60252
Block, Cowl Side Junction, Rh
[01.2012 - 12.2012] URJ202,VDJ200..LHD |
82731-60252 |
— | ||
| replacement | |||||
|
82731A
|
82731A
82731-60253 Block, Cowl Side Junction, Rh[01.2012 - 12.2012] URJ202,VDJ200..LHD |
82731-60253 |
US $182 |
||
|
82731A
|
82731A
82731-60253 Block, Cowl Side Junction, Rh[01.2013 - 08.2015] URJ202,VDJ200..LHD |
82731-60253 |
US $182 |
||
|
82731A
|
82731A
82731-60290
Block, Cowl Side Junction, Rh
[08.2015 -] URJ202,VDJ200..LHD |
82731-60290 |
— | ||
|
82733A
|
82733A
82733-60J51
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202,VDJ200..LHD BELGIUM SPEC |
82733-60J51 |
— | ||
|
82733A
|
82733A
82733-60J71
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202,VDJ200..LHD FRANCE SPEC OR SPAIN SPEC |
82733-60J71 |
— | ||
|
82733A
|
82733A
82733-60J91
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202,VDJ200..LHD GERMANY SPEC; URJ202,VDJ200..LHD SWITZERLAND SPEC; URJ202,VDJ200..LHD AUSTRIA SPEC |
82733-60J91 |
— | ||
|
82733A
|
82733A
82733-60K21
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202..LHD NEW CALEDONIA SPEC |
82733-60K21 |
— | ||
|
82733A
|
82733A
82733-60K31
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202..LHD SOUTH AMERICA SPEC |
82733-60K31 |
— | ||
|
82733A
|
82733A
82733-60K41
Block, Cowl Side Junction, Lh
[01.2012 - 01.2013] URJ202,VDJ200..LHD |
82733-60K41 |
— | ||
|
82733A
|
82733A
82733-60P40
Block, Cowl Side Junction, Lh
[08.2015 - 06.2016] URJ202,VDJ200 |
82733-60P40 |
— | ||
| replacement | |||||
|
82733A
|
82733A
82733-60P41 Block, Cowl Side Junction, Lh[08.2015 - 06.2016] URJ202,VDJ200 |
82733-60P41 |
US $190.44 |
||
|
82733A
|
82733A
82733-60P41 Block, Cowl Side Junction, Lh[07.2016 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
82733-60P41 |
US $190.44 |
||
|
82733A
|
82733A
82733-60S50
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202,VDJ200..LHD BELGIUM SPEC |
82733-60S50 |
— | ||
|
82733A
|
82733A
82733-60S70
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202,VDJ200..LHD FRANCE SPEC OR SPAIN SPEC |
82733-60S70 |
— | ||
|
82733A
|
82733A
82733-60S90
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202,VDJ200..LHD GERMANY SPEC; URJ202,VDJ200..LHD SWITZERLAND SPEC; URJ202,VDJ200..LHD AUSTRIA SPEC |
82733-60S90 |
— | ||
|
82733A
|
82733A
82733-60T00
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202,VDJ200..LHD RUSSIA SPEC |
82733-60T00 |
— | ||
|
82733A
|
82733A
82733-60T20
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202..LHD NEW CALEDONIA SPEC |
82733-60T20 |
— | ||
|
82733A
|
82733A
82733-60T30
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202..LHD SOUTH AMERICA SPEC |
82733-60T30 |
— | ||
|
82733A
|
82733A
82733-60T40
Block, Cowl Side Junction, Lh
[01.2013 - 08.2013] URJ202,VDJ200..LHD |
82733-60T40 |
— | ||
|
82733A
|
82733A
82733-6A160
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD UKRAINE SPEC |
82733-6A160 |
— | ||
|
82733A
|
82733A
82733-6A161
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD UKRAINE SPEC |
82733-6A161 |
— | ||
|
82733A
|
82733A
82733-6A170
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD NORWAY,DENMARK,SWEDEN,FINLAND SPEC |
82733-6A170 |
— | ||
|
82733A
|
82733A
82733-6A171
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD NORWAY,DENMARK,SWEDEN,FINLAND SPEC |
82733-6A171 |
— | ||
|
82733A
|
82733A
82733-6A200
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD SWITZERLAND SPEC |
82733-6A200 |
— | ||
|
82733A
|
82733A
82733-6A201
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD SWITZERLAND SPEC |
82733-6A201 |
— | ||
|
82733A
|
82733A
82733-6A210
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD AUSTRIA SPEC |
82733-6A210 |
— | ||
|
82733A
|
82733A
82733-6A211
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD AUSTRIA SPEC |
82733-6A211 |
— | ||
|
82733A
|
82733A
82733-6A550
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD BELGIUM SPEC |
82733-6A550 |
— | ||
|
82733A
|
82733A
82733-6A551
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD BELGIUM SPEC |
82733-6A551 |
— | ||
|
82733A
|
82733A
82733-6A570
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD FRANCE SPEC OR SPAIN SPEC |
82733-6A570 |
— | ||
|
82733A
|
82733A
82733-6A571
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD FRANCE SPEC OR SPAIN SPEC |
82733-6A571 |
— | ||
|
82733A
|
82733A
82733-6A580
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD RUSSIA SPEC |
82733-6A580 |
— | ||
|
82733A
|
82733A
82733-6A581
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD RUSSIA SPEC |
82733-6A581 |
— | ||
|
82733A
|
82733A
82733-6A600
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202..LHD NEW CALEDONIA SPEC |
82733-6A600 |
— | ||
|
82733A
|
82733A
82733-6A601
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202..LHD NEW CALEDONIA SPEC |
82733-6A601 |
— | ||
|
82733A
|
82733A
82733-6A610
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202..LHD SOUTH AMERICA SPEC |
82733-6A610 |
— | ||
|
82733A
|
82733A
82733-6A611
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202..LHD SOUTH AMERICA SPEC |
82733-6A611 |
— | ||
|
82733A
|
82733A
82733-6A620
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD |
82733-6A620 |
— | ||
|
82733A
|
82733A
82733-6A621
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD |
82733-6A621 |
— | ||
|
82733A
|
82733A
82733-6A630
Block, Cowl Side Junction, Lh
[08.2013 - 11.2013] URJ202,VDJ200..LHD GERMANY SPEC |
82733-6A630 |
— | ||
|
82733A
|
82733A
82733-6A631
Block, Cowl Side Junction, Lh
[11.2013 - 08.2015] URJ202,VDJ200..LHD GERMANY SPEC |
82733-6A631 |
— | ||
|
84340
|
84340
84340-39015 Switch Assy, Stop Lamp[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
84340-39015 |
from US $24.39 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[01.2012 - 08.2015] URJ202,VDJ200 |
84340-69075 |
from US $27.01 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[01.2012 - 08.2015] URJ202,VDJ200 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[01.2012 - 08.2015] URJ202,VDJ200..LHD |
84550-16060 |
from US $17.48 |
||
|
85530D
|
85530D
85530-60110 Socket Assy, Power Outlet, No.2[01.2012 - 08.2015] URJ202,VDJ200 |
85530-60110 |
US $30.40 |
||
|
85530D
|
85530D
85530-60390 Socket Assy, Power Outlet, No.2[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
85530-60390 |
US $25.33 |
||
|
85535D
|
85535D
85535-60110-A0 Cover, Power Outlet Socket, Center[01.2012 - 08.2015] URJ202,VDJ200 SHELL,TRIM0# |
85535-60110-A0 |
from US $5.68 |
||
|
85535D
|
85535D
85535-60110-A2 Cover, Power Outlet Socket, Center[08.2015 - 08.2017] VDJ200..RHD..VX;URJ202,VDJ200..LHD FLAXEN,TRIM0# |
85535-60110-A2 |
US $9.92 |
||
|
85535D
|
85535D
85535-60110-C0 Cover, Power Outlet Socket, Center[01.2012 - 08.2015] VDJ200 BLACK,TRIM1#,2#; URJ202 BLACK,TRIM2# |
85535-60110-C0 |
from US $6.12 |
||
|
85903
|
85903
85903-52020 Computer Sub-Assy, Shift Lock Control[01.2012 - 08.2015] URJ202,VDJ200 |
85903-52020 |
from US $48.03 |
||
|
85943
|
85943
85943-60050 Computer, Windshield WiperWINDSHIELD WIPER [01.2012 - 08.2015] URJ202,VDJ200..LHD INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
85943-60050 |
from US $146.76 |
||
|
85970A
|
85970A
85970-60070
Relay Assy, Double Lock Door Control
[01.2012 - 08.2015] VDJ200;URJ202..LHD; VDJ200..RHD SOUTH AFRICA SPEC; URJ202..LHD NEW CALEDONIA SPEC; URJ202..LHD SOUTH AMERICA SPEC |
85970-60070 |
— | ||
|
85970A
|
85970A
85970-60080
Relay Assy, Double Lock Door Control
[08.2015 -] URJ202,VDJ200..LHD; URJ202..VX NEW CALEDONIA SPEC; URJ202 SOUTH AMERICA SPEC |
85970-60080 |
— | ||
|
85999H
|
85999H
85999-60140
Bracket, Relay
[01.2012 - 08.2015] URJ202,VDJ200..LHD PRE-COLLISION SYSTEM-INTERLOCKING BRAKE |
85999-60140 |
— | ||
|
89111
|
89111
89100-60030
Computer, Network Gateway
[08.2015 - 02.2016] URJ202;VDJ200..LHD..VXR;VDJ200..LHD..08S..VX; VDJ200..LHD..08S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&FR ONT SEAT-MANUAL(SEPARATE SEAT)&REAR NO.2 SEAT-WITHOUT; VDJ200..LHD..08S..VX SUSPENSI |
89100-60030 |
— | ||
|
89111
|
89111
89100-60031
Computer, Network Gateway
[03.2016 -] URJ202;VDJ200..LHD..VXR;VDJ200..LHD..08S..VX; VDJ200..LHD..08S..VXR SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&FR ONT SEAT-MANUAL(SEPARATE SEAT)&REAR NO.2 SEAT-WITHOUT; VDJ200..LHD..08S..VX SUSPENSION-FRONT |
89100-60031 |
— | ||
|
89111
|
89111
89111-60080
Computer, Network Gateway
[01.2012 - 06.2014] URJ202,VDJ200..LHD |
89111-60080 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-60110
Computer, Network Gateway
[01.2012 - 06.2014] URJ202,VDJ200..LHD |
89111-60110 |
— | ||
|
89111
|
89111
89111-60110
Computer, Network Gateway
[07.2014 - 08.2015] URJ202,VDJ200..LHD |
89111-60110 |
— | ||
|
89181A
|
89181A
89181-60080 Computer, Steering Control[01.2012 - 08.2015] VDJ200..LHD STEERING-WITH(POWER STEERING & VGRS); VDJ200..LHD STEERING-WITH(POWER STEERING & VGRS & VFC); URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
89181-60080 |
US $1,015.13 |
||
|
89181A
|
89181A
89181-60110 Computer, Steering Control[08.2015 -] URJ202,VDJ200..LHD STEERING-WITH(POWER STEERING & VGRS); VDJ200..LHD STEERING-WITH(POWER STEERING & VGRS & VFC); URJ202..VXR;VDJ200..05S..VXR STEERING-WITH(POWER STEERING & VGRS & VFC & AVS) |
89181-60110 |
US $919.83 |
||
|
89227
|
89227
89227-50130 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [01.2012 - 08.2015] URJ202;VDJ200..RHD; VDJ200..RHD ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(R EPAIR KIT); VDJ200..RHD IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(R EPAIR KIT); V |
89227-50130 |
US $315.95 |
||
|
89227
|
89227
89227-60090 Computer, Multiplex Tilt & Telescopic[08.2015 -] URJ202;VDJ200..RHD..VX;VDJ200..LHD..VXR; VDJ200..RHD..VX ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(R EPAIR KIT); VDJ200..RHD..VX IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & |
89227-60090 |
US $235.87 |
||
|
89533
|
89533
89533-60242
Computer, 4 Wheel Drive Control
[01.2012 - 08.2015] URJ202,VDJ200 |
89533-60242 |
— | ||
| replacement | |||||
|
89533
|
89533
89533-60390 Computer, 4 Wheel Drive Control[01.2012 - 08.2015] URJ202,VDJ200 |
89533-60390 |
from US $304.20 |
||
|
89533
|
89533
89533-60310 Computer, 4 Wheel Drive Control[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
89533-60310 |
from US $274.27 |
||
|
89815
|
89815
89815-60130
Computer, Seat Belt Control
[01.2012 - 08.2015] URJ202,VDJ200..LHD PRE-COLLISION SYSTEM-INTERLOCKING BRAKE |
89815-60130 |
— | ||
|
89940
|
89940
89940-60120
Computer Assy, Headlamp Swivel
[01.2012 - 08.2015] URJ202,VDJ200..LHD |
89940-60120 |
— | ||
|
89940
|
89940
89940-60130
Computer Assy, Headlamp Swivel
[01.2012 - 08.2015] URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
89940-60130 |
— | ||
|
89940
|
89940
89940-60280
Computer Assy, Headlamp Swivel
[11.2013 - 08.2015] URJ202,VDJ200..LHD HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB) |
89940-60280 |
— | ||
|
89940
|
89940
89940-60290
Computer Assy, Headlamp Swivel
[11.2013 - 08.2015] URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL&HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB) |
89940-60290 |
— | ||
|
89940
|
89940
89940-60300
Computer Assy, Headlamp Swivel
[08.2015 -] URJ202,VDJ200..LHD |
89940-60300 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
91673A0622
|
91673A0622
91673-A0622 BOLT FLANGE |
91673-A0622 |
US $0.96 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
